HP G60 Maintenance And Service Guide

Removal and replacement procedures 4–21
2. Turn the computer display-side up, with the front toward you.
3. Open the computer as far as possible.

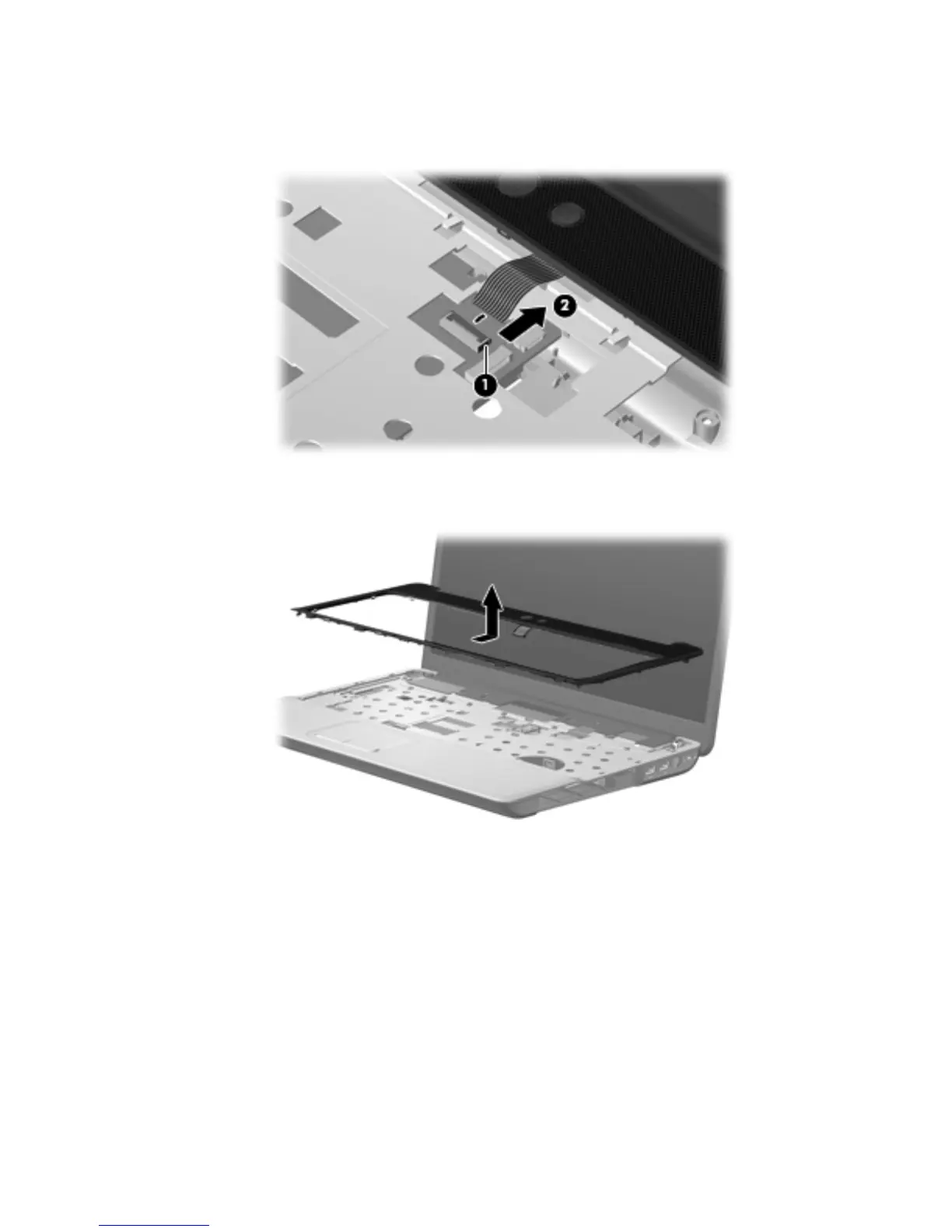

4. Release the ZIF connector 1 to which the power button board cable is attached, and disconnect the power
button board cable 2 from the system board.
5. Slide the keyboard cover toward the display panel until it disengages from the top cover, and then lift up to
remove the keyboard cover.
Reverse this procedure to install the keyboard cover.

HP G60 Specifications

General

Wireless	802.11b/g WLAN
Audio	Altec Lansing speakers
Display	15.6-inch HD BrightView (1366x768)
Optical Drive	DVD±RW DL LightScribe
Battery	6-cell Lithium-Ion
Ports	3 x USB 2.0, 1 x HDMI, 1 x VGA, 1 x Headphone, 1 x Microphone
Webcam	Integrated webcam
Processor	Intel or AMD (various models available)
RAM	4GB DDR2
Graphics	Intel GMA 4500MHD or NVIDIA GeForce 8200M G
Weight	Starting at 2.75 kg
