HP HDX 18 - Page 109

Screw listing 7–7
Where used:

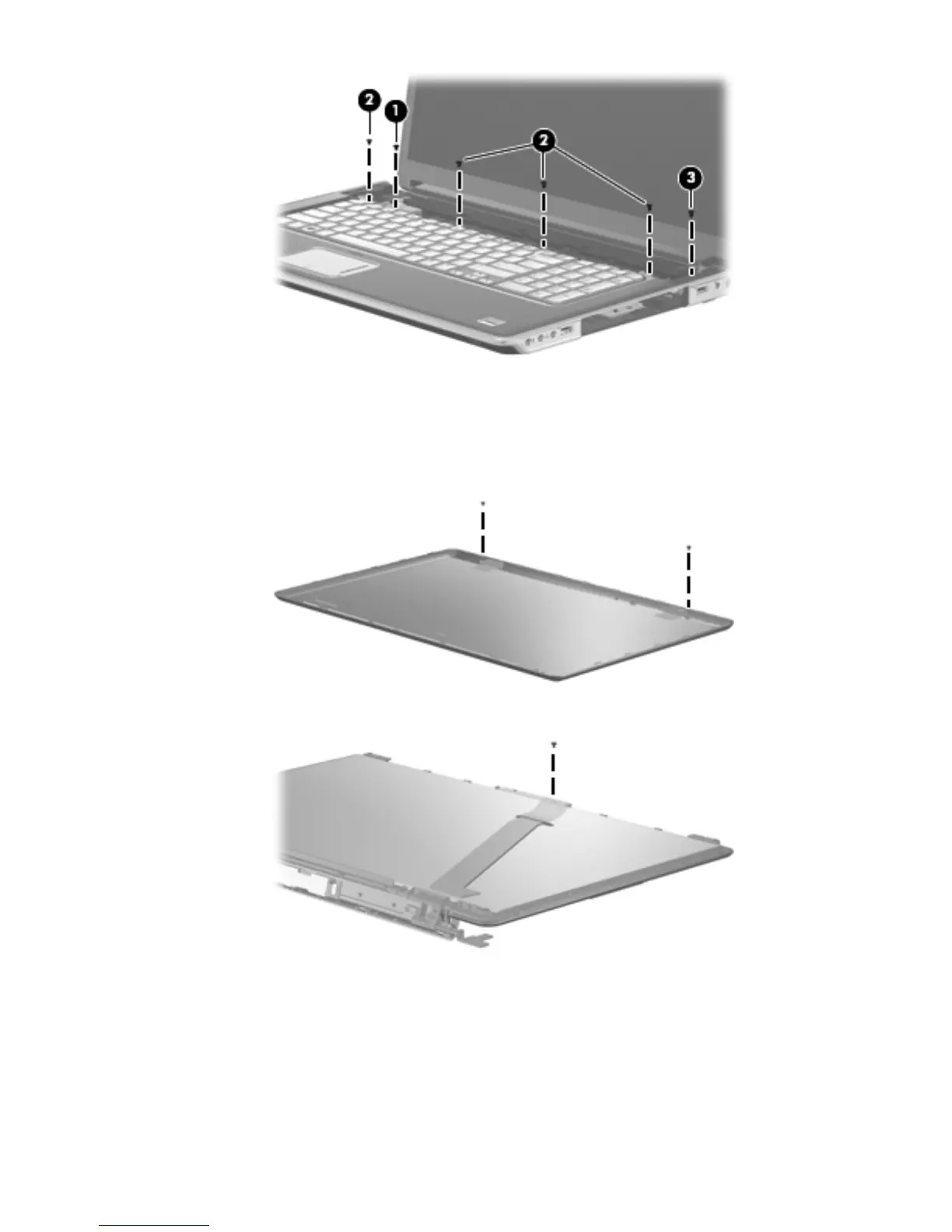

1 One screw that secures the Bluetooth module to the top cover
2 Four screws that secure the keyboard to the computer
3 One screw that secures the speaker assembly to the computer
Where used: 2 screws that secure the wireless antenna transceivers to the display enclosure
Where used: One screw that secures the webcam/microphone module to the display panel
