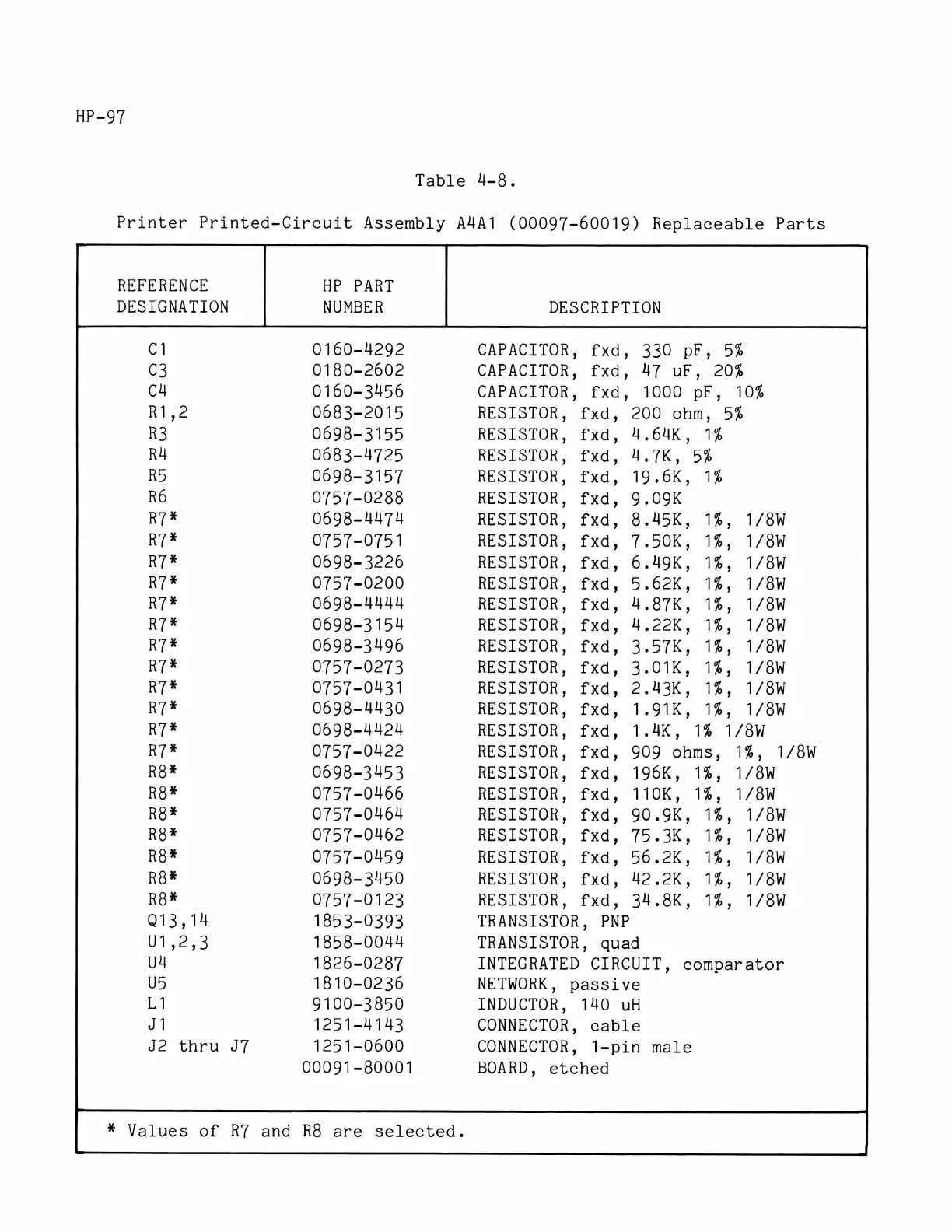

Table 4-8.
Printer Printed-Circuit Assembly A4A1 (00097-60019) Replaceable Parts
REFERENCE HP PART
DESIGNATION NUMBER DESCRIPTION
C1 0160-4292 CAPACITOR, fxd, 330 pF, 5%
C3 0180-2602 CAPACITOR, fxd, 47 uF, 20%
cy 0160-3456 CAPACITOR, fxd, 1000 pF, 10%
R1,2 0683-2015 RESISTOR, fxd, 200 ohm, 5%
R3 0698-3155 RESISTOR, fxd, 4.64K, 1%
RY
0683-4725
RESISTOR,
fxd,
4.7K,
5%
RS 0698-3157 RESISTOR, fxd, 19.6K, 1%
R6 0757-0288 RESISTOR, fxd, 9.09K
R7* 0698-LLTY RESISTOR, fxd, 8.45K, 1%, 1/8W
RT* 0757-0751 RESISTOR, fxd, 7.50K, 1%, 1/8W
R7 % 0698-3226 RESISTOR, fxd, 6.49K, 1%, 1/8W
R7 * 0757-0200 RESISTOR, fxd, 5.62K, 1%, 1/8W
RT7* 0698- 4414y RESISTOR, fxd, 4.87K, 1%, 1/8W
R7 % 0698-3154 RESISTOR, fxd, 4.22K, 1%, 1/8W
R7 ¥ 0698-3496 RESISTOR, fxd, 3.57K, 1%, 1/8W
R7* 0757-0273 RESISTOR, fxd, 3.01K, 1%, 1/8W
R7* 0757-0431 RESISTOR, fxd, 2.43K, 1%, 1/8W
R7 ¥ 0698-4430 RESISTOR, fxd, 1.91K, 1%, 1/8W
R7* 0698-LU42Y RESISTOR, fxd, 1.4K, 1% 1/8W
R7* 0757-0422 RESISTOR, fxd, 909 ohms, 1%, 1/8W
R8* 0698-3453 RESISTOR, fxd, 196K, 1%, 1/8W
R8 ¥ 0757-0466 RESISTOR, fxd, 110K, 1%, 1/8W
R8* 0757-0L464 RESISTOR, fxd, 90.9K, 1%, 1/8W
R8* 0757-0462 RESISTOR, fxd, 75.3K, 1%, 1/8W
R§* 0757-0459 RESISTOR, fxd, 56.2K, 1%, 1/8W
R8* 0698-3450 RESISTOR, fxd, 42.2K, 1%, 1/8W
R8* 0757-0123 RESISTOR, fxd, 34.8K, 1%, 1/8W
Q13,14 1853-0393 TRANSISTOR, PNP
u1,2,3 1858-0044 TRANSISTOR, quad
uy 1826-0287 INTEGRATED CIRCUIT, comparator
us 1810-0236 NETWORK, passive
L1 9100-3850 INDUCTOR, 140 uH
J1 1251-4143 CONNECTOR, cable
J2 thru J7 1251-0600 CONNECTOR, 1-pin male
00091-80001 BOARD, etched
¥ Values of R7 and R8 are selected.
