HP JD320B Installation Guide

51
Type
Description
Category 5e
Suitable for data transmission at a maximum speed of 1000 Mbps, with a
bandwidth of 100 MHz.
Category 6
Suitable for data transmission at a speed higher than 1 Gbps, with a bandwidth of
250 MHz.
Based on pinouts
Ethernet twisted pair cables can be classified into straight through and crossover cables based on their
pinouts.
 Straight-through: The pinouts at both ends comply with standard 568B. See Figure 47.
 Crossover: The pinouts at one end comply with standard 568B, and those at the other end comply with
standard 568A. See Figure 48.

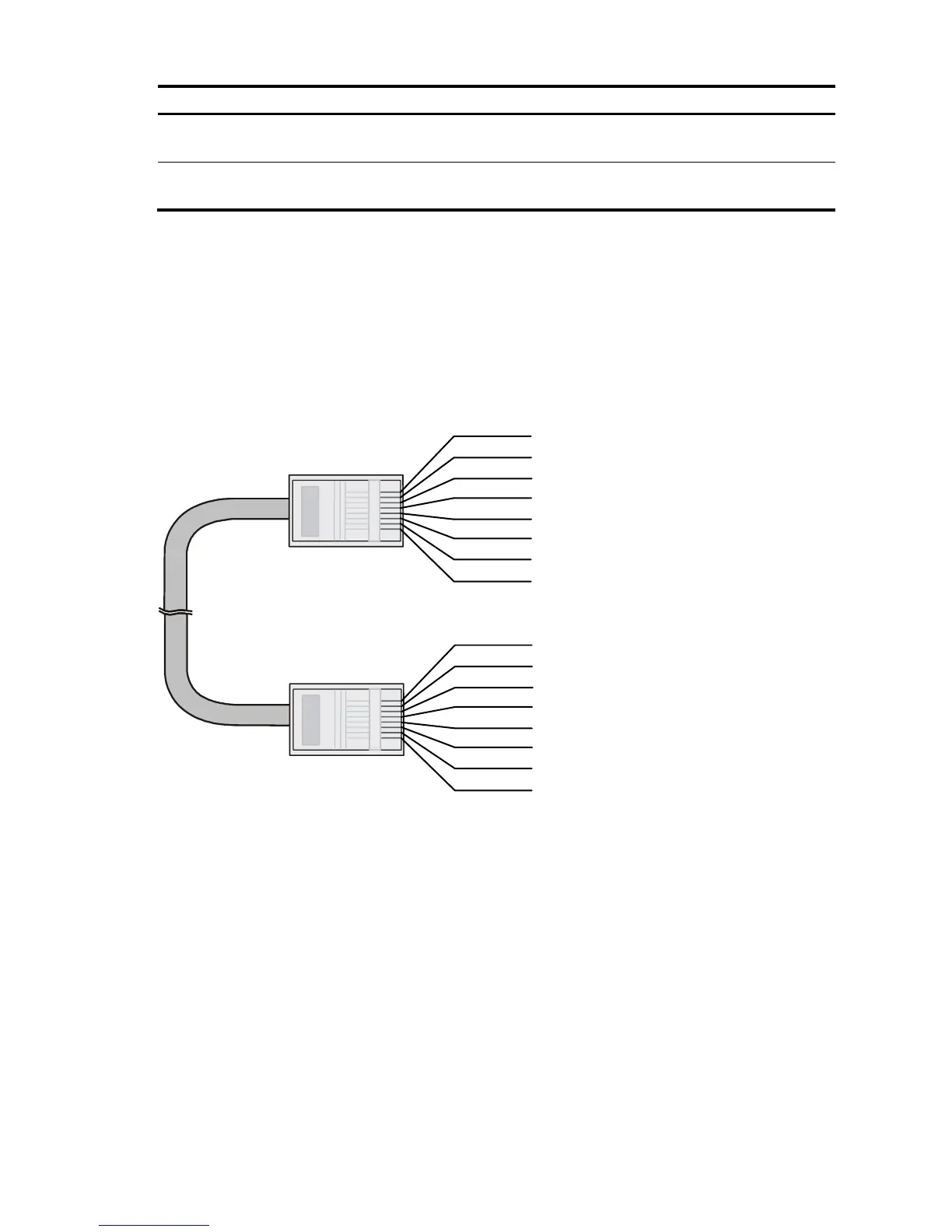

Figure 47 Straight-through cable
Straight-through cable
white/orange
orange
white/green
blue
white/blue
green
white/brown
brown
1
2
3
4
5
6
7
8
white/orange
orange
white/green
blue
white/blue
green
white/brown
brown
1
2
3
4
5
6
7
8
