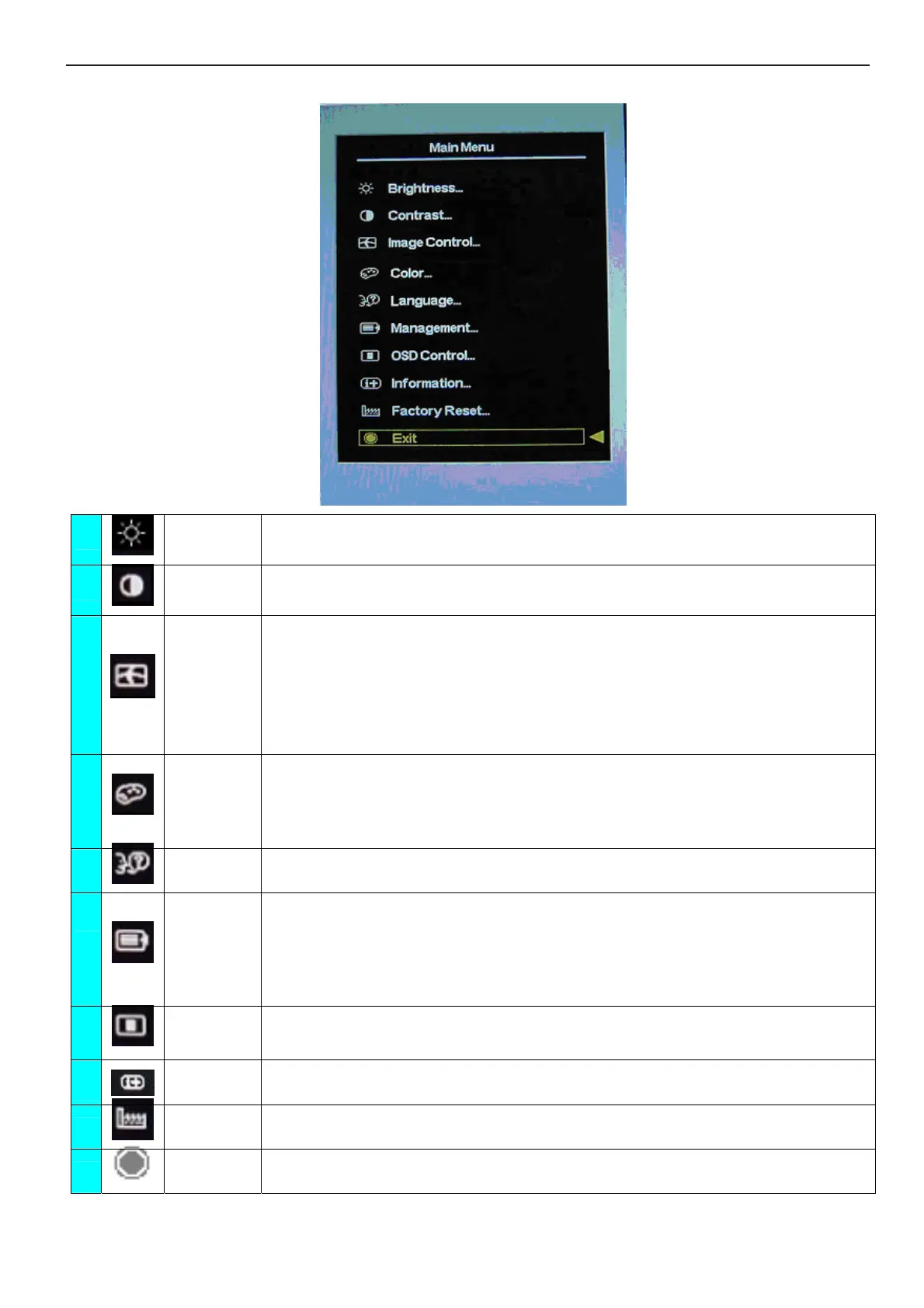

3.3 Adjust the Picture
1.
Brightness
Adjust the brightness.
2. Contrast Adjust the contrast
3.
Control
Adjust the:
z Auto Adjustment: Adjusts the main settings and produces a stable, centered image.
z H-Position: horizontal position of the screen image.
z V-Position: vertical position of the screen image.
z Clock: frequency of the pixel clock to minimize vertical bar.
z Phase: phase value to minimize horizontal jitters.
4. Color
z 9300K: recall 9300K color
z 6500K: recall 6500K color
z SRGB: recall SRGB color
z Custom Color: adjusts the color tint of white, and the red, green, and blue (RGB) mix
for colors.
5. Language Shows the language of the OSD window.
6.
Management
z Power Saver: enable/disable power saving
z Power On Recall: enable/disable power recall
z Mode Display: enable/disable mode display
z Sleep Timer: set sleep timer
z Basic Menu: set to basic menu
7.
OSD Control
OSD (on Screen Display) settings: adjusts the H/V position, timeout, On Screen Display
window.
8.
Information Current setting, recommended setting, serial number, total hours, backlight hours, Exit.
9.
Factory
Reset
Resets the display to original factory settings for color, brightness, phase, and clock.
10. Exit Exit the current OSD window.

HP L1506 Specifications

General

3D	No
Pixel pitch	0.297 x 0.297 mm
Aspect ratio	4:3
Response time	8 ms
Display diagonal	15 \
Display resolution	1024 x 768 pixels
Vertical scan range	56 - 76 Hz
Horizontal scan range	30 - 61 kHz
Viewing angle, vertical	100 °
Contrast ratio (dynamic)	-
Contrast ratio (typical)	450:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	130 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	720 x 400, 832 x 624, 1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA)
On/off switch	Yes
DVI-D ports quantity	0
Tilt angle range	-5 - 30 °
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	23 W
Power consumption (standby)	2 W
Power consumption (typical)	21 W
Certification	CISPR, VCCI, CSA, TUV, GS, CCC, MIC, FCC, UL, GOST, SASO
Product color	Silver
Country of origin	China
Market positioning	Business
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	5 - 90 %
Package weight	4500 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	203 mm
Height (with stand)	355 mm
Weight (with stand)	3200 g
Depth (without stand)	60 mm
Width (without stand)	340 mm
Height (without stand)	290 mm
Weight (without stand)	- g
