17" LCD Color Monitor HP L1710
19

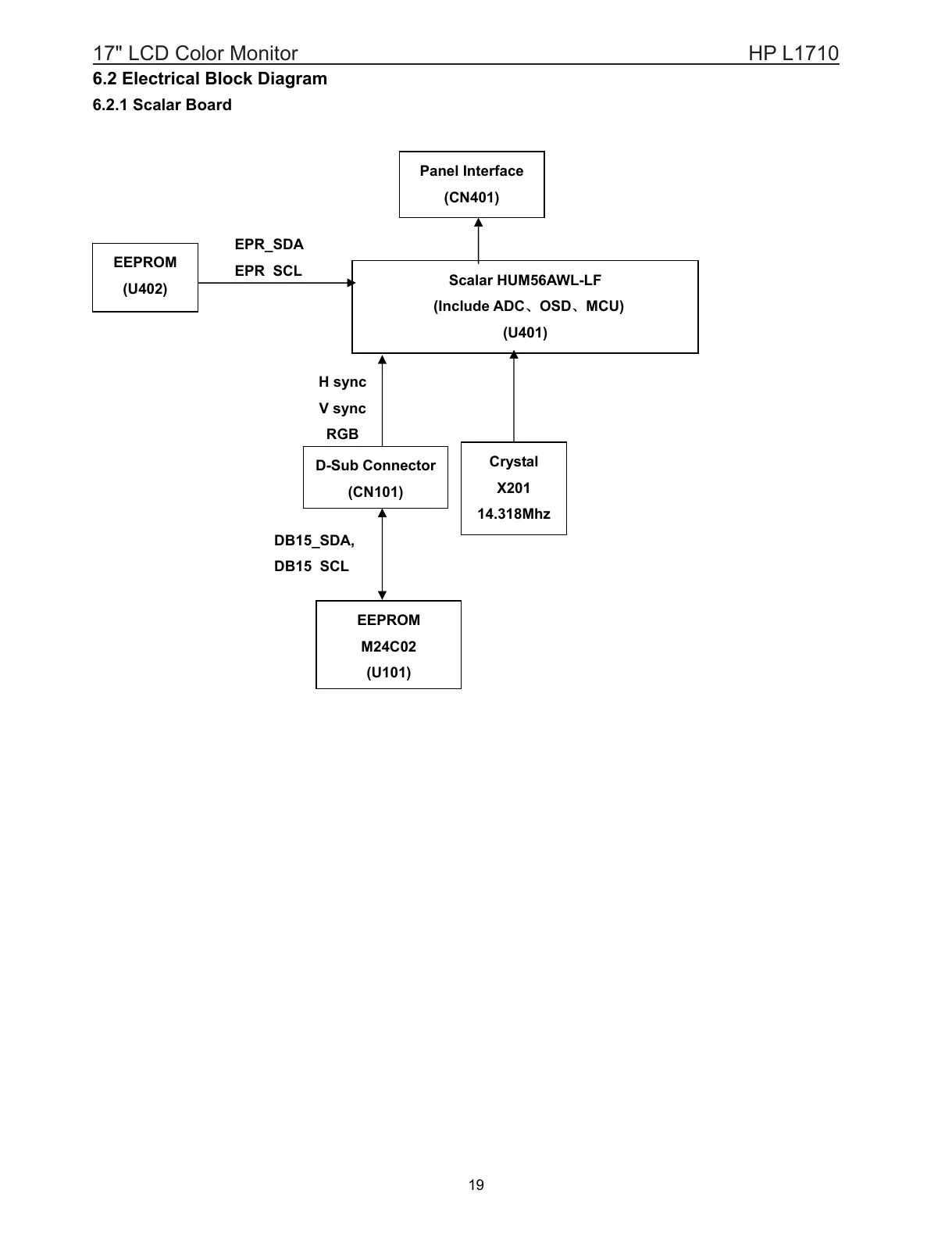

6.2 Electrical Block Diagram
6.2.1 Scalar Board
Scalar HUM56AWL-LF
(Include ADC、OSD、MCU)
(U401)
EEPROM
(U402)
D-Sub Connector
(CN101)
EPR_SDA
EPR SCL
Panel Interface
(CN401)
EEPROM
M24C02
(U101)
DB15_SDA,
DB15 SCL
H sync
V sync
RGB
Crystal
X201
14.318Mhz
