3.
To mount the monitor to a swing arm, wall or other mounting fixture using the HP Quick Release,
secure the HP Quick Release to the mounting fixture or wall (1) then slide the monitor all the way
down onto the HP Quick Release so that it clicks in place (2).

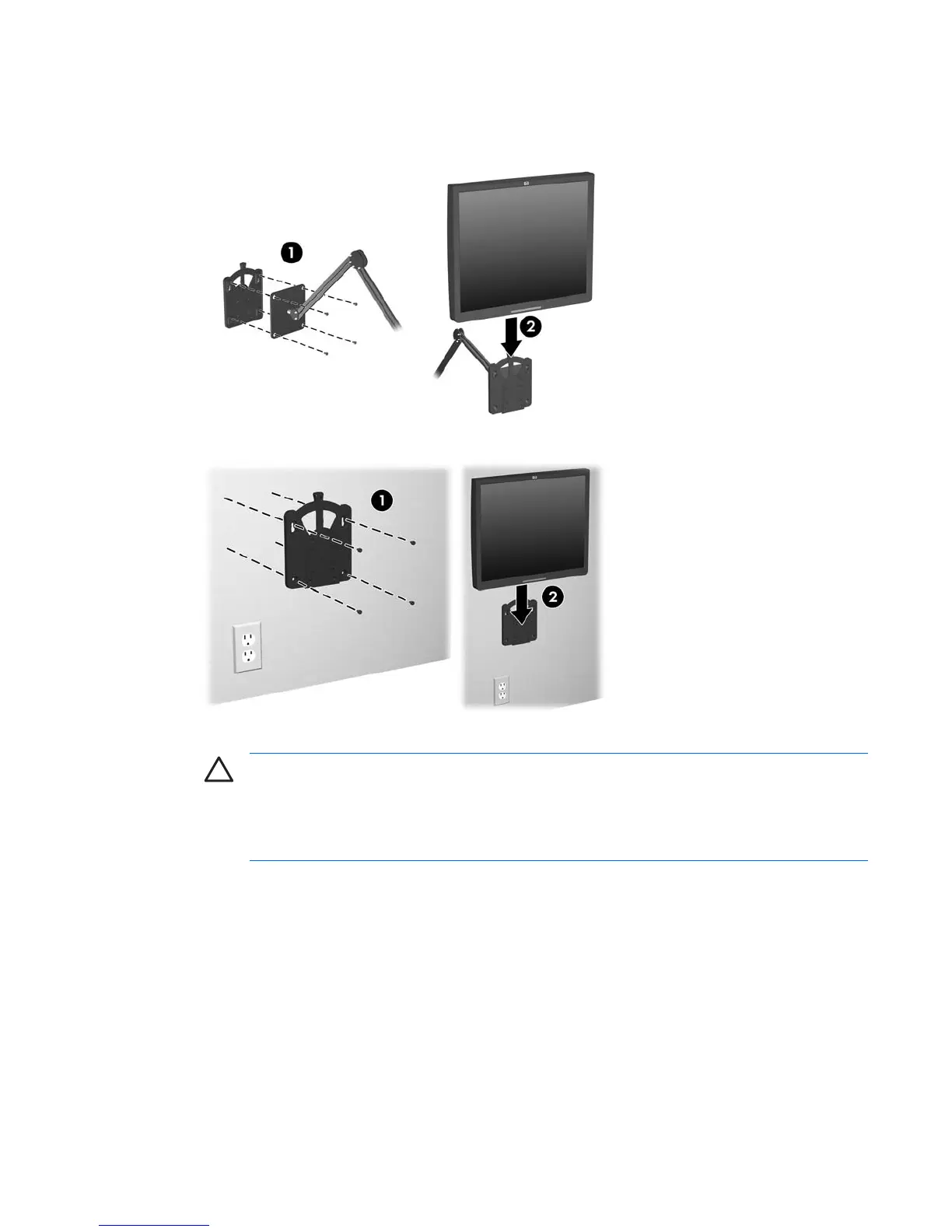

Figure 3-13 Mounting the Monitor to a Swing Arm Using Quick Release
Figure 3-14 Mounting the Monitor to the Wall Using Quick Release
CAUTION: The Quick Release is designed to support a maximum of up to 24 lbs. (10.9
kg). If you are mounting to a wall, HP recommends that you consult with a qualified
engineering, architectural, or construction professional to determine the appropriate type and
quantity of mounting fasteners required for the application and to ensure that the mounting
solution is properly installed to support applied loads.
ENWW Mounting Solutions 13
