Setting Up the Monitor
3. Install the adapter plate onto the swing arm or other mounting
fixture using the screws removed from the monitor base.

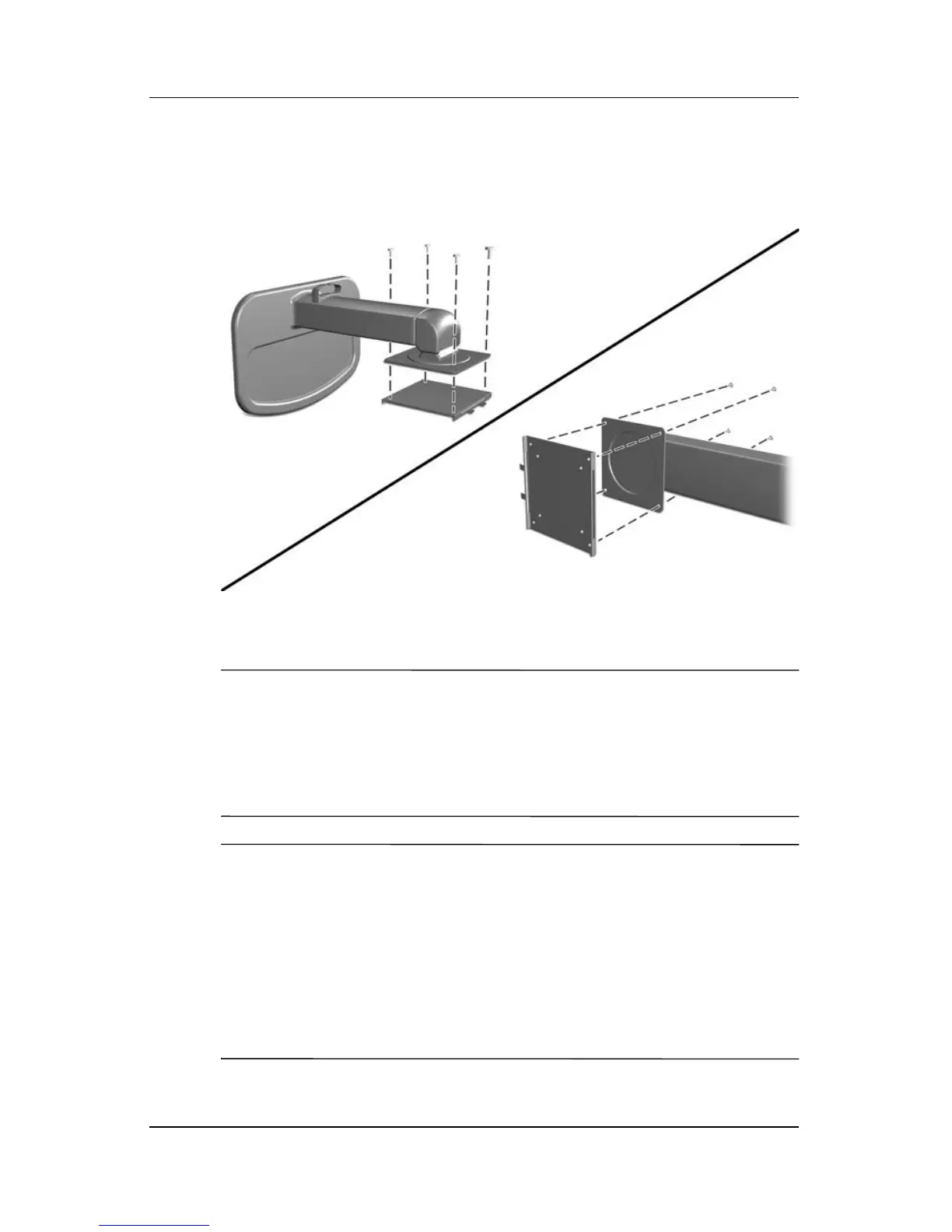

Using the Quick Release Adapter Plate to Mount the Display to a
Swing Arm
✎
For standing mounting purposes, when the base is removed, four
threaded mounting holes are exposed on the display panel. These
mounting holes are spaced 100 mm apart and are compliant with
the Video Electronics Standards Association (VESA) standard for
mounting flat panel displays.
Ä
CAUTION: This monitor supports the VESA industry standard
100mm mounting holes. To attach a third party mounting solution to
the monitor, four 4mm, 0.7 pitch, and 10mm long screws are
required (not provided with the monitor). Longer screws should not be
used because they may damage the monitor. It is important to verify
that the manufacturer’s mounting solution is compliant with the VESA
standard and is rated to support the weight of the monitor display
panel. For best performance, it is important to use the power and
video cable provided with the monitor.
3–16 User Guide
