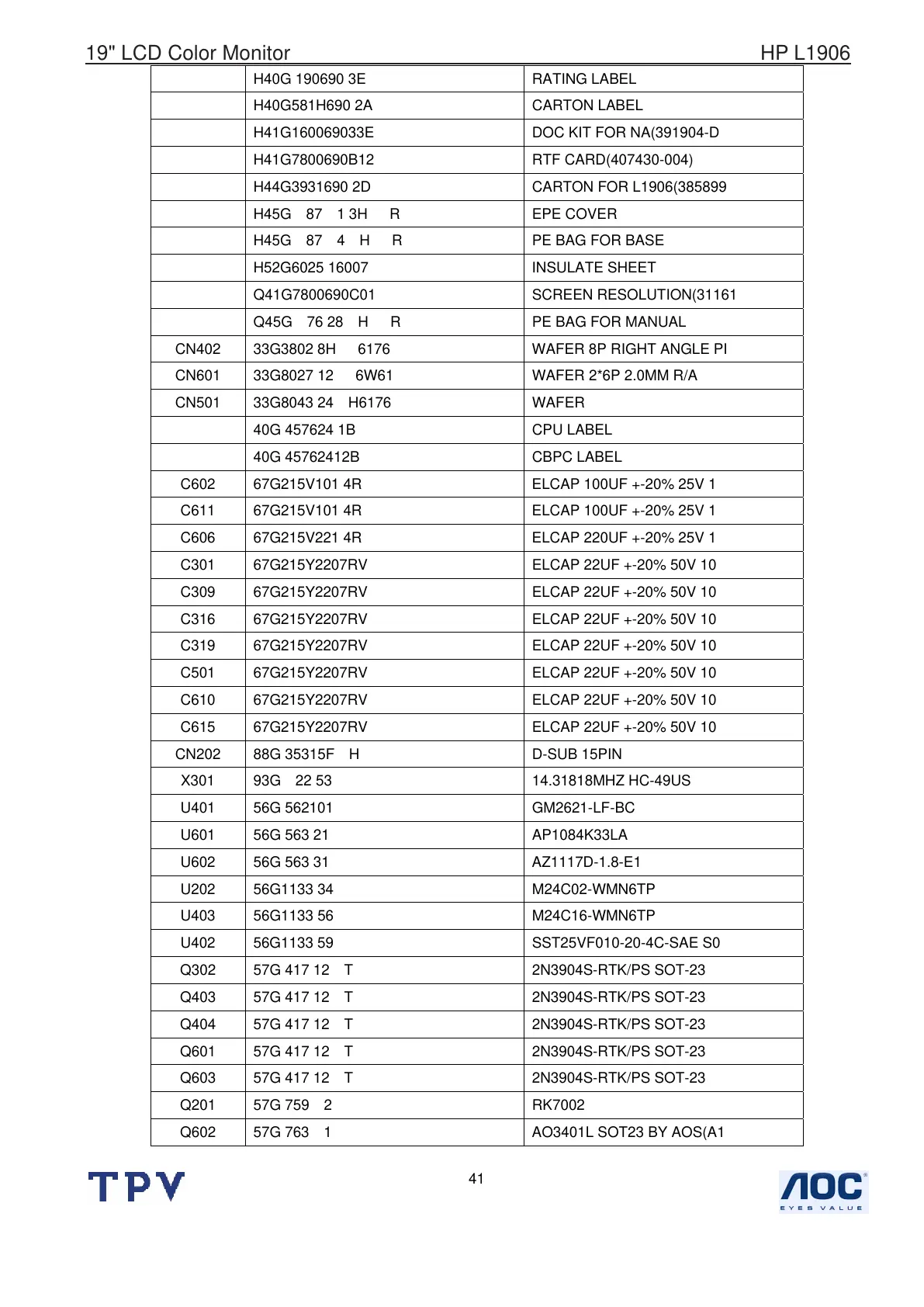

HP L1906 Service Manual

19" LCD Color Monitor HP L1906
41
H40G 190690 3E RATING LABEL
H40G581H690 2A CARTON LABEL
H41G160069033E DOC KIT FOR NA(391904-D
H41G7800690B12 RTF CARD(407430-004)
H44G3931690 2D CARTON FOR L1906(385899
H45G 87 1 3H R EPE COVER
H45G 87 4 H R PE BAG FOR BASE
H52G6025 16007 INSULATE SHEET
Q41G7800690C01 SCREEN RESOLUTION(31161
Q45G 76 28 H R PE BAG FOR MANUAL
CN402 33G3802 8H 6176 WAFER 8P RIGHT ANGLE PI
CN601 33G8027 12 6W61 WAFER 2*6P 2.0MM R/A
CN501 33G8043 24 H6176 WAFER
40G 457624 1B CPU LABEL
40G 45762412B CBPC LABEL
C602 67G215V101 4R ELCAP 100UF +-20% 25V 1
C611 67G215V101 4R ELCAP 100UF +-20% 25V 1
C606 67G215V221 4R ELCAP 220UF +-20% 25V 1
C301 67G215Y2207RV ELCAP 22UF +-20% 50V 10
C309 67G215Y2207RV ELCAP 22UF +-20% 50V 10
C316 67G215Y2207RV ELCAP 22UF +-20% 50V 10
C319 67G215Y2207RV ELCAP 22UF +-20% 50V 10
C501 67G215Y2207RV ELCAP 22UF +-20% 50V 10
C610 67G215Y2207RV ELCAP 22UF +-20% 50V 10
C615 67G215Y2207RV ELCAP 22UF +-20% 50V 10
CN202 88G 35315F H D-SUB 15PIN
X301 93G 22 53 14.31818MHZ HC-49US
U401 56G 562101 GM2621-LF-BC
U601 56G 563 21 AP1084K33LA
U602 56G 563 31 AZ1117D-1.8-E1
U202 56G1133 34 M24C02-WMN6TP
U403 56G1133 56 M24C16-WMN6TP
U402 56G1133 59 SST25VF010-20-4C-SAE S0
Q302 57G 417 12 T 2N3904S-RTK/PS SOT-23
Q403 57G 417 12 T 2N3904S-RTK/PS SOT-23
Q404 57G 417 12 T 2N3904S-RTK/PS SOT-23
Q601 57G 417 12 T 2N3904S-RTK/PS SOT-23
Q603 57G 417 12 T 2N3904S-RTK/PS SOT-23
Q201 57G 759 2 RK7002
Q602 57G 763 1 AO3401L SOT23 BY AOS(A1

HP L1906 Specifications

General

3D	No
Pixel pitch	0.294 x 0.294 mm
Display diagonal	19 \
Display resolution	1280 x 1024 pixels
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Viewing angle, vertical	130 °
Contrast ratio (dynamic)	-
Contrast ratio (typical)	500:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	140 °
Display brightness (typical)	270 cd/m²
Supported graphics resolutions	1280 x 1024 (SXGA)
On/off switch	Yes
DVI-D ports quantity	0
Tilt angle range	0 - 15 °
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	37 W
Power consumption (standby)	2 W
Power consumption (typical)	33 W
Certification	CISPR, VCCI, CSA, TUV, GS, CCC, MIC, FCC, UL, GOST, SASO
Product color	Black, Silver
Country of origin	China
Market positioning	Business
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Package weight	7000 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	203 mm
Height (with stand)	427 mm
Weight (with stand)	5300 g
Depth (without stand)	59 mm
Width (without stand)	422 mm
Height (without stand)	362 mm
Weight (without stand)	- g
