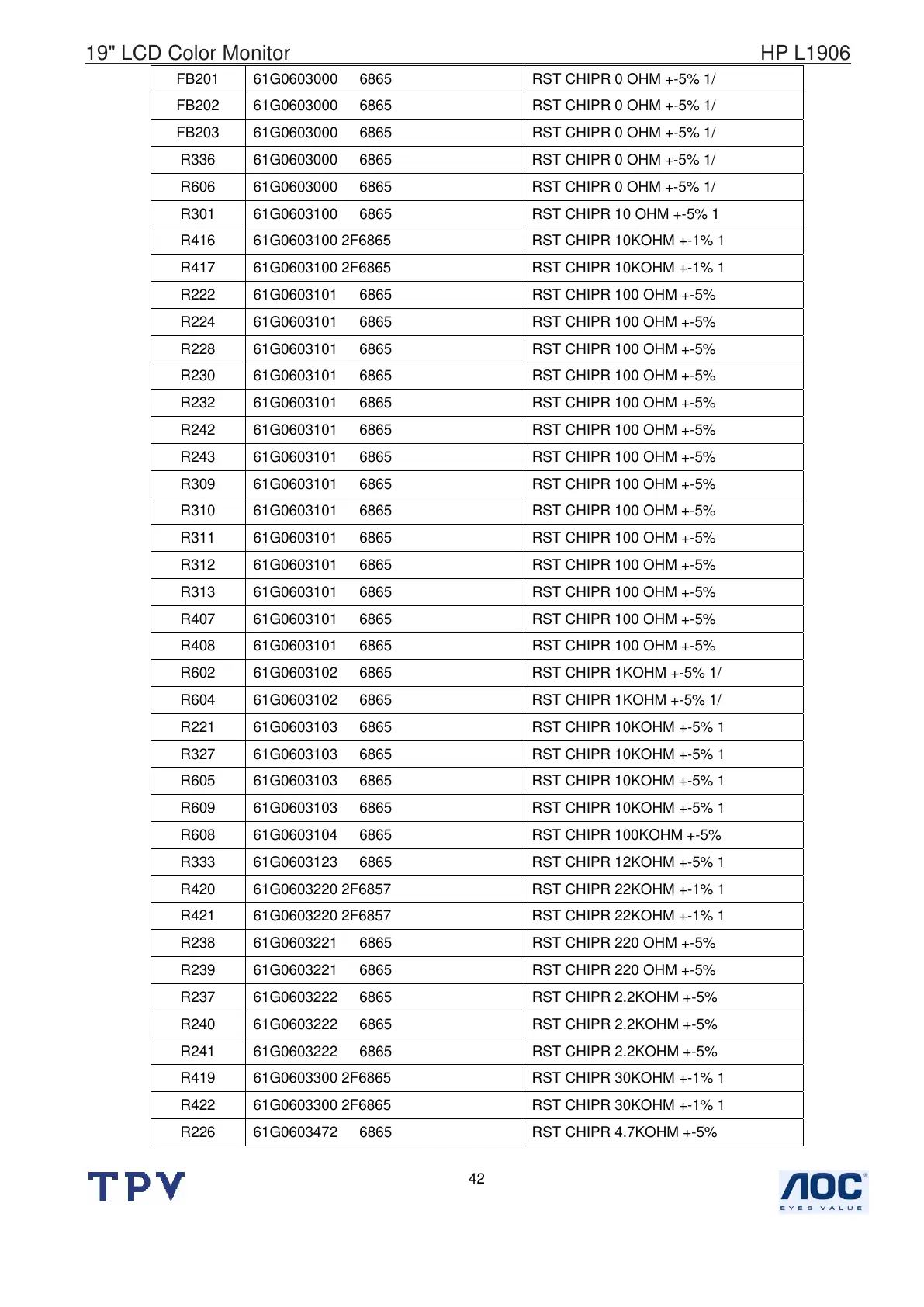

HP L1906 Service Manual

19" LCD Color Monitor HP L1906
42
FB201 61G0603000 6865 RST CHIPR 0 OHM +-5% 1/
FB202 61G0603000 6865 RST CHIPR 0 OHM +-5% 1/
FB203 61G0603000 6865 RST CHIPR 0 OHM +-5% 1/
R336 61G0603000 6865 RST CHIPR 0 OHM +-5% 1/
R606 61G0603000 6865 RST CHIPR 0 OHM +-5% 1/
R301 61G0603100 6865 RST CHIPR 10 OHM +-5% 1
R416 61G0603100 2F6865 RST CHIPR 10KOHM +-1% 1
R417 61G0603100 2F6865 RST CHIPR 10KOHM +-1% 1
R222 61G0603101 6865 RST CHIPR 100 OHM +-5%
R224 61G0603101 6865 RST CHIPR 100 OHM +-5%
R228 61G0603101 6865 RST CHIPR 100 OHM +-5%
R230 61G0603101 6865 RST CHIPR 100 OHM +-5%
R232 61G0603101 6865 RST CHIPR 100 OHM +-5%
R242 61G0603101 6865 RST CHIPR 100 OHM +-5%
R243 61G0603101 6865 RST CHIPR 100 OHM +-5%
R309 61G0603101 6865 RST CHIPR 100 OHM +-5%
R310 61G0603101 6865 RST CHIPR 100 OHM +-5%
R311 61G0603101 6865 RST CHIPR 100 OHM +-5%
R312 61G0603101 6865 RST CHIPR 100 OHM +-5%
R313 61G0603101 6865 RST CHIPR 100 OHM +-5%
R407 61G0603101 6865 RST CHIPR 100 OHM +-5%
R408 61G0603101 6865 RST CHIPR 100 OHM +-5%
R602 61G0603102 6865 RST CHIPR 1KOHM +-5% 1/
R604 61G0603102 6865 RST CHIPR 1KOHM +-5% 1/
R221 61G0603103 6865 RST CHIPR 10KOHM +-5% 1
R327 61G0603103 6865 RST CHIPR 10KOHM +-5% 1
R605 61G0603103 6865 RST CHIPR 10KOHM +-5% 1
R609 61G0603103 6865 RST CHIPR 10KOHM +-5% 1
R608 61G0603104 6865 RST CHIPR 100KOHM +-5%
R333 61G0603123 6865 RST CHIPR 12KOHM +-5% 1
R420 61G0603220 2F6857 RST CHIPR 22KOHM +-1% 1
R421 61G0603220 2F6857 RST CHIPR 22KOHM +-1% 1
R238 61G0603221 6865 RST CHIPR 220 OHM +-5%
R239 61G0603221 6865 RST CHIPR 220 OHM +-5%
R237 61G0603222 6865 RST CHIPR 2.2KOHM +-5%
R240 61G0603222 6865 RST CHIPR 2.2KOHM +-5%
R241 61G0603222 6865 RST CHIPR 2.2KOHM +-5%
R419 61G0603300 2F6865 RST CHIPR 30KOHM +-1% 1
R422 61G0603300 2F6865 RST CHIPR 30KOHM +-1% 1
R226 61G0603472 6865 RST CHIPR 4.7KOHM +-5%

HP L1906 Specifications

General

3D	No
Pixel pitch	0.294 x 0.294 mm
Display diagonal	19 \
Display resolution	1280 x 1024 pixels
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Viewing angle, vertical	130 °
Contrast ratio (dynamic)	-
Contrast ratio (typical)	500:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	140 °
Display brightness (typical)	270 cd/m²
Supported graphics resolutions	1280 x 1024 (SXGA)
On/off switch	Yes
DVI-D ports quantity	0
Tilt angle range	0 - 15 °
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	37 W
Power consumption (standby)	2 W
Power consumption (typical)	33 W
Certification	CISPR, VCCI, CSA, TUV, GS, CCC, MIC, FCC, UL, GOST, SASO
Product color	Black, Silver
Country of origin	China
Market positioning	Business
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Package weight	7000 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	203 mm
Height (with stand)	427 mm
Weight (with stand)	5300 g
Depth (without stand)	59 mm
Width (without stand)	422 mm
Height (without stand)	362 mm
Weight (without stand)	- g
