19" LCD Color Monitor HP L1950

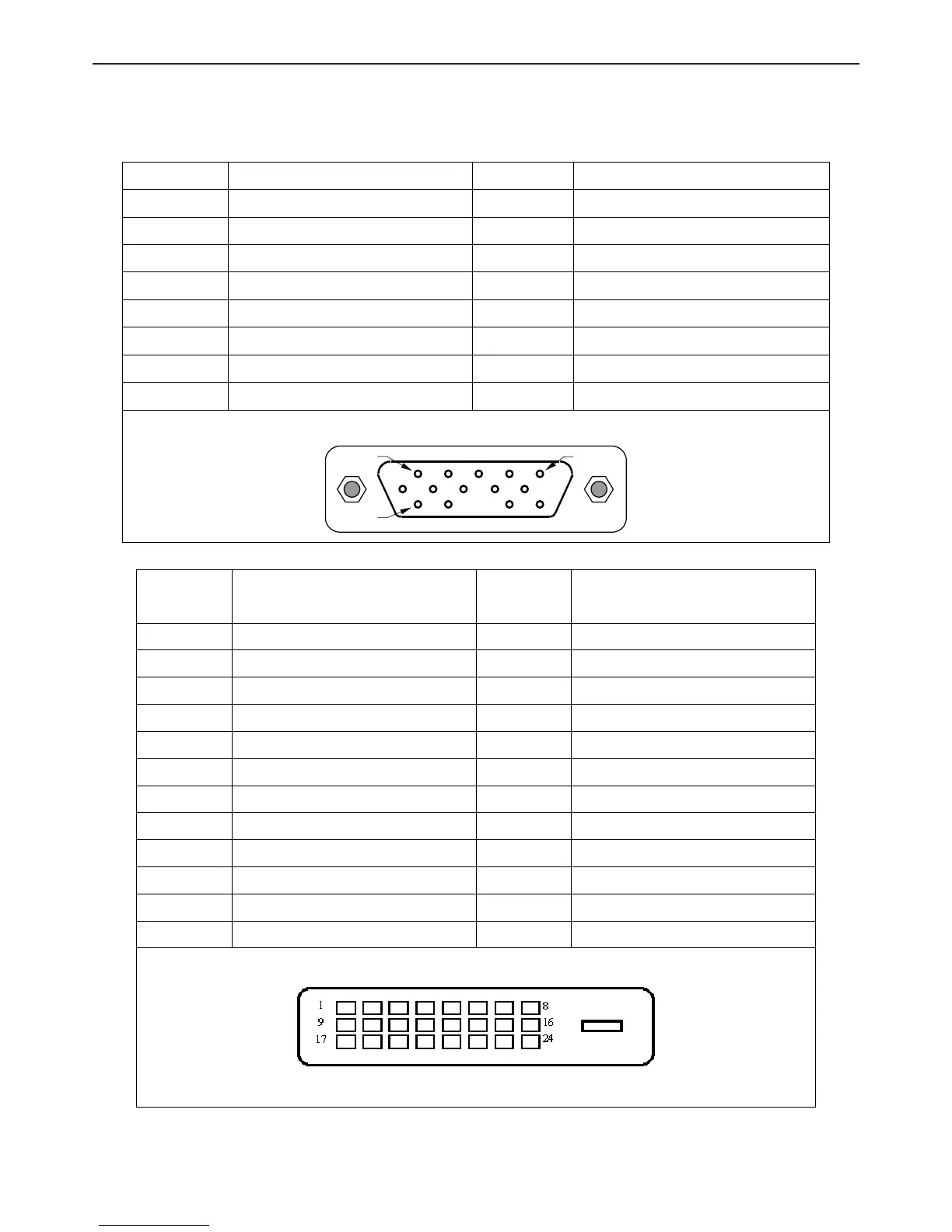

4. Input/Output Specification

4.1 Input Signal Connector

4.1.1 D-SUB connector

Pin Signal Pin Signal

1 Red Video 9 3.3/+5 V (from PC)

2 Green Video 10 Sync Ground

3 Blue Video 11 None

4 None 12 DDC Data

5 Ground (DDC Return) 13 Horizontal Sync

6 Red GND 14 Vertical Sync

7 Green GND 15 DDC Clock

8 Blue GND

VGA connector layout

PIN 1

PIN 5

PIN 11

4.1.2 DVI-D connector

Pin No.

Signal Name

Pin No.

Signal Name

1 TMDS Data 2- 13 TMDS Data 3+

2 TMDS Data 2+ 14 +5V Power

3 TMDS Data 2/4 Shield 15 Ground(for+5V)

4 TMDS Data 4- 16 Hot Plug Detect

5 TMDS Data 4+ 17 TMDS Data 0-

6 DDC Clock 18 TMDS Data 0+

7 DDC Data 19 TMDS Data 0/5 Shield

8 N.C. 20 TMDS Data 5-

9 TMDS Data 1- 21 TMDS Data 5+

10 TMDS Data 1+ 22 TMDS Clock Shield

11 TMDS Data 1/3 Shield 23 TMDS Clock +

12 TMDS Data 3- 24 TMDS Clock -

24 - Pin Color Display Signal Cable

Questions and Answers:

Need help?

Do you have a question about the HP L1950 and is the answer not in the manual?

HP L1950 Specifications

General

3D	No
HD type	-
Panel type	TFT
Display surface	Matt
Display diagonal	19 \
Display resolution	1280 x 1024 pixels
Display technology	LCD
Vertical scan range	50 - 77 Hz
Horizontal scan range	24 - 83 kHz
Contrast ratio (typical)	800:1
Viewing angle, horizontal	160 °
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870
Plug and Play	Yes
Tilt angle range	-5 - 35 °
Active display area (W x H)	378 x 303 mm
AC input voltage	90 - 256 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	2 W
Power consumption (typical)	30 W
USB hub version	2.0
HDMI ports quantity	0
USB Type-A downstream ports quantity	2
Product color	Silver
Country of origin	China

Weight and Dimensions
