3. Mount the Quick Release to a swing arm or other mounting fixture using the four screws
removed from the Quick Release in the previous step.

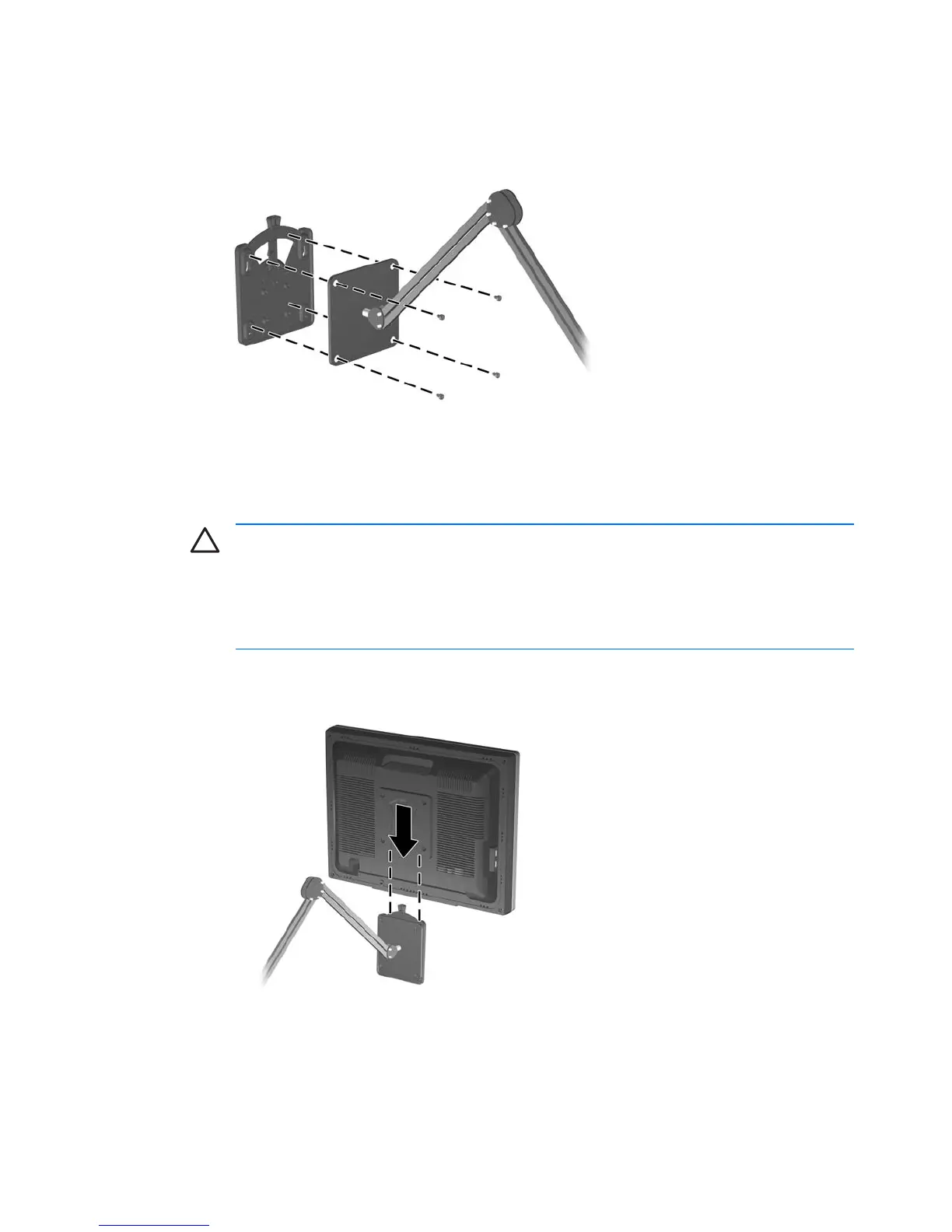

Figure 3-16 Installing the Quick Release
CAUTION The Quick Release can also be installed directly to a wall to mount the
monitor panel. It is designed to support a maximum of up to 24 lbs. (10.9 kg). If you are
mounting to a wall, HP recommends that you consult with a qualified engineering,
architectural, or construction professional to determine the appropriate type and quantity
of mounting fasteners required for your application and to ensure that the mounting
solution is properly installed to support applied loads.
4. Insert the monitor panel into the Quick Release, and then press down firmly on the monitor to
lock it in place. When the Quick Release locks, it will make a clicking sound.
Figure 3-17 Inserting the Monitor Panel into the Quick Release
16 Chapter 3 Setting Up the Monitor
