4. Lift the rear panel up and off the monitor.

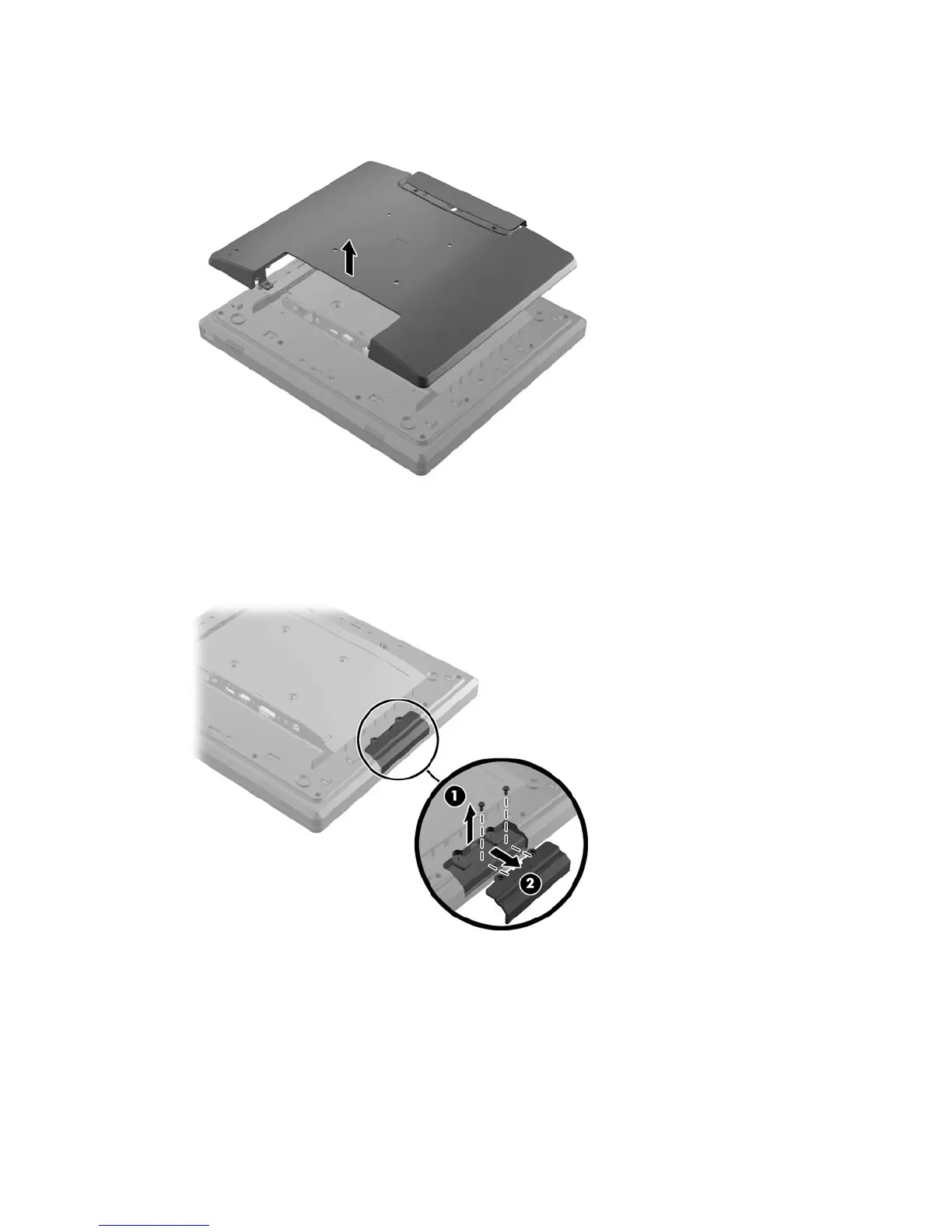

Figure 2-6 Removing the Rear Panel
5. Remove the two screws that attach the USB cover plate to the monitor (1) then slide the cover
plate off the monitor (2). Remove only the cover plate that is in the location where you want to
install the USB module.
Figure 2-7 Removing the USB Cover Plate
6 Chapter 2 Setting Up the Monitor
