HP Laser Jet 5550

Note
See the general circuit diagram in chapter 8 for detailed information on the printer circuitry.

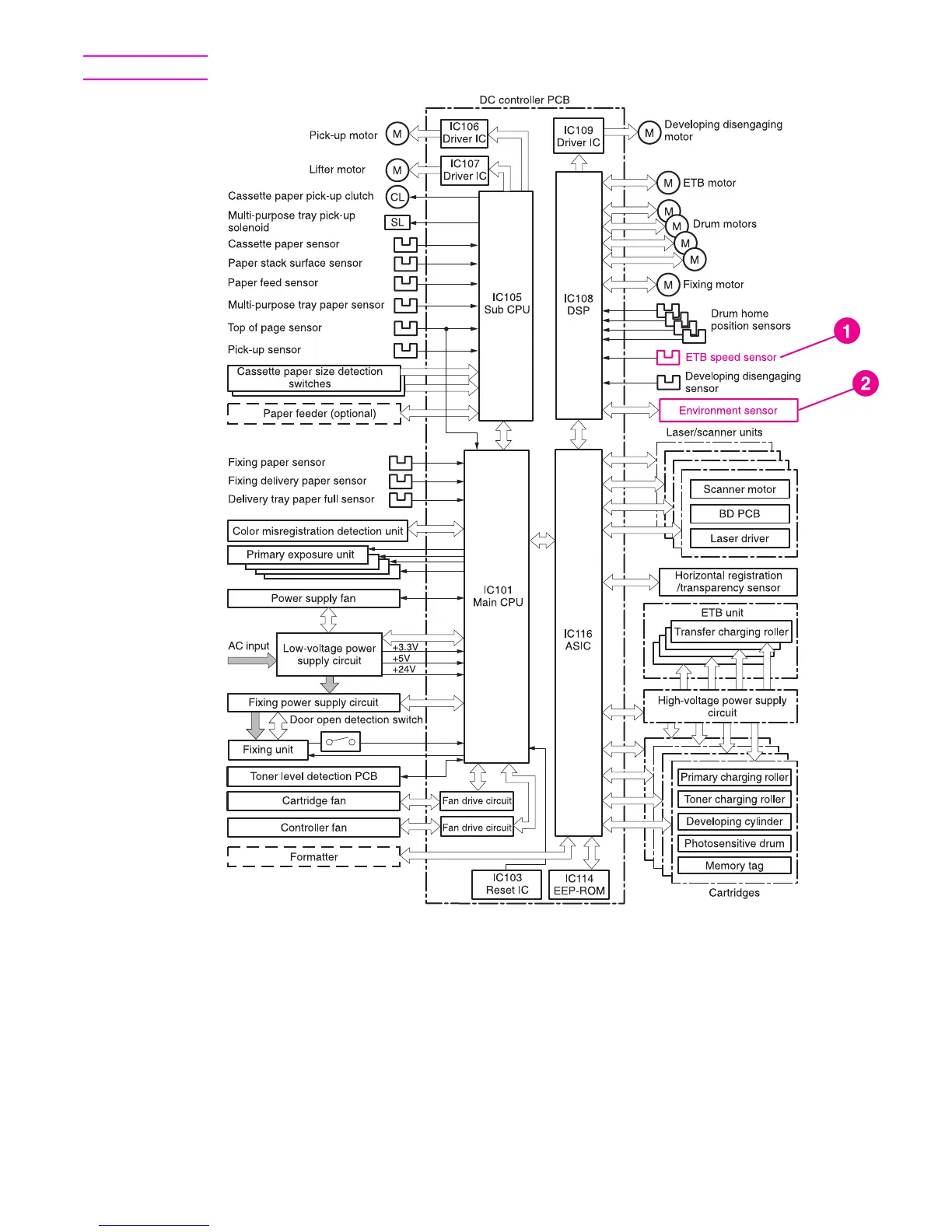

Figure 5-3.
DC controller circuit
1 HP Color LaserJet 5500 models only
2 HP Color LaserJet 5550 models only
