20 Chapter 2 - Removal and replacement Q1342-90910
4 Release the two locking tabs (not shown). The left tab is located
under the printer and the right tab is located on the right side of
the printer, near the cable pod port.
5 Press down and hold the two green jam-release levers (callout 3)
and pull the cover off of the printer.

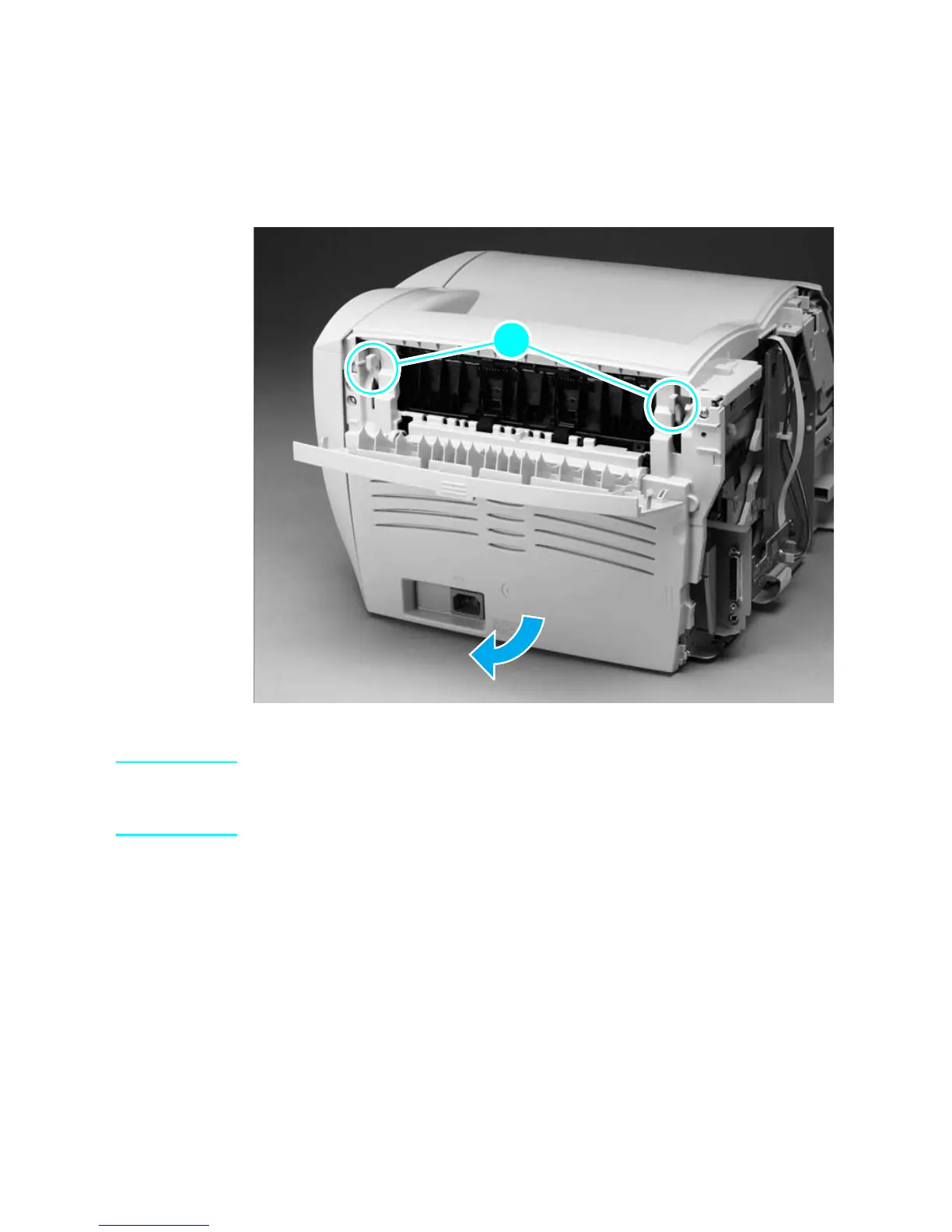

Figure 9. Remove the back cover
CAUTION When replacing the back cover, verify that the bottom left retainer tab
(under the printer) is inside the printer chassis. This tab can be broken
if not properly inserted into the printer chassis.
