3. The clamps on the paper guide fit over the bearings on the right and left ends of the
transfer roller. Do not touch the sponge part of the transfer roller, but grasp the right end
of the paper guide (callout 1, figure 5-18) and pull the clamp off the right bearing. Then
slide it slightly to the right, and the left clamp will slide off the left bearing.

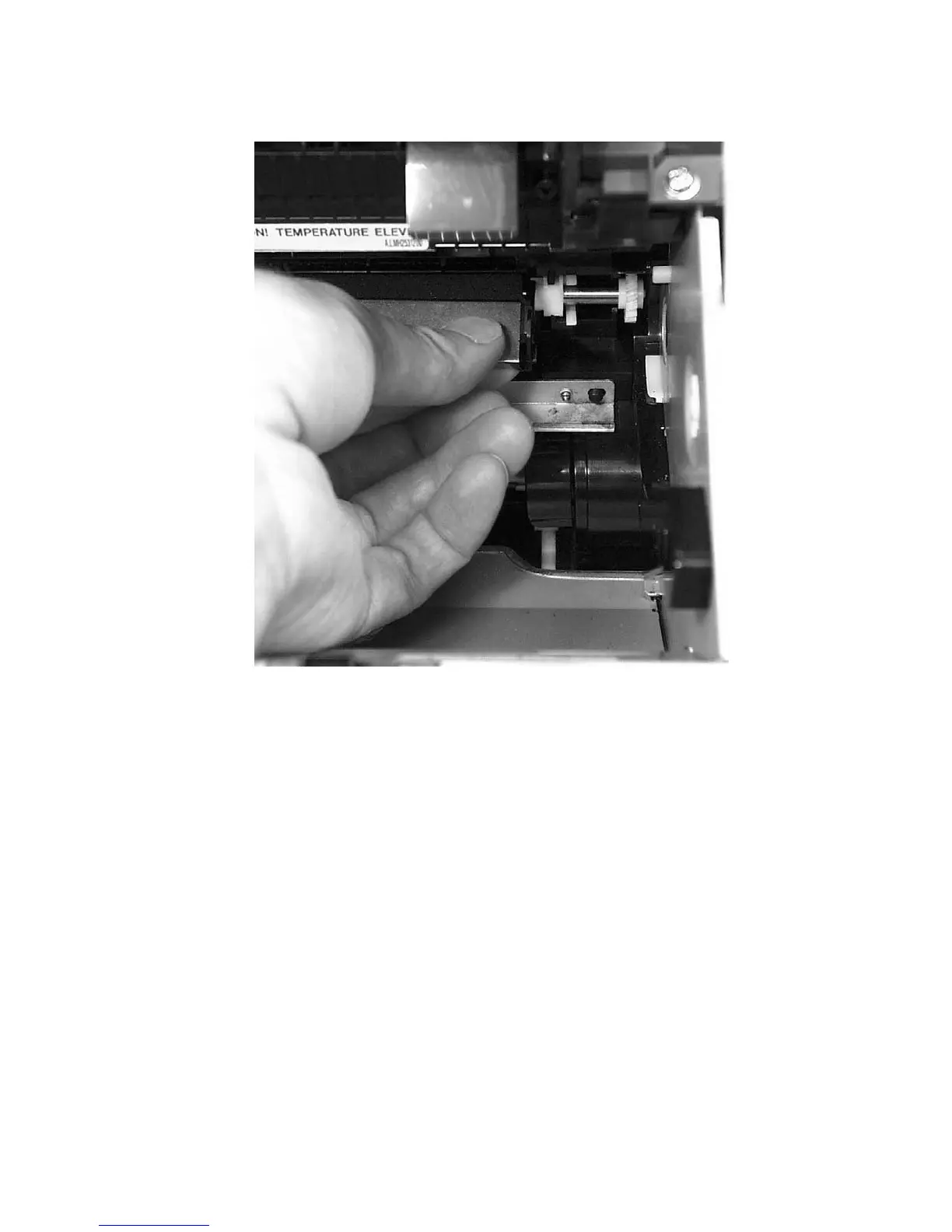

Figure 5-18. Removing the transfer roller (2 of 3)
