Laser/scanner assembly
1 Remove the following assemblies.
● Right-side cover. See
Right-side cover on page 75.
● Left-side cover. See
Left-side cover on page 77.
● Top-cover assembly. See
Rear panel and top-cover assembly on page 77.
● Front-cover. See
Front cover on page 82.
● Engine-control unit assembly. See
Engine control unit (ECU) assembly on page 92.
2 Remove four screws (callout 1) and then remove the laser/scanner assembly.
1

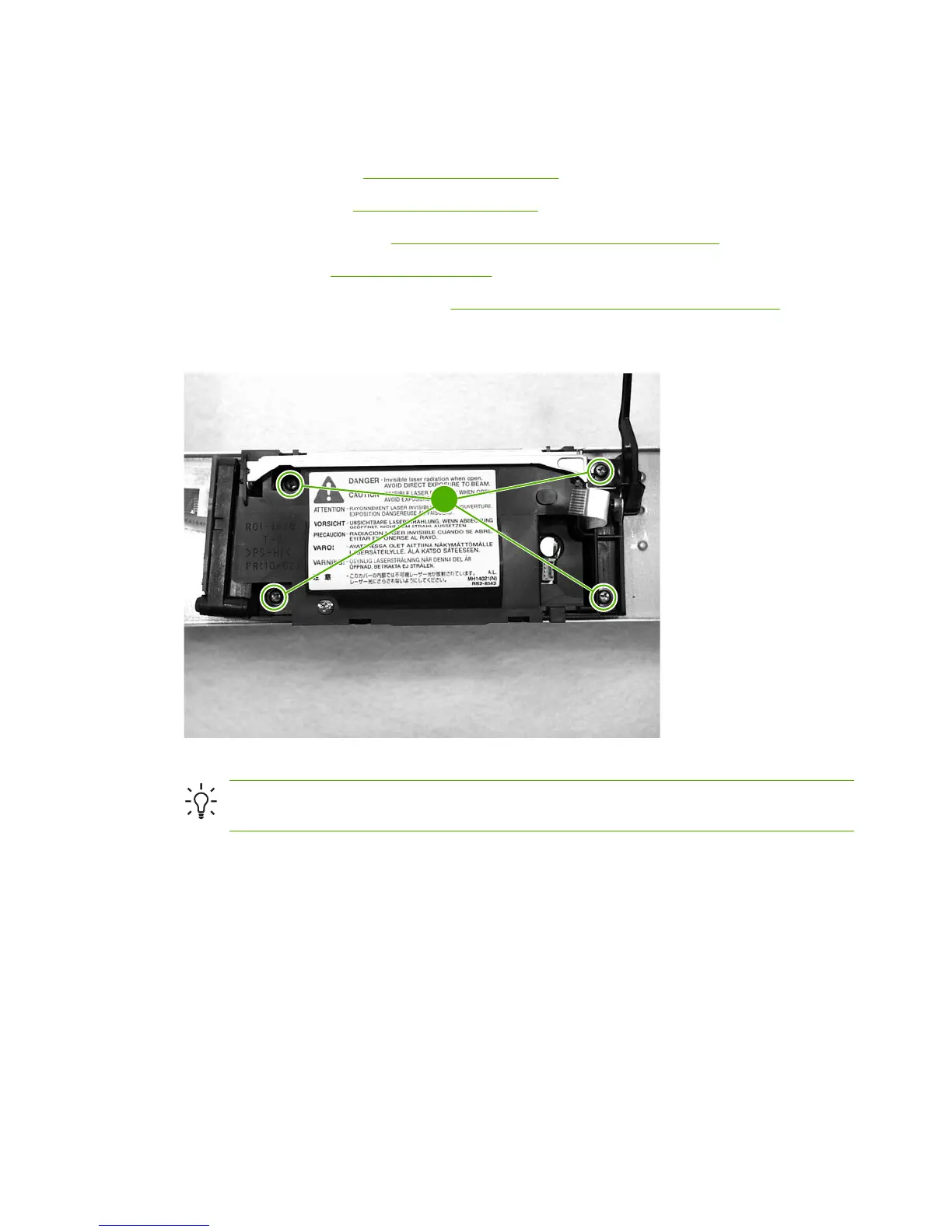

Figure 5-35 Remove the laser/scanner assembly
Reinstallation tip When replacing the laser/scanner assembly, be sure to transfer the laser
shutter arm from the old assembly to the new one.
