Solenoid, sensors, switches, and motor
The following figure shows the locations of the solenoid, sensors, and switches.
➁
➂
➃
➀
➄
➅

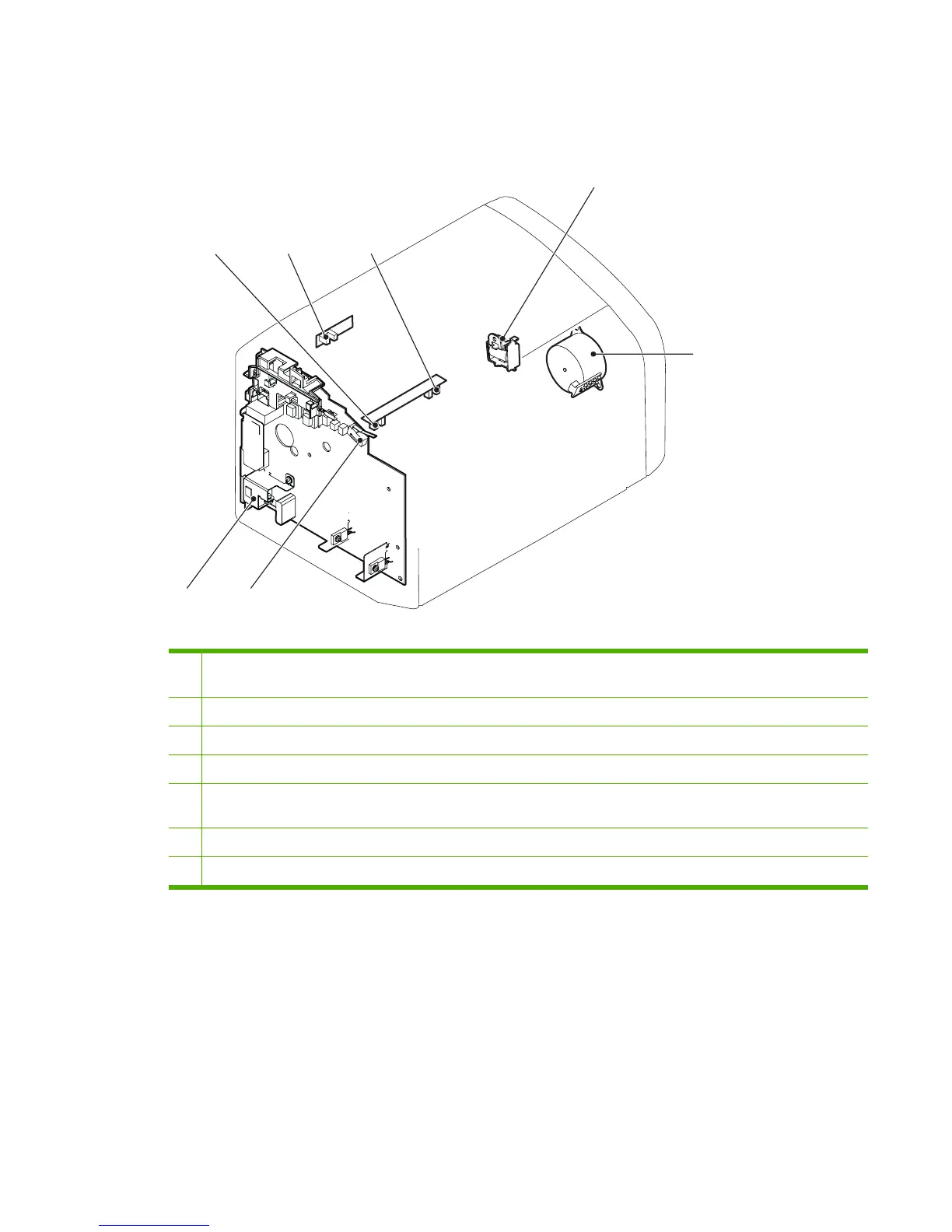

Figure 6-9 Solenoid, sensors, switches, and motor
1 The door switch detects whether or not the print-cartridge door is closed. Printing cannot continue until the print-cartridge
door is closed.
2 Power switch
3 The paper-width sensor senses the width of the media.
4 The paper-delivery sensor senses when media has successfully moved out of the fusing area.
5 The top-of-page sensor detects the leading and trailing edges of the media. It synchronizes the photosensitive drum and
the top of the media.
6 Solenoid
7 Motor
ENWW Solenoid, sensors, switches, and motor 131
