Solenoid, sensors, switches, and motor

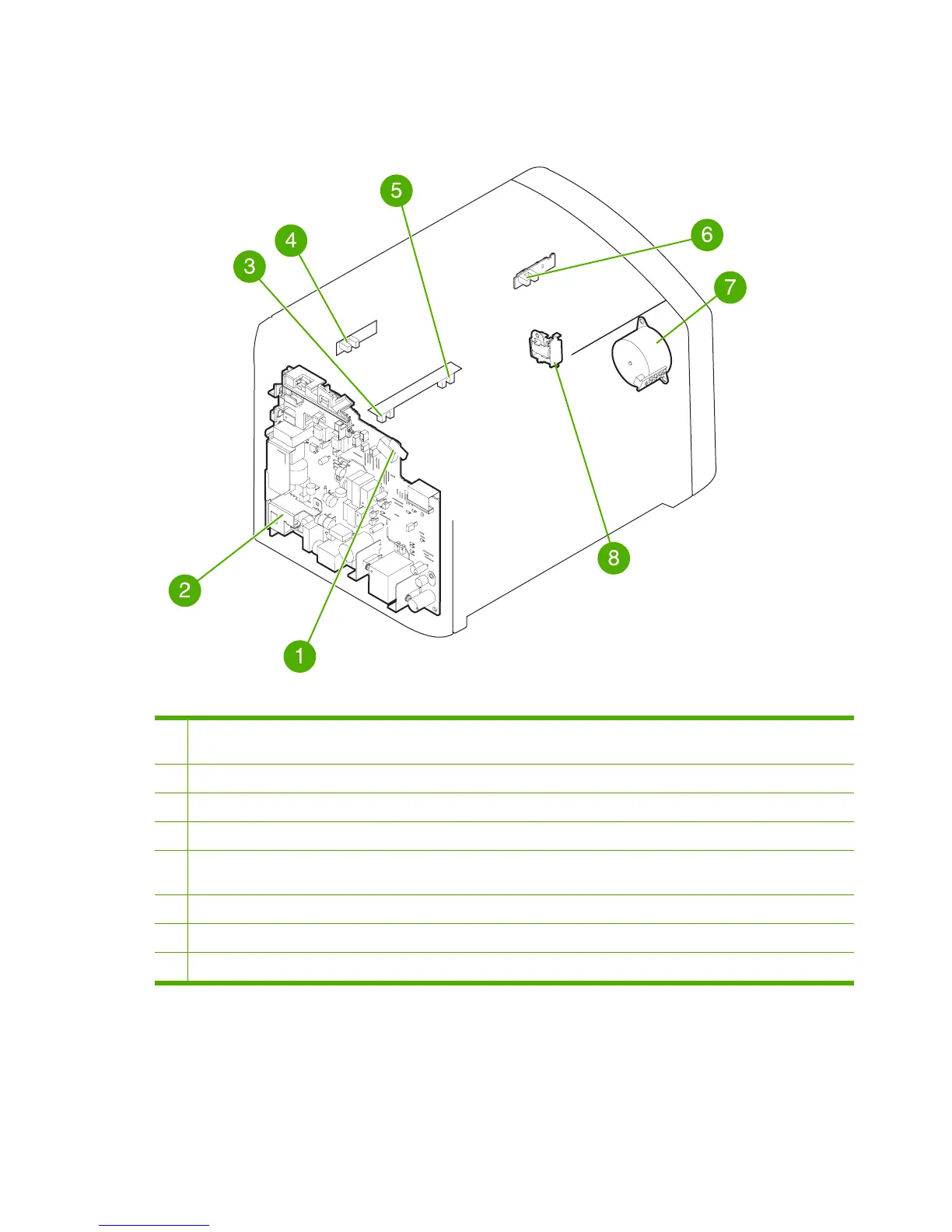

The following figure shows the locations of the solenoid, sensors, switches, and motor.
Figure 4-7 Solenoid, sensors, switches, and motor
1 The door switch detects whether or not the print-cartridge door is closed. Printing cannot continue until the print-cartridge
door is closed.
2 Power switch
3 The paper-width sensor senses the width of the paper.
4 The paper-delivery sensor senses when paper has successfully moved out of the fusing area.
5 Top-of-page sensor detects the leading and trailing edges of the paper. It synchronizes the photosensitive drum and the
top of the paper.
6 Fuser delivery paper-width sensor
7 Motor
8 Solenoid
54 Chapter 4 Operational overview ENWW
