3 Release the tab on the bottom right side of the front cover, and then pull the bottom of the cover
away from the chassis. Repeat this step for the left side of the front cover.
1
2

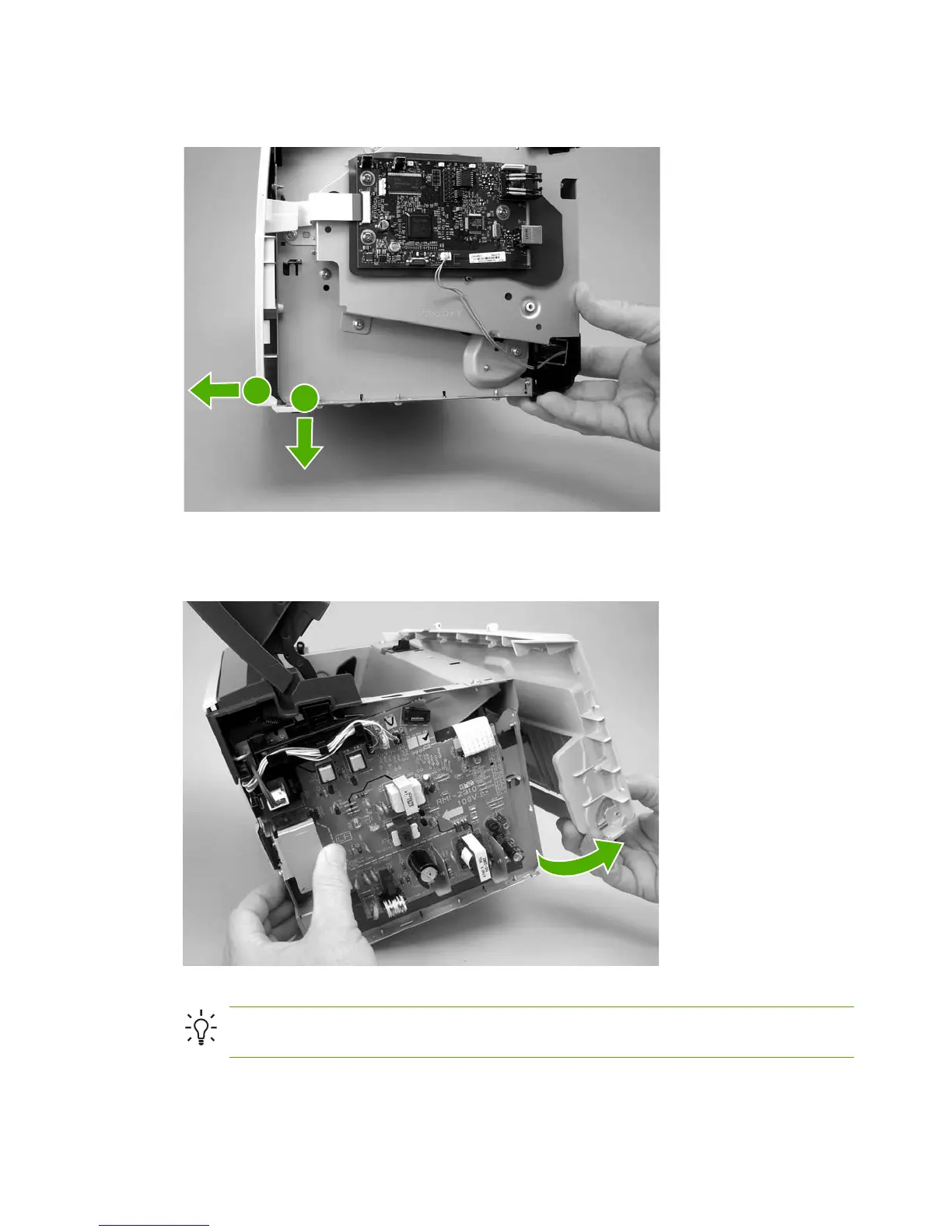

Figure 5-18 Remove the front cover (2 of 3)
4 With the bottom of the front cover released, pull up and back at the top of the cover while gently
rocking it to release all of the tabs at the top and remove the cover.
Figure 5-19 Remove the front cover (3 of 3)
Hint When reinstalling the front cover, make sure the tabs on the top of the cover are
securely in place, and then press the bottom of the cover into place.
