PS1 Input Paper Sensor Input Paper Sensor (PS1) Positions:
PS2 Tray 2 Paper Out Sensor A = Manual Feed Sense Position
PS3 Exit Paper Sensor B = Registration Sense Position
PS4 Winding Paper Sensor C = TOP Sense Position
PS5 Tray 1 Paper Out Sensor SL1 Tray 2 Solenoid
SL2 Tray 1 Solenoid
DC Controller PCA
PS 3

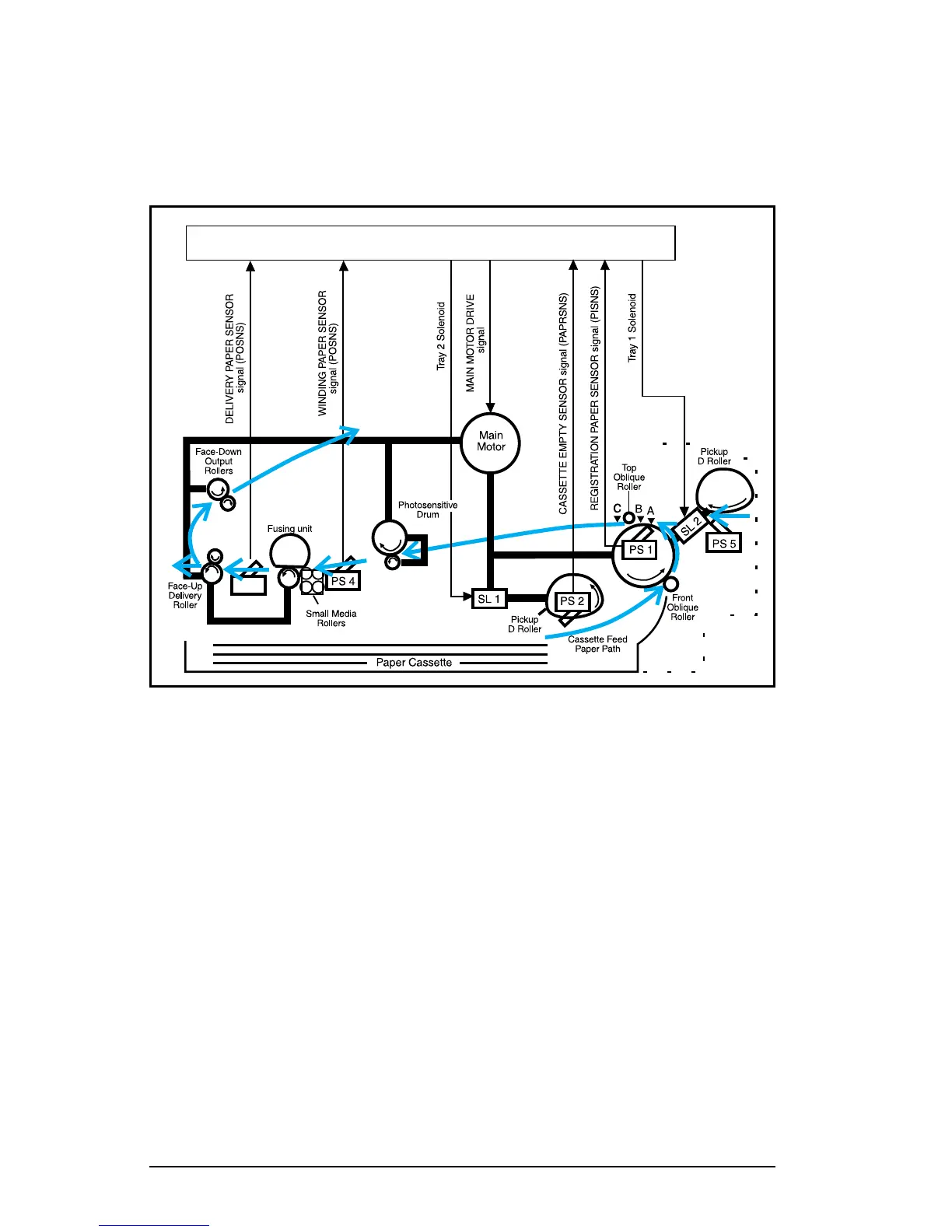

Figure 7 HP LaserJet 5P/6P Printer Paper Path
HP LaserJet 5P/5MP, 6P/6MP Printer Service Supplement
