Removing the Power Door
The Power Door is located on the right rear of the printer.
1.
Ensure the power to the printer is turned OFF.
2.
Grasp the power door by the finger slot directly above the power
cord, and swing the rear of the door out and forward. The door
easily tilts and lifts out.
3.
Unplug the power cord from the printer power socket.
Removing the I/O Cover
The I/O Cover is located to the left rear of the printer.
5P/5MP I/O Cover
1.
Locate the two release tabs shown in Figure 15. Press the tabs
in, and swing the rear of the door out and forward. The door
easily lifts away from the printer.

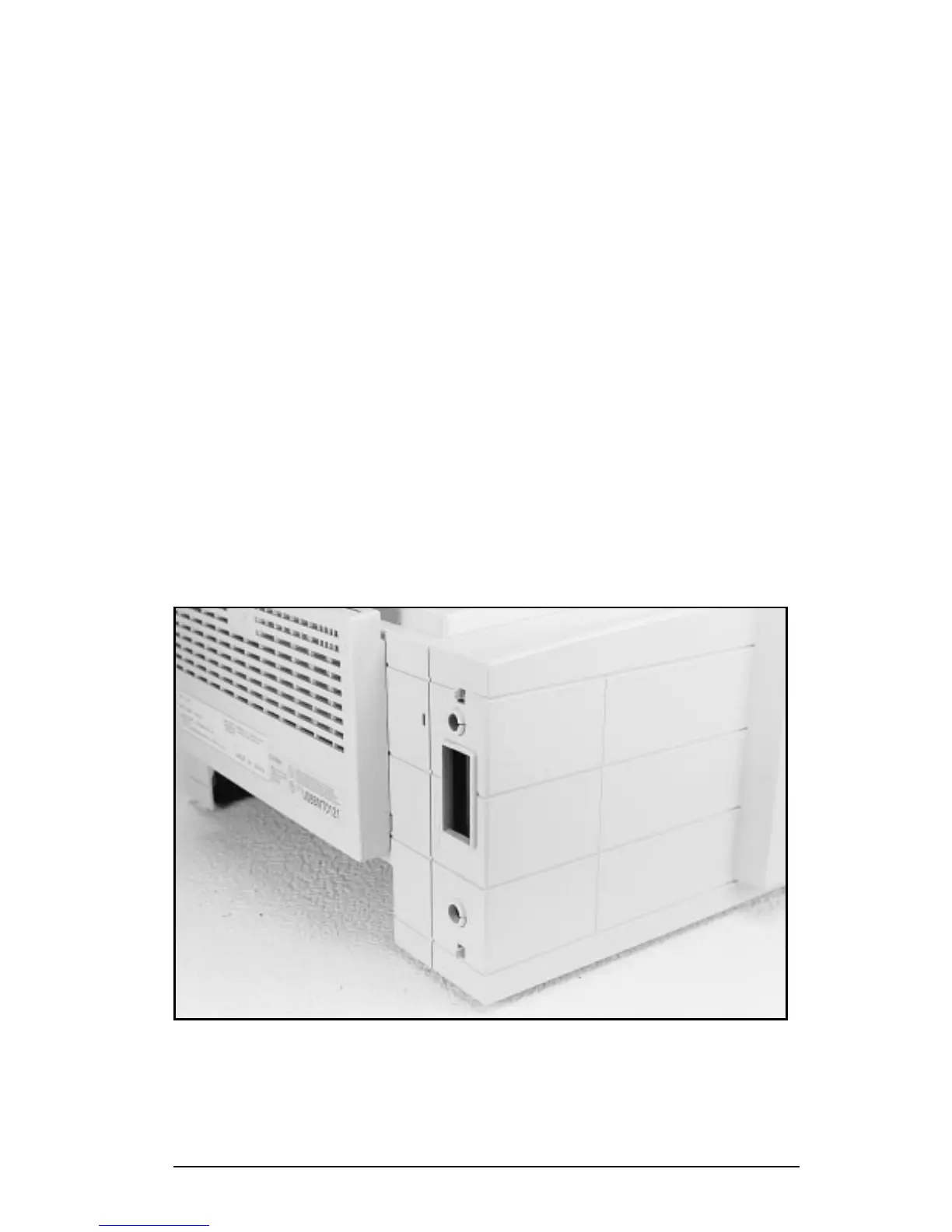

Figure 15 5P/5MP I/O Cover Release Tabs
HP LaserJet 5P/5MP, 6P/6MP Printer Service Supplement
Removal and Replacement
43
