5. Press the two release tabs on either side of the pickup assembly
(callout 3 in Figure 19) and pull the assembly away from the
printer. (The left side release tab is partially hidden from view.
Pressing in on both sides will release the tabs.)
6. Pull the pickup assembly straight out from the back of the
printer.
7. To remove the roller from the pickup assembly, grasp the tabs
on the right end of the roller and slide it to the right (shown in
Figure 20).

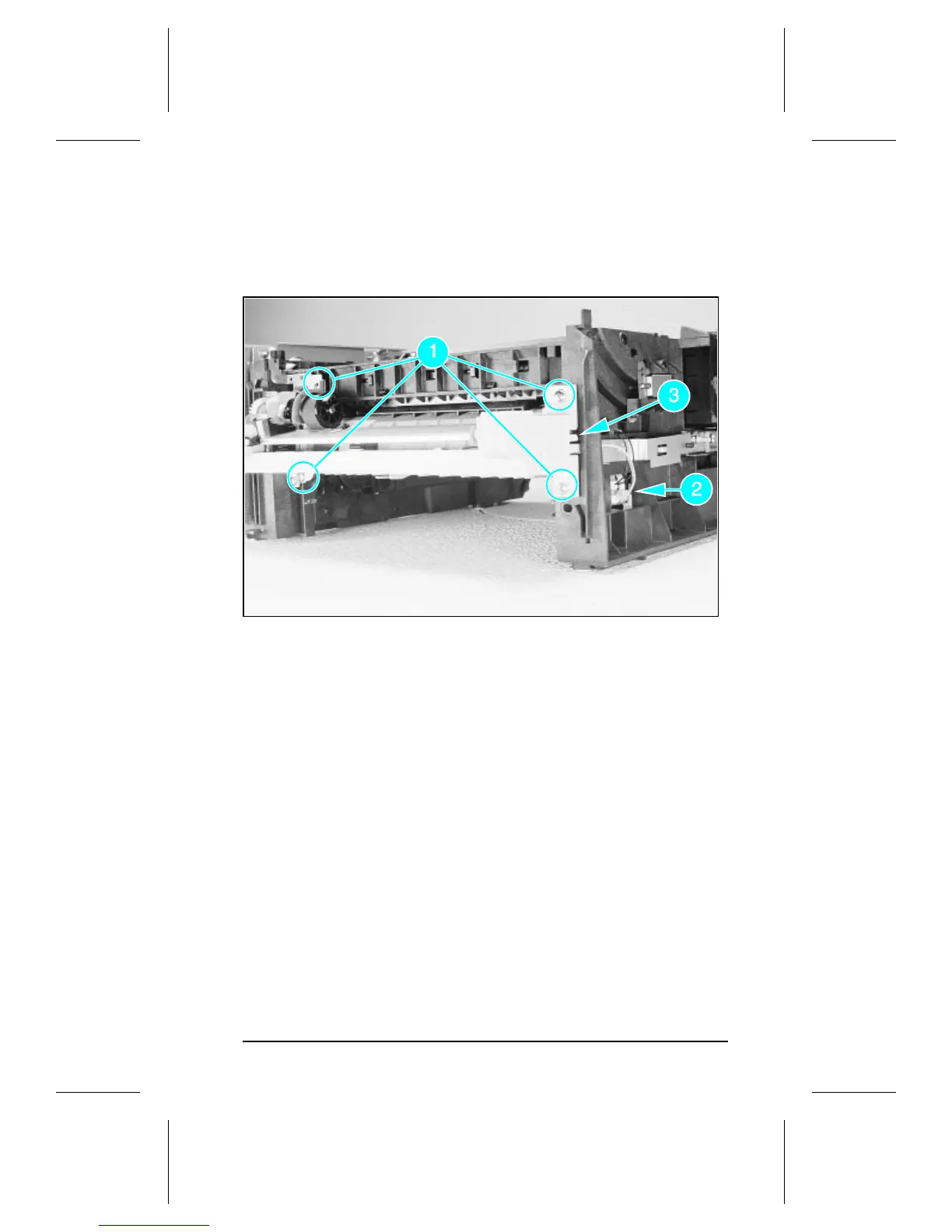

Figure 19 Tray 1 Pickup Assembly Locations.
HP LaserJet 5P Printer Service Supplement
Removal and Replacement
45
