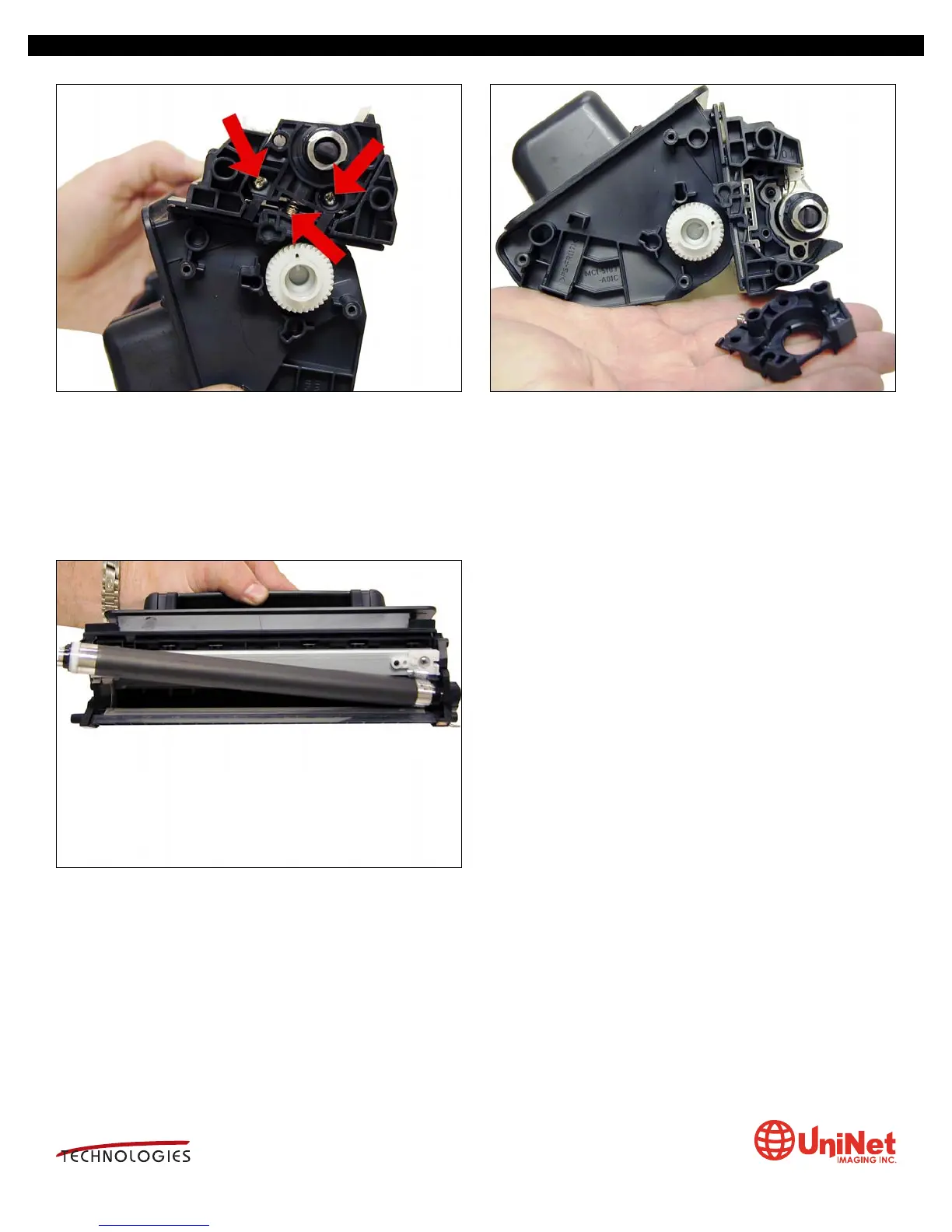

23. Note the location of the spring that sits between the
MRS holder and the hopper.
Remove the two screws, spring and the holder.
24. Remove the MRS assembly.
