6. Remove the top cover.

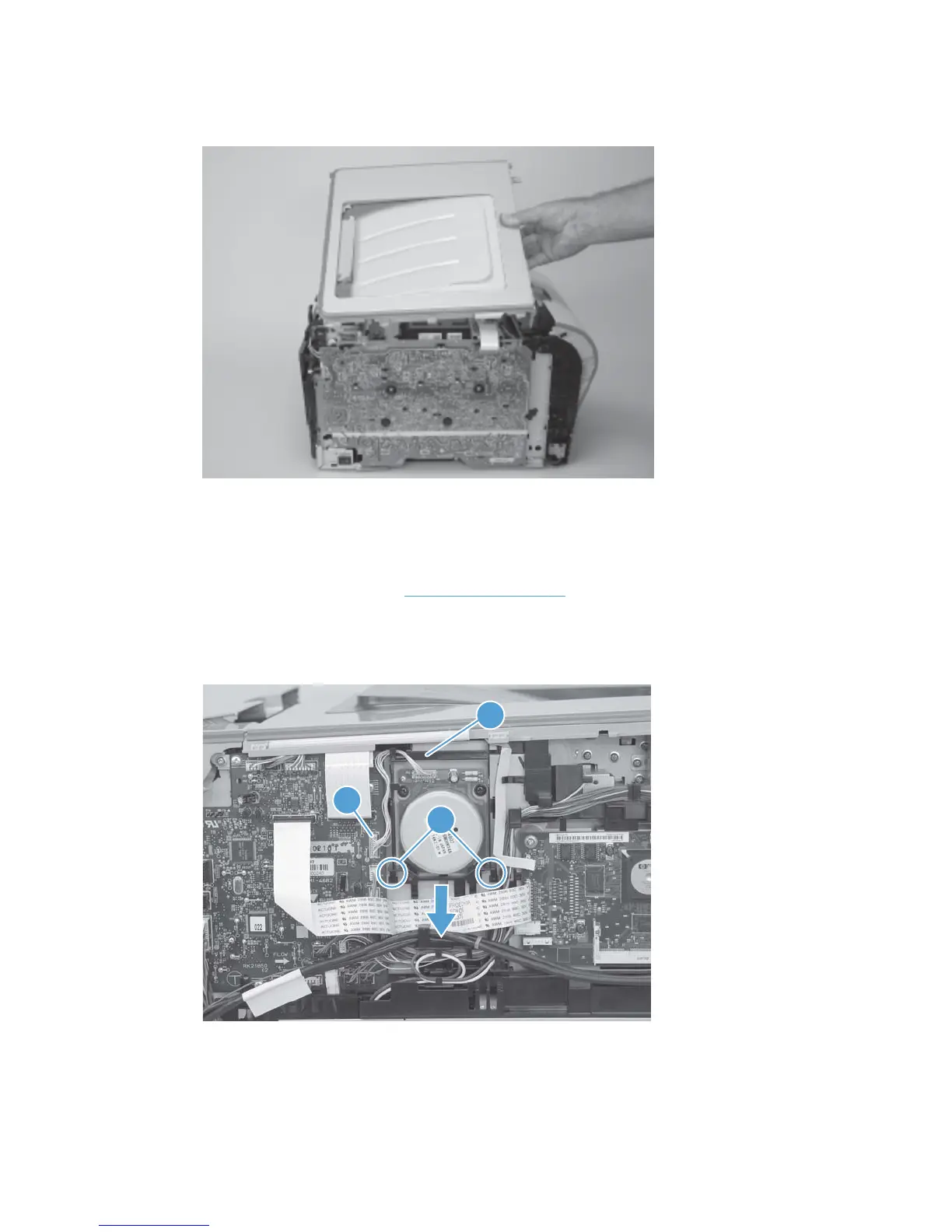

Figure 1-41 Remove the top cover (4 of 4)
Internal assemblies
Main motor
1. Remove the right cover. See Right cover on page 10.
2. Disconnect one wire-harness connector (callout 1), and then release two tabs (callout 2) to
release the retainer (callout 3). Slide the retainer down and separate it from the chassis.
Figure 1-42 Remove the main motor (1 of 2)
3
2
1
ENWW Removal and replacement procedures 27
