Connecting to a Standard TV
Connecting to component video
1 Connect the component video cable to the Component (Y, Pb, Pr) connectors.

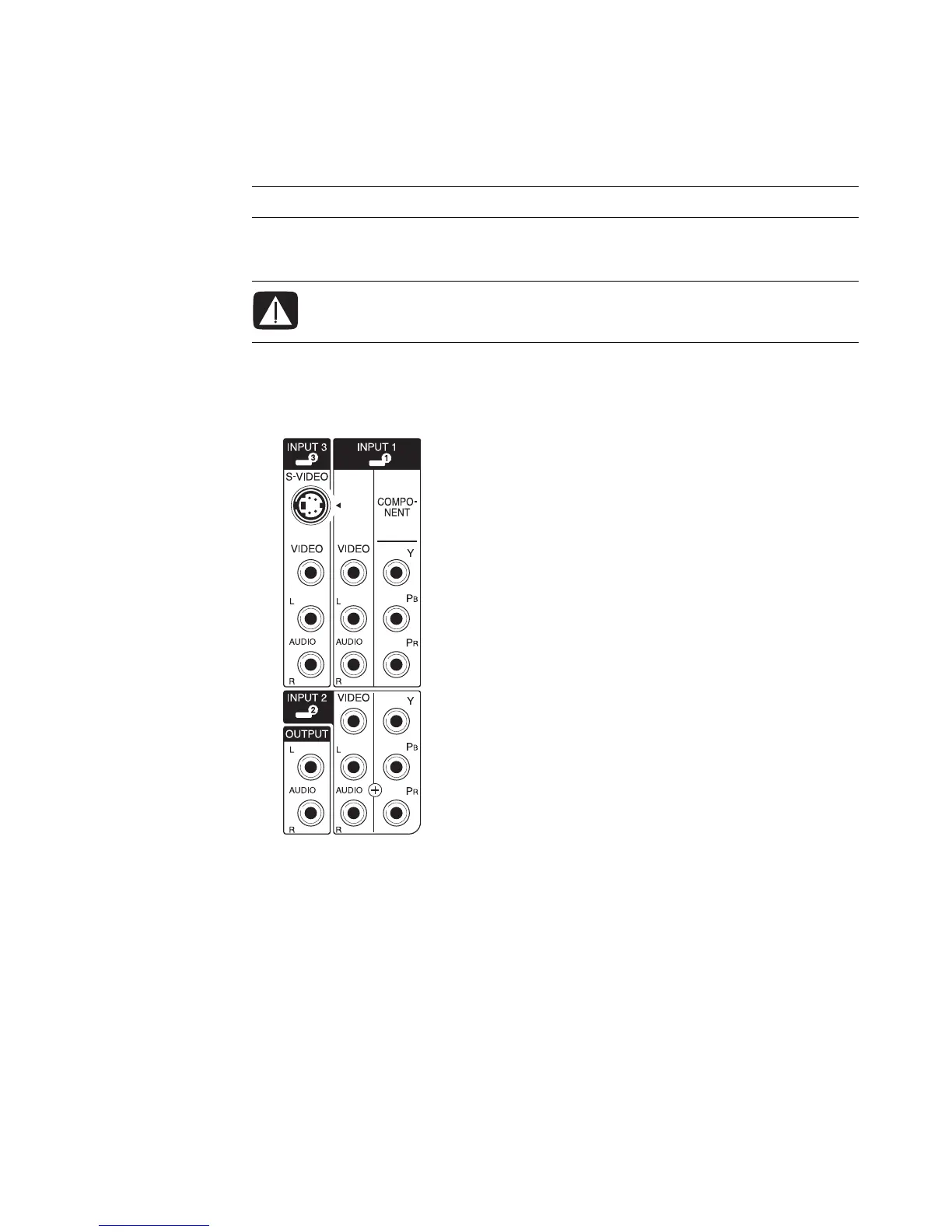

The example shows two sets of Component connectors that you can use:
Input 1 or Input 2.
2 Connect the component audio cable to the left and right Audio connectors for the
component input.
3 Connect the cables to the component device.
4 Turn on the device, and start play.
5 Plug in the computer.
6 Turn on the computer.
NOTE: Cables are sold separately.
WARNING: In this example, both Input 1 and Input 2 have both Component
and Video connectors, which share the left and right Audio connectors.
Connect only one video input for each input set.
