3.

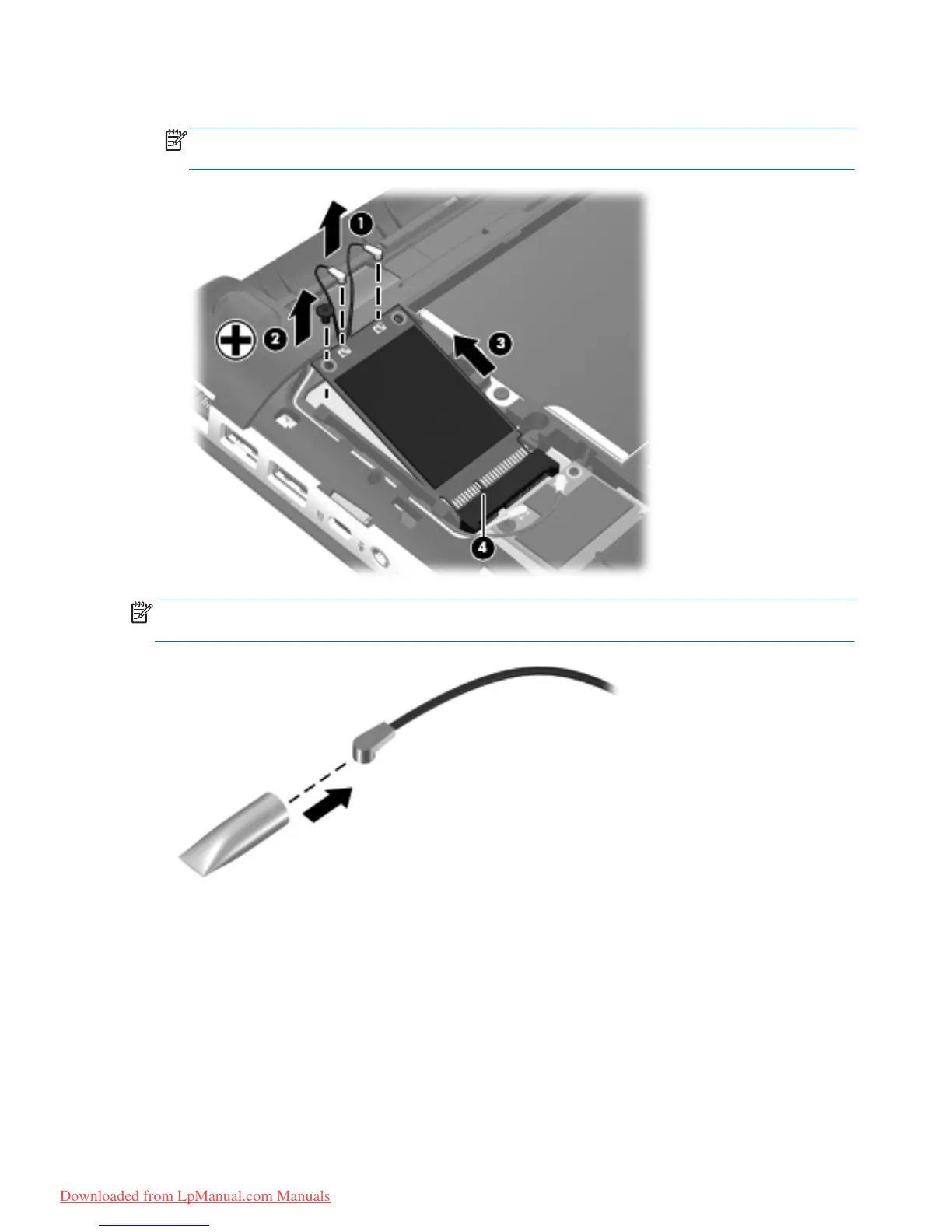

Remove the WWAN module by pulling the module away from the slot at an angle (3).
NOTE: The WWAN module is designed with a notch (4) to prevent incorrect installation into
the WWAN module socket.
NOTE: If the WWAN antennas are not connected to the terminals on the WWAN module, the
protective sleeves must be installed on the antenna connectors, as shown in the following illustration.
Reverse this procedure to install the WWAN module.
56 Chapter 4 Removal and replacement procedures
