4.

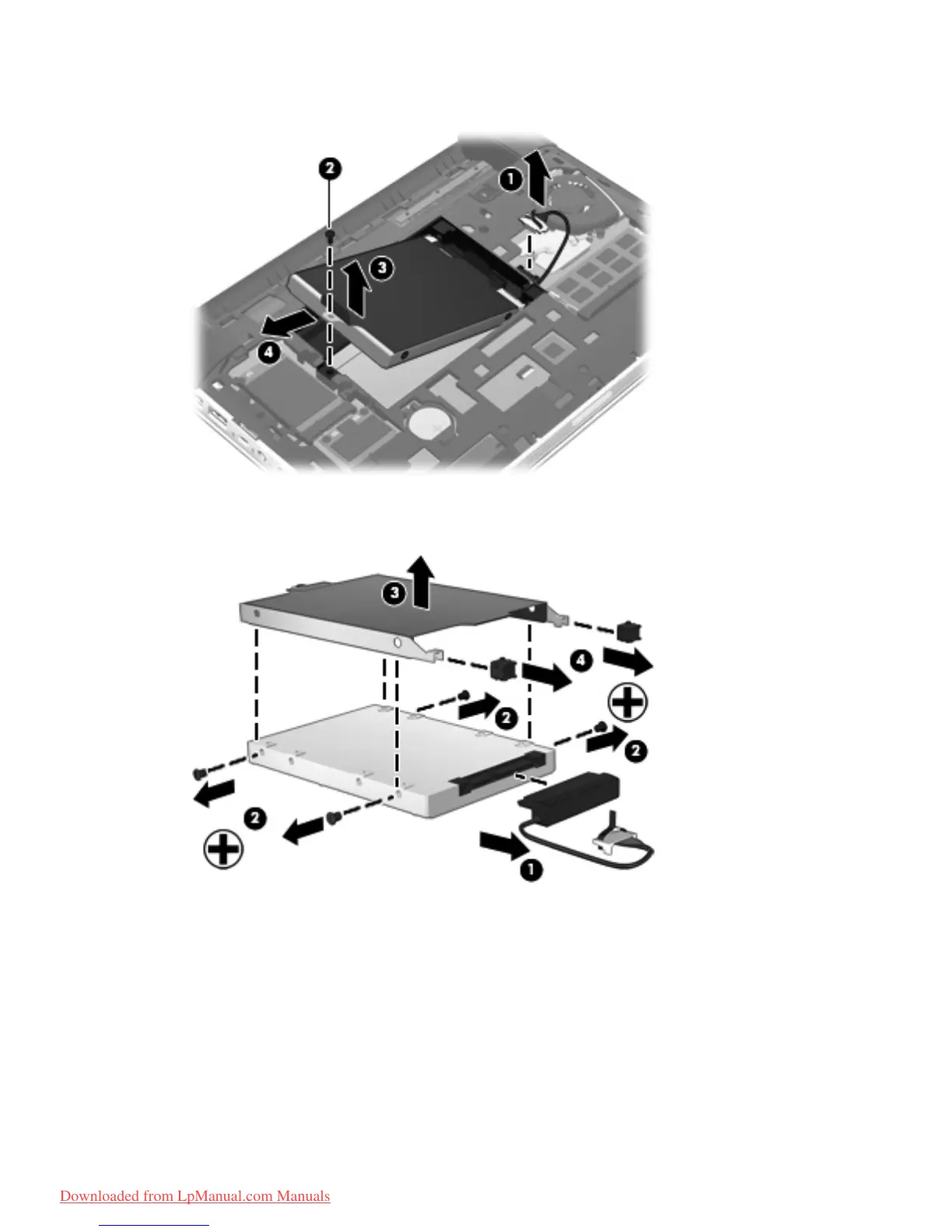

Remove the hard drive (4) by sliding it up and to the left at an angle.
5. If it is necessary to replace the hard drive connector cable (1), the hard drive screws (2), the hard
drive bracket (3), or the rubber isolators (4), remove and replace the components.
Reverse this procedure to reassemble and install the hard drive.
60 Chapter 4 Removal and replacement procedures
