HP ML110

Operations 23

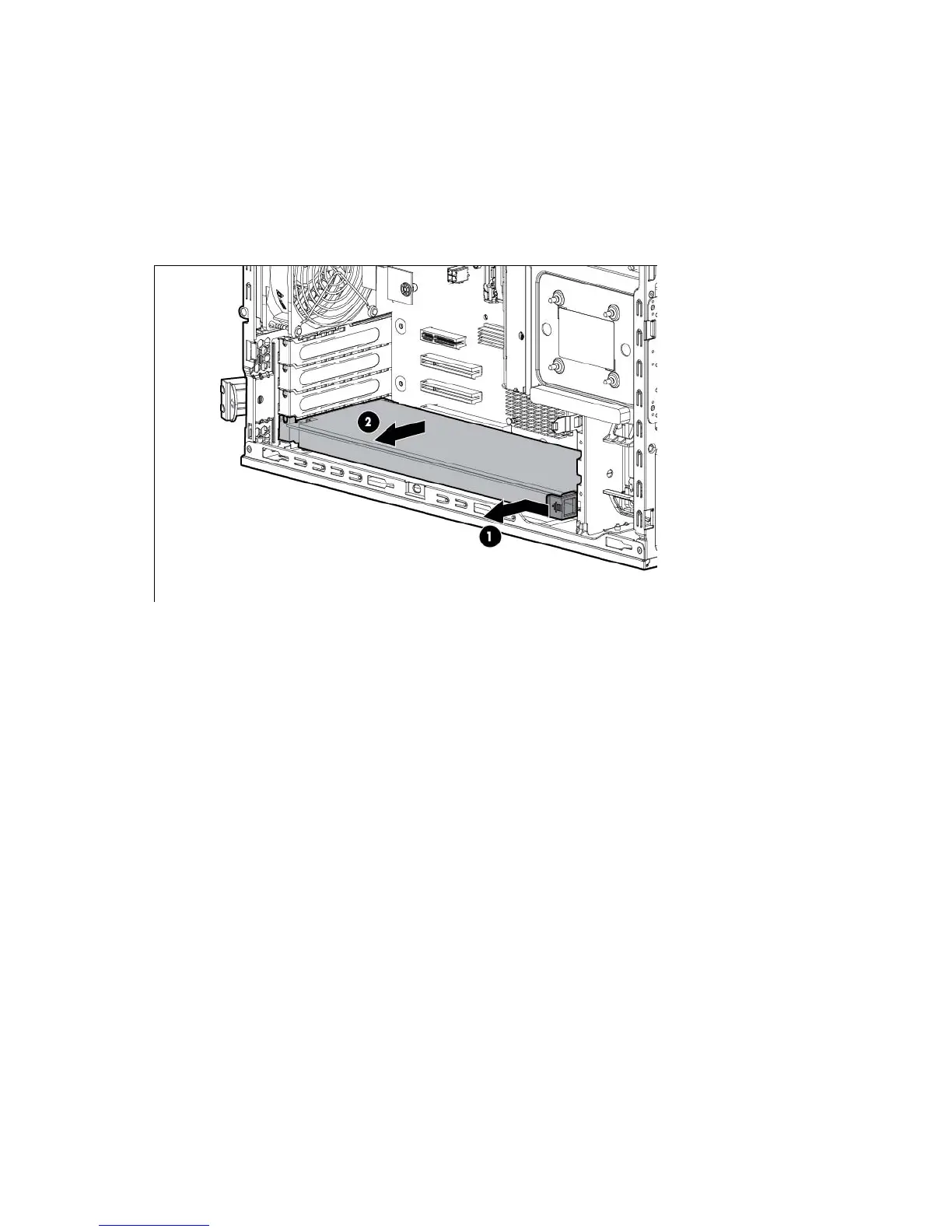

Removing the full-length expansion board retainer
1. Power down the server (on page 19).
2. Remove the access panel ("Removing the access panel" on page 20).
3. Remove the air baffle ("Removing the air baffle" on page 21).
4. Open the PCI slot cover retainer latch.
5. Remove the full-length expansion board retainer.
Installing the full-length expansion board retainer
1. Power down the server (on page 19).
2. Remove the access panel ("Removing the access panel" on page 20).
3. Remove the air baffle ("Removing the air baffle" on page 21).
4. Open the PCI slot cover retainer latch.
