Hardware options installation 38
6.

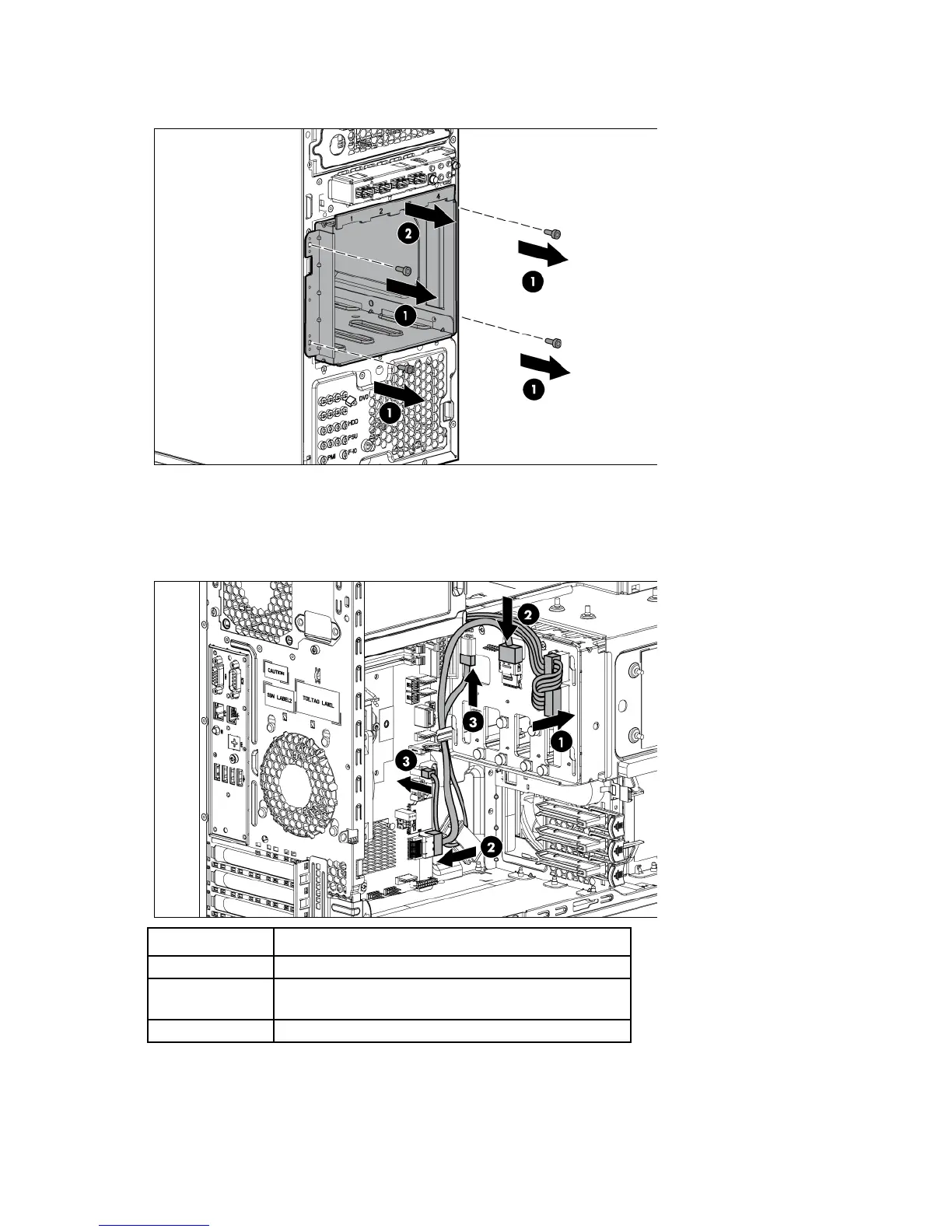

Using a T-15 Torx screwdriver, remove the four screws, and then remove the hard drive cage from the
drive cage bay.
7. Slide the optional drive cage assembly partially into the server chassis.
8. Connect the cabling to the hard drive cage. Connect the mini-SAS cable by choosing one of the
following:
o For SATA RAID support, connect the cable directly to the system board.
Item Description
1
Connect the power cable
2
Connect the mini-SAS cable to the system board mini-SAS
cable connector
3
Connect the I
2
C cable
