HP ML110

Component identification 9
4
Slot 1 PCIe2x16 (16, 8, 4, 1)
5
Slot 2 PCIe2x8 (4, 1)
6
Slot 3 PCIe2x8 (4, 1)
7
Slot 4 PCIe2x4 (1)
8
USB connectors (4)
9
HP dedicated iLO management port (option)
10
UID button/LED
11
10/100/1000 NIC1 connector/shared iLO management port
12
10/100/1000 NIC2 connector
13
Video connector
14
Serial connector

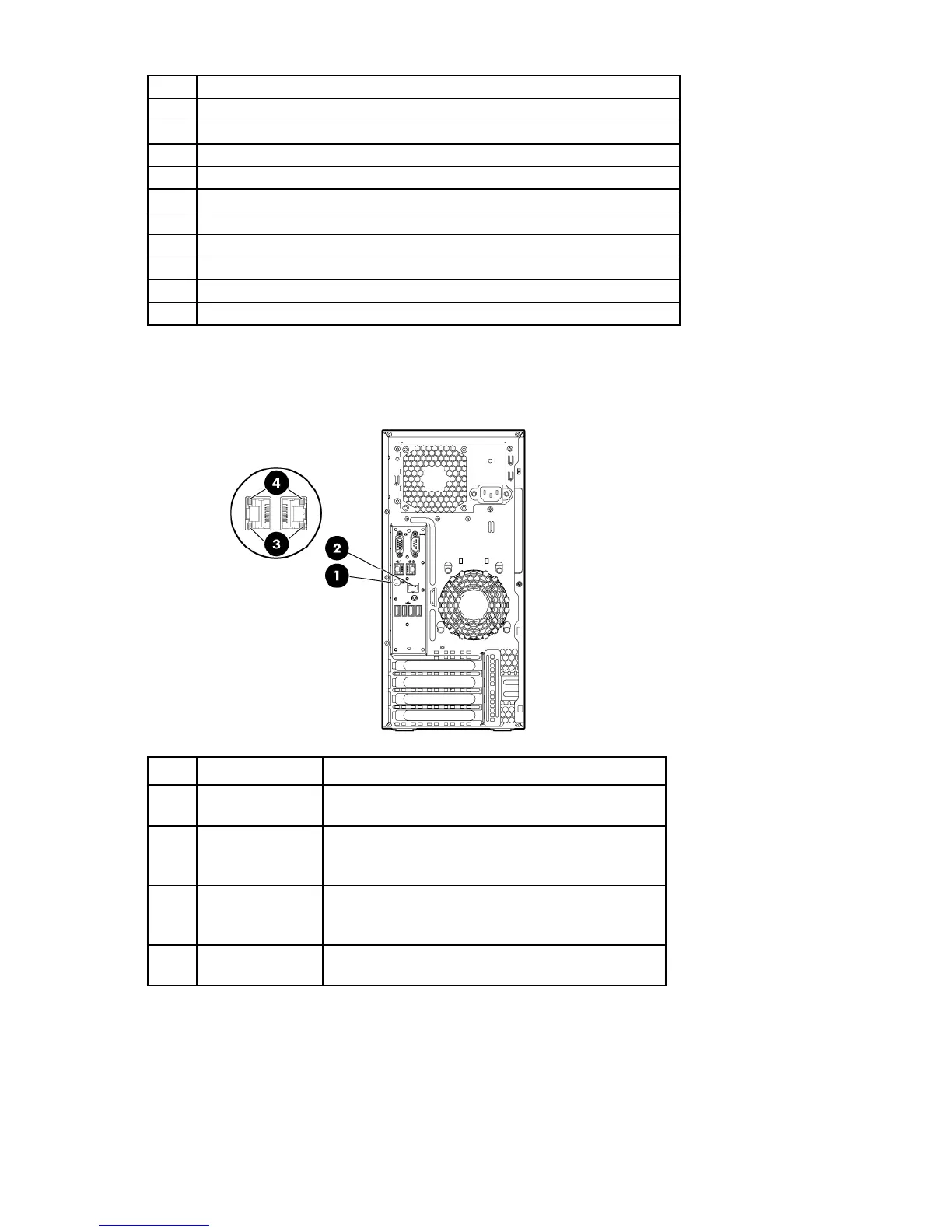

Rear panel LEDs and buttons
Item Description Status
1
UID LED/button Flashing blue = Activated
Off = System being managed remotely/deactivated
2
HP dedicated iLO
management port
option LEDs
Green = Network link
Flashing green = Network link and activity
Off = No link to network
3
NIC activity LED Green = Network activity
Flashing green = Network activity
Off = No network activity
4
NIC link LED Green = Network link
Off = No network link
