• The maximum capacity of the ADF is 200 sheets of 75 g/m
2
paper. When using

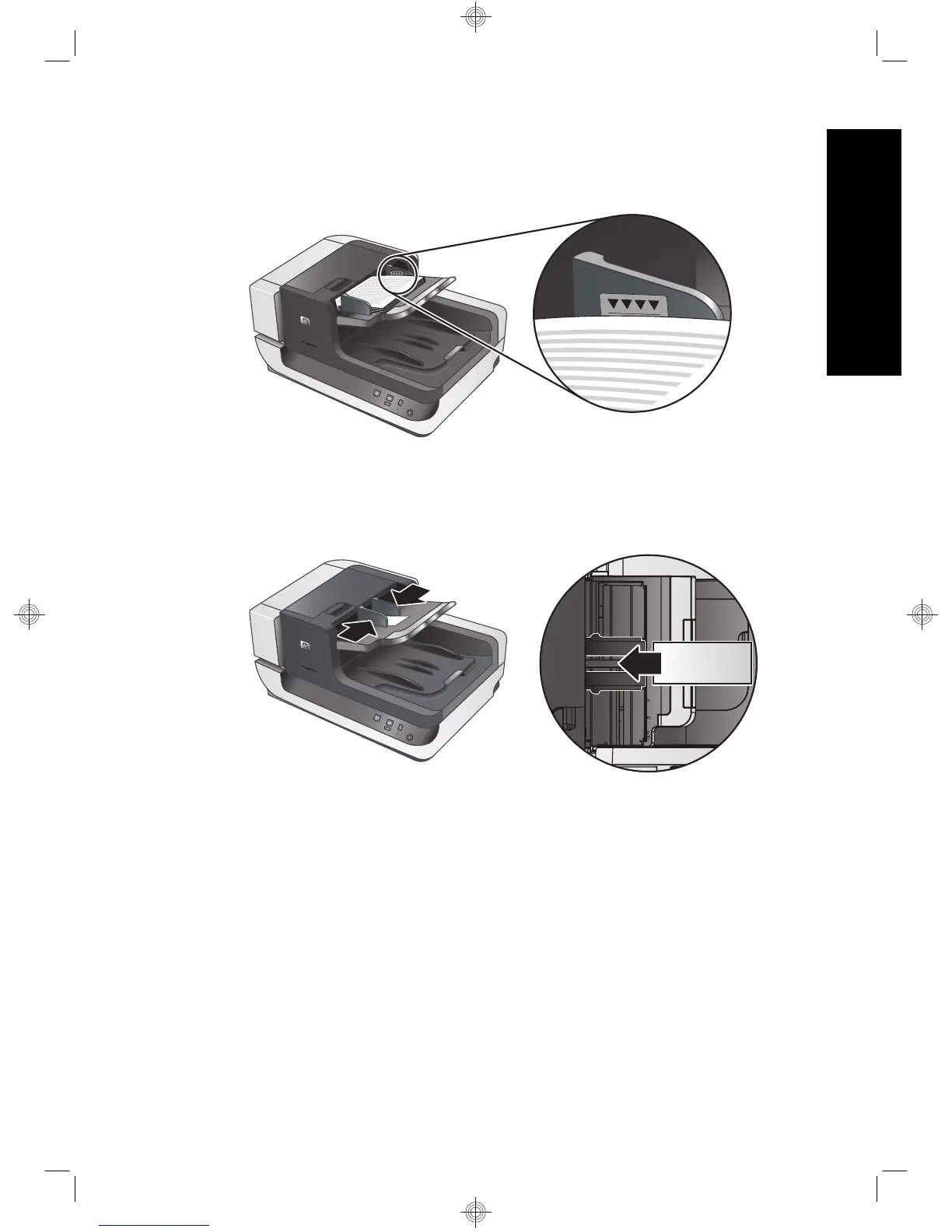

heavier paper, the maximum capacity is decreased. Use the fill line, shown below, as
a guide for the maximum height of the document stack.
• For small or narrow documents, load the edge that is less than 148 mm pointing into
the feeder so that the longer edge can be pulled into the feeder and passed along by
the feed rollers.
• When loading small or lightweight documents, such as A6 cards (index cards) or U.S.
check carbons, load a stack of at least five documents to ensure that the ADF properly
detects and feeds the stack. When scanning fewer than five small or lightweight
documents, scan the documents by placing them on the scanner glass.
• When loading long documents that hang over the end of the input tray, pull out the
input tray extender (1), and then load the documents (2).
Load original documents in the automatic document feeder 9
English
