HP nx6125 - Notebook PC User Manual

Removal and Replacement Procedures
Maintenance and Service Guide 6–7

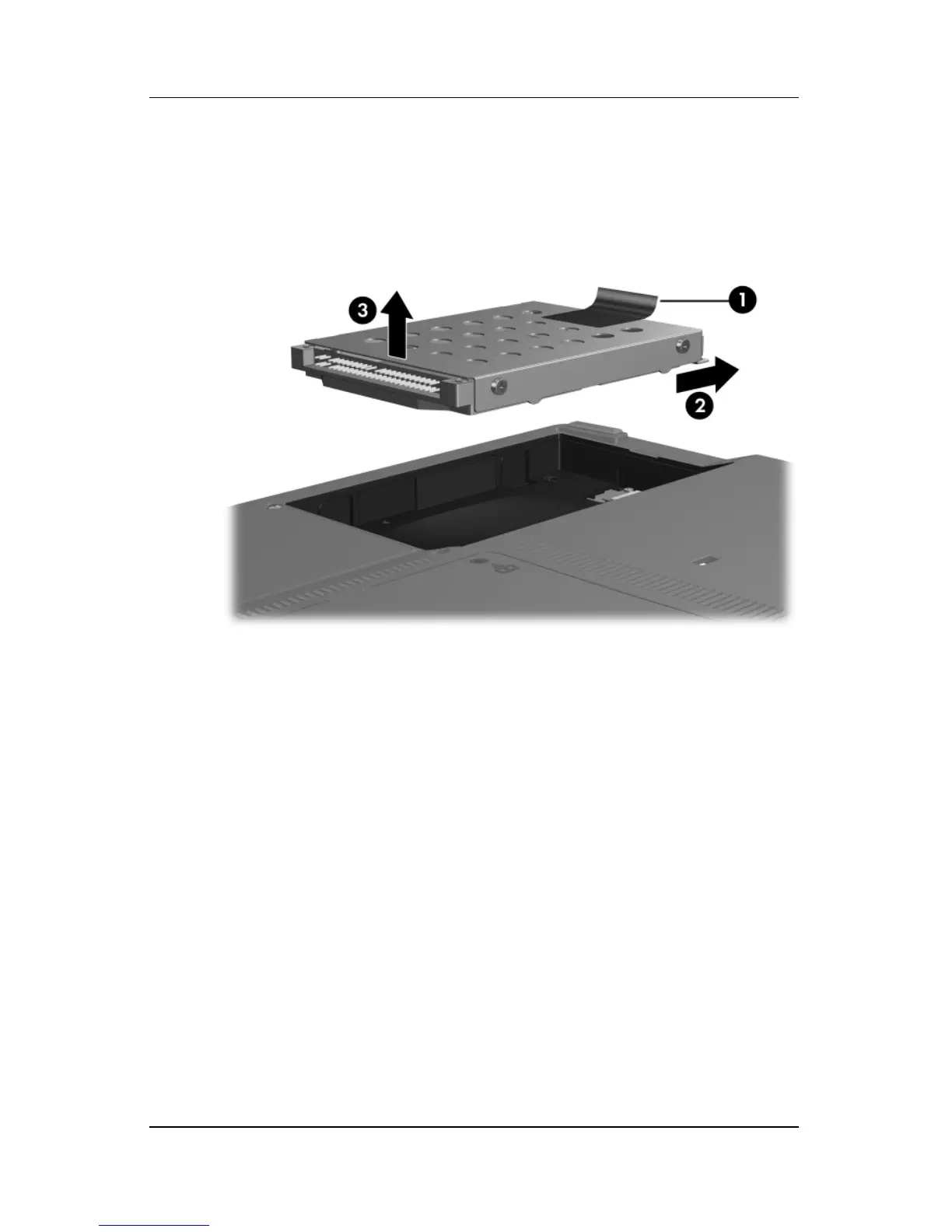

5. Grasp the mylar tab 1 on the right side of the hard drive and
slide the hard drive to the right 2 to disconnect it from the
system board.
6. Remove the hard drive from the hard drive bay 3.
Removing the Hard Drive

HP nx6125 - Notebook PC Specifications

General

Graphics	ATI Radeon Xpress 200M
Chipset	ATI Radeon Xpress 200M
Processor	AMD Turion 64 / Mobile AMD Sempron
Display	15.0-inch TFT XGA
RAM	Up to 2 GB DDR SDRAM
Storage	40/60/80/100 GB Hard Disk Drive
Operating System	Microsoft Windows XP Professional
Memory	Up to 2 GB DDR SDRAM
Hard Drive	40/60/80/100 GB
Optical Drive	DVD-ROM, CD-RW/DVD Combo, DVD+/-RW
Wireless	802.11b/g
Battery	6-cell Lithium-Ion battery
Networking	10/100 Ethernet
Ports	3 x USB 2.0, VGA, RJ-11, RJ-45, S-Video
