HP nx6125 - Notebook PC User Manual

Removal and Replacement Procedures
Maintenance and Service Guide 6–25
5. Release the zero insertion force (ZIF) connector to which
the keyboard cable is attached and disconnect the
keyboard cable.

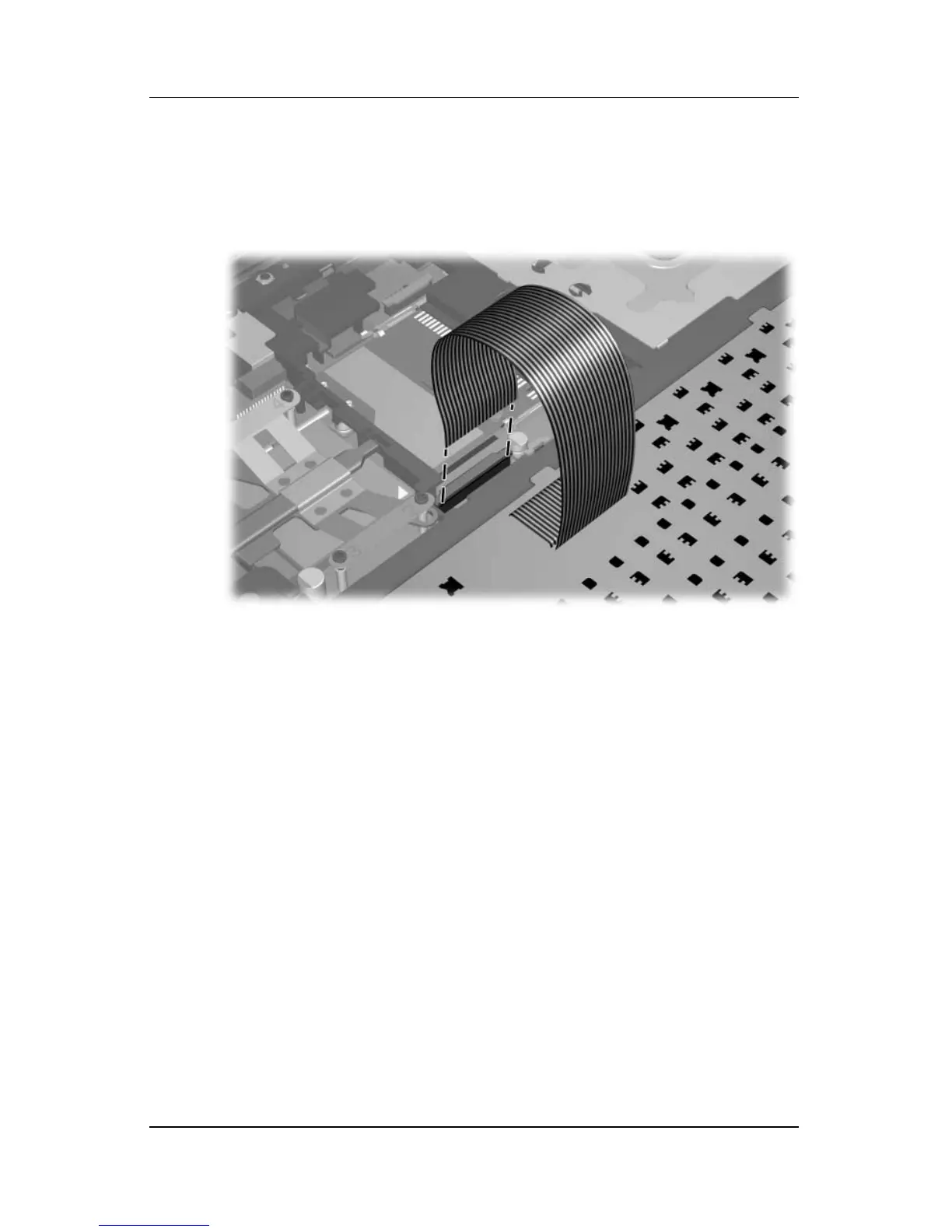

Disconnecting the Keyboard Cable
6. Remove the keyboard.
Reverse the above procedure to install the keyboard.

HP nx6125 - Notebook PC Specifications

General

Graphics	ATI Radeon Xpress 200M
Chipset	ATI Radeon Xpress 200M
Processor	AMD Turion 64 / Mobile AMD Sempron
Display	15.0-inch TFT XGA
RAM	Up to 2 GB DDR SDRAM
Storage	40/60/80/100 GB Hard Disk Drive
Operating System	Microsoft Windows XP Professional
Memory	Up to 2 GB DDR SDRAM
Hard Drive	40/60/80/100 GB
Optical Drive	DVD-ROM, CD-RW/DVD Combo, DVD+/-RW
Wireless	802.11b/g
Battery	6-cell Lithium-Ion battery
Networking	10/100 Ethernet
Ports	3 x USB 2.0, VGA, RJ-11, RJ-45, S-Video
