HP nx6125 - Notebook PC User Manual

6–56 Maintenance and Service Guide
Removal and Replacement Procedures
4. Turn the system board top-side up with the audio jacks,
USB ports, and external monitor port toward you.

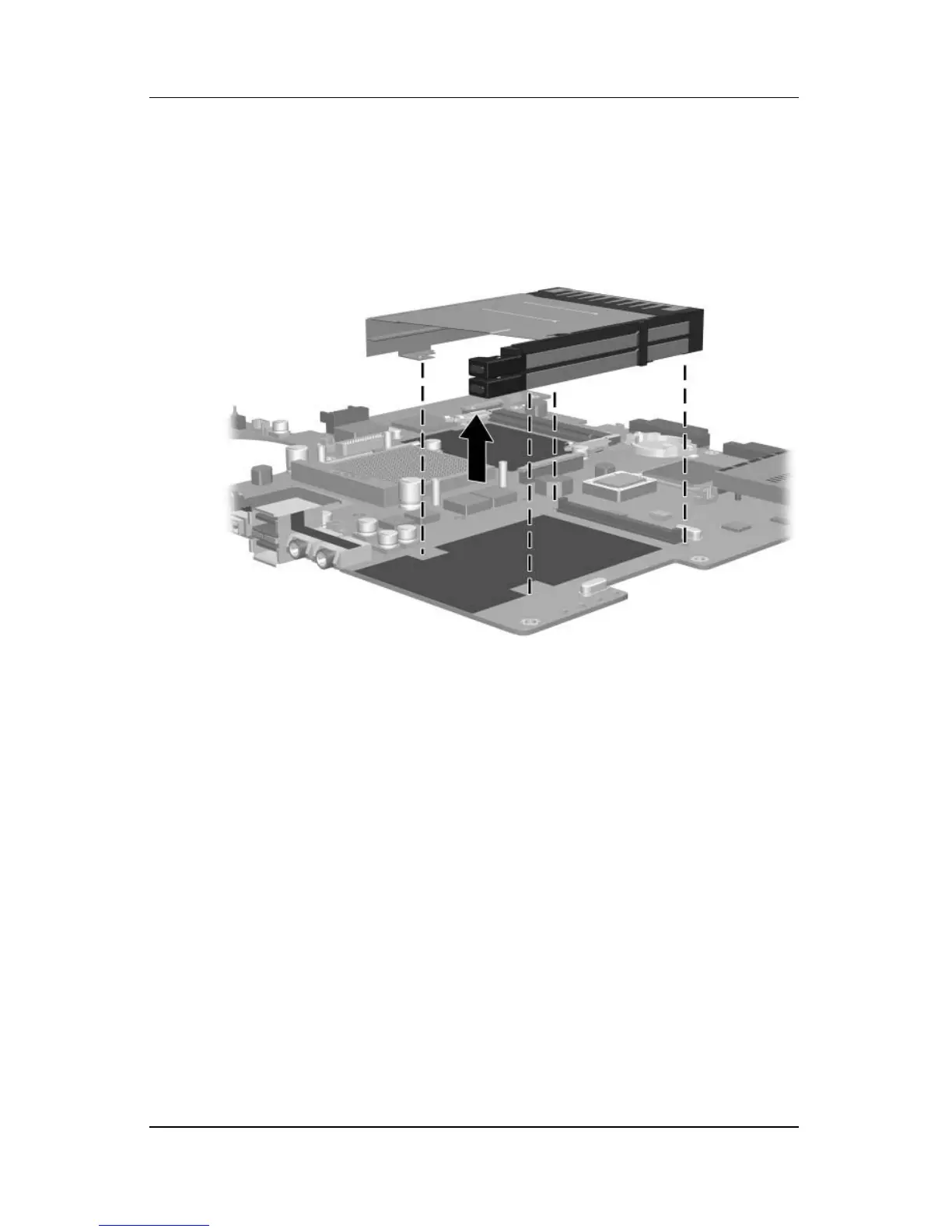

5. Lift the rear edge of the PC Card assembly to disconnect it
from the system board and remove the PC Card assembly.
Removing the PC Card Assembly
Reverse the above procedures to install the PC Card assembly.

HP nx6125 - Notebook PC Specifications

General

Graphics	ATI Radeon Xpress 200M
Chipset	ATI Radeon Xpress 200M
Processor	AMD Turion 64 / Mobile AMD Sempron
Display	15.0-inch TFT XGA
RAM	Up to 2 GB DDR SDRAM
Storage	40/60/80/100 GB Hard Disk Drive
Operating System	Microsoft Windows XP Professional
Memory	Up to 2 GB DDR SDRAM
Hard Drive	40/60/80/100 GB
Optical Drive	DVD-ROM, CD-RW/DVD Combo, DVD+/-RW
Wireless	802.11b/g
Battery	6-cell Lithium-Ion battery
Networking	10/100 Ethernet
Ports	3 x USB 2.0, VGA, RJ-11, RJ-45, S-Video
