Set up fax
1. For users in Europe
If your country or region is listed below, visit www.hp.com/uk/faxcong for setup information. Otherwise,
follow the instructions in this guide.
• Austria
• Belgium
• Denmark
• Finland
• France
• Germany
• Ireland
• Italy
• Norway
• Netherlands
• Portugal
• Spain
• Sweden
• Switzerland
• United Kingdom
2. Connect the phone line
Using the phone line for fax only
If a phone cord is provided with the printer, HP recommends that you use this phone cord. If the phone cord is
not long enough, use a coupler and another phone cord to extend.
a. Connect one end of the phone cord to the phone wall jack.
b. Connect the other end to the port labeled 1-LINE on the back of the printer.
Note: DO NOT insert the phone cord into the port labeled 2-EXT.
c. If you have subscribed to a DSL/ADSL service, connect a DSL/ADSL lter between the printer port labeled
1-LINE and the phone wall jack
* TAM: Telephone Answering Machine
** Fax on VoIP: Fax on Voice over Internet Protocol
Fax on VoIP**
3. Connect additional devices

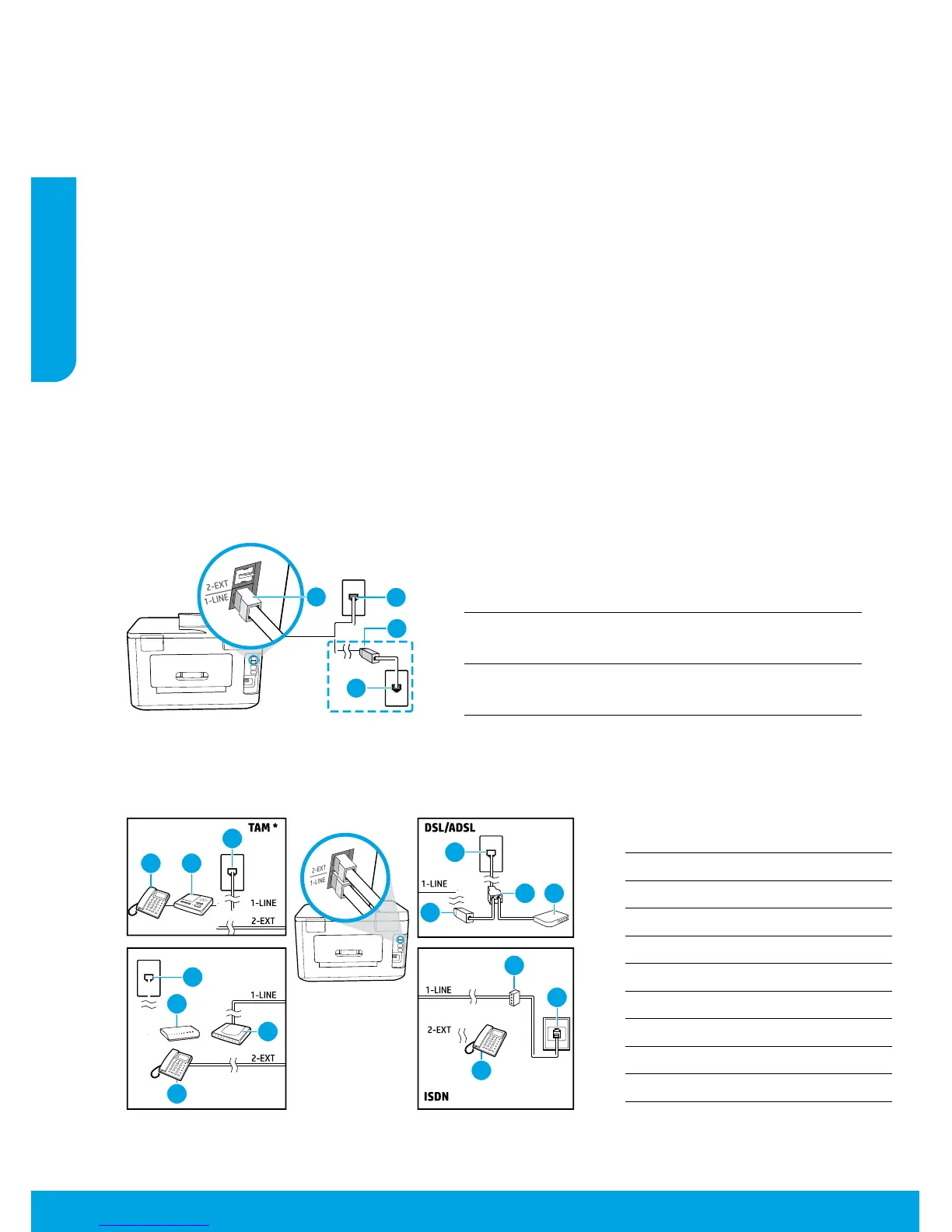

If you have other devices to connect, connect them as shown in the diagram below:
1
Phone wall jack
2
Fax port (labeled 1-LINE) on the back of the printer
Note: Do not insert into the port labeled 2-EXT.
3
DSL/ADSL lter (provided by the telephone company
or service provider)
1 Phone wall jack
2 Parallel splitter
3 DSL/ADSL modem
4 Telephone answering machine
5 Telephone
6 ISDN wall jack
7 Terminal adapter or ISDN router
8 Broadband modem
9 DSL/ADSL lter
10 Analog telephone adaptor
You can set up fax using the software wizard (recommended) during the software installation or after installation
using Fax Setup Wizard from the software (Windows) or Basic Fax Settings from HP Utility (OS X), or continue with
the steps below.
1
4
5
1
8
5
10
1
2 3
9
6
5
7
1-LINE
1
1
3
