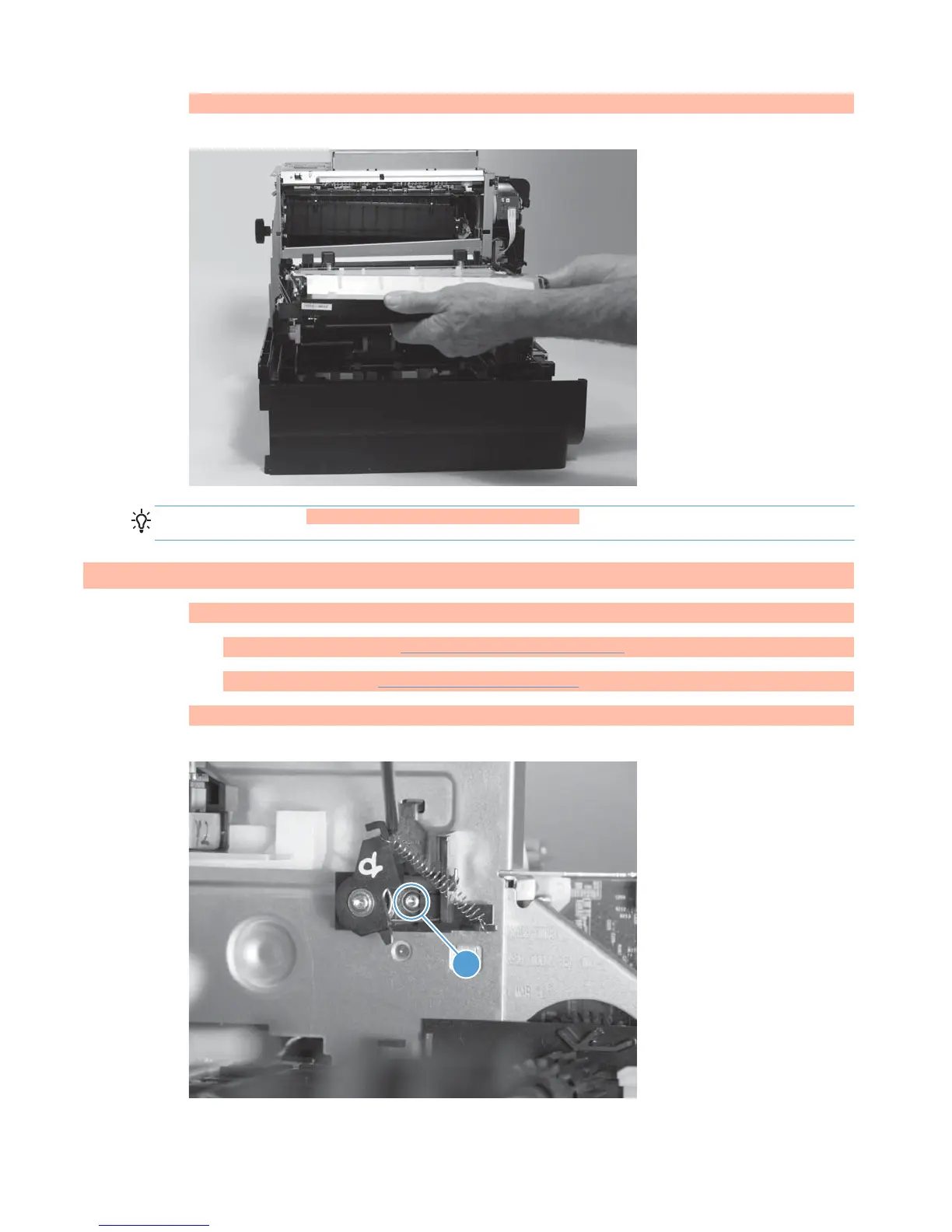

7. Lift the web wipe cartridge from the product.
Figure 1-67 Remove the web wipe assembly (6 of 6)
Align the service sled with the case part.
Web wipe advance assembly
1. Remove the following components:
●
Web wipe assembly.
●
Right cross brace.
2.
Remove one screw (callout 1) from behind the flag.
Figure 1-68 Remove the web wipe advance assembly (1 of 2)
1
