3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items contained
in the product that require selective treatment (with descriptions and arrows identifying locations).

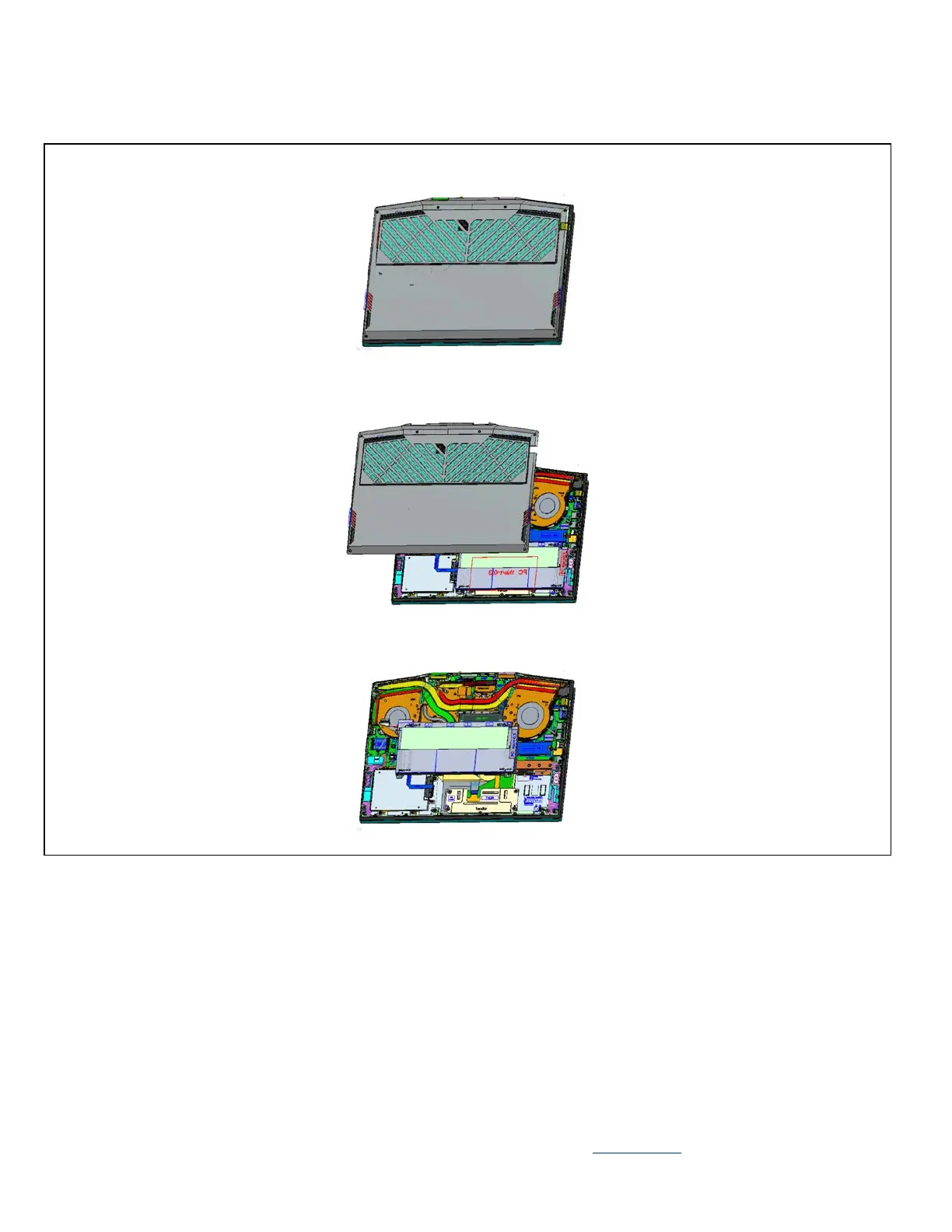

Disassembly process:
Step1: Remove log low assy
Step2: Remove battery pack
To Next Page
