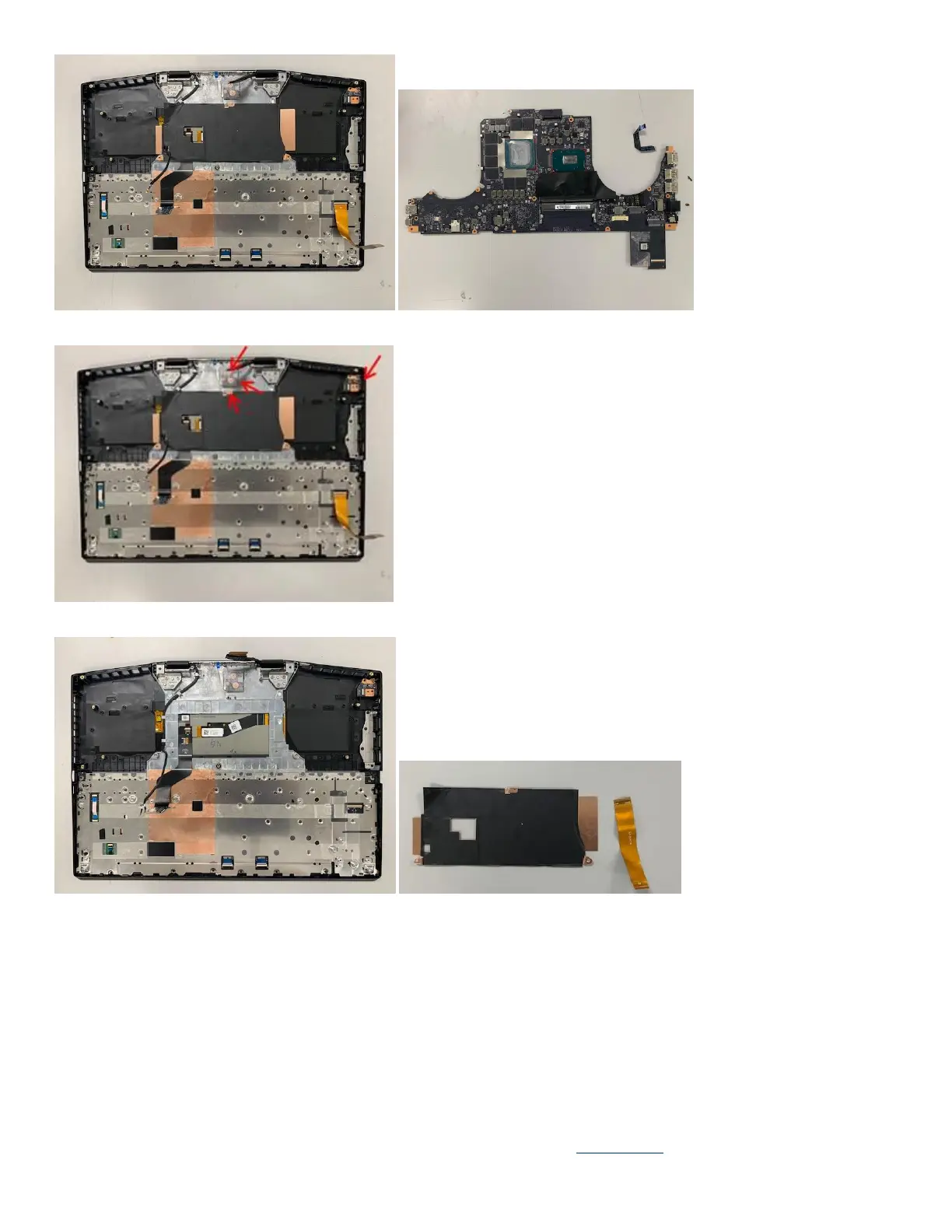

3.33 Dis-fasten Cu plate screw *1/ Power screw*1 and IR DB screw*2
3.34 Remove Cu Plate and KB FPC
3.35 Remove 2
nd
DB with 2
nd
Panel FPC / IR DB with IR FFC and Power DB
