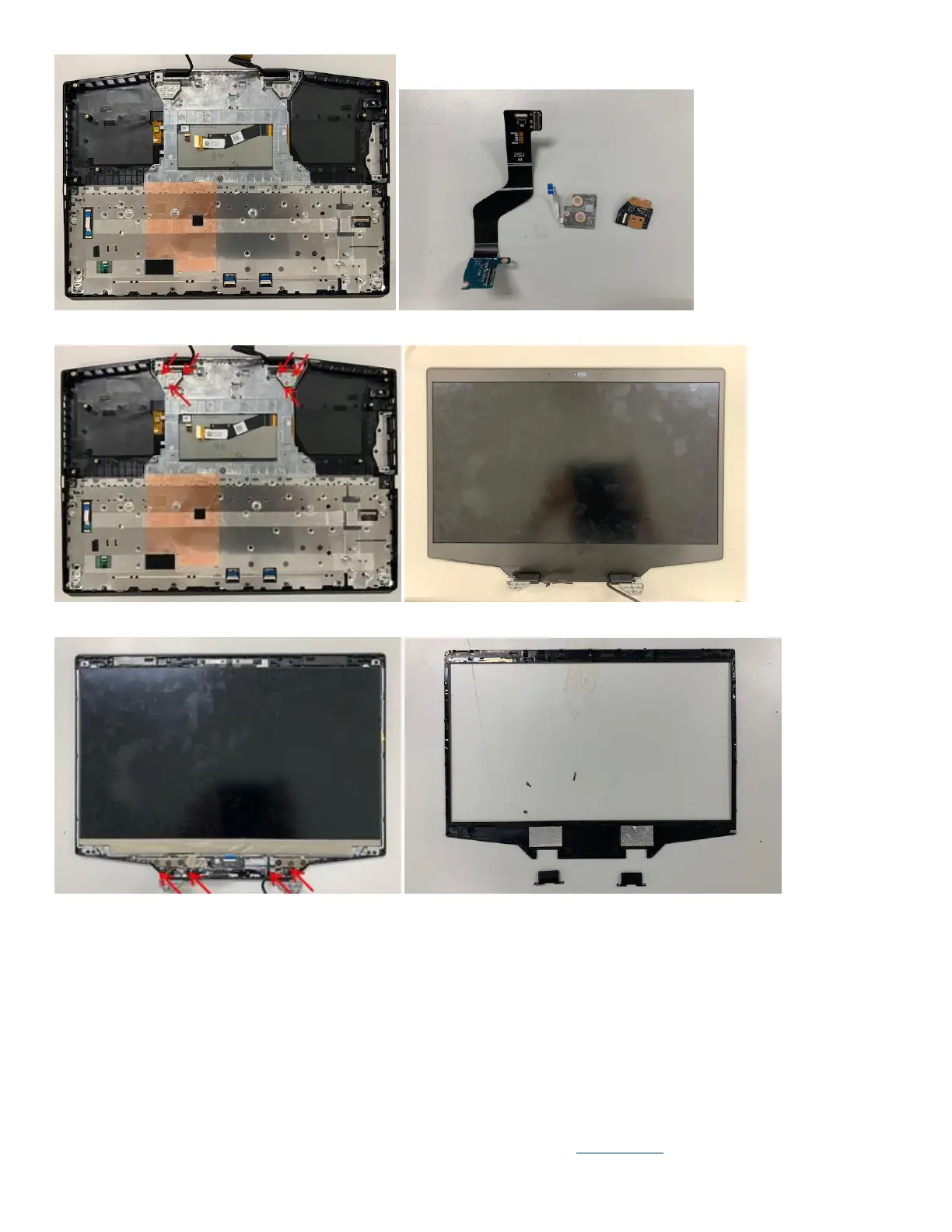

3.36 TOP remove release, dis-fasten Hinge screw *6 and remove LCD part
3.37 Remove Bezel , dis-fasten hinge cap screw*2 and remove hing cap*2PCS
3.38 Dis-fasten Hinge screw*6
