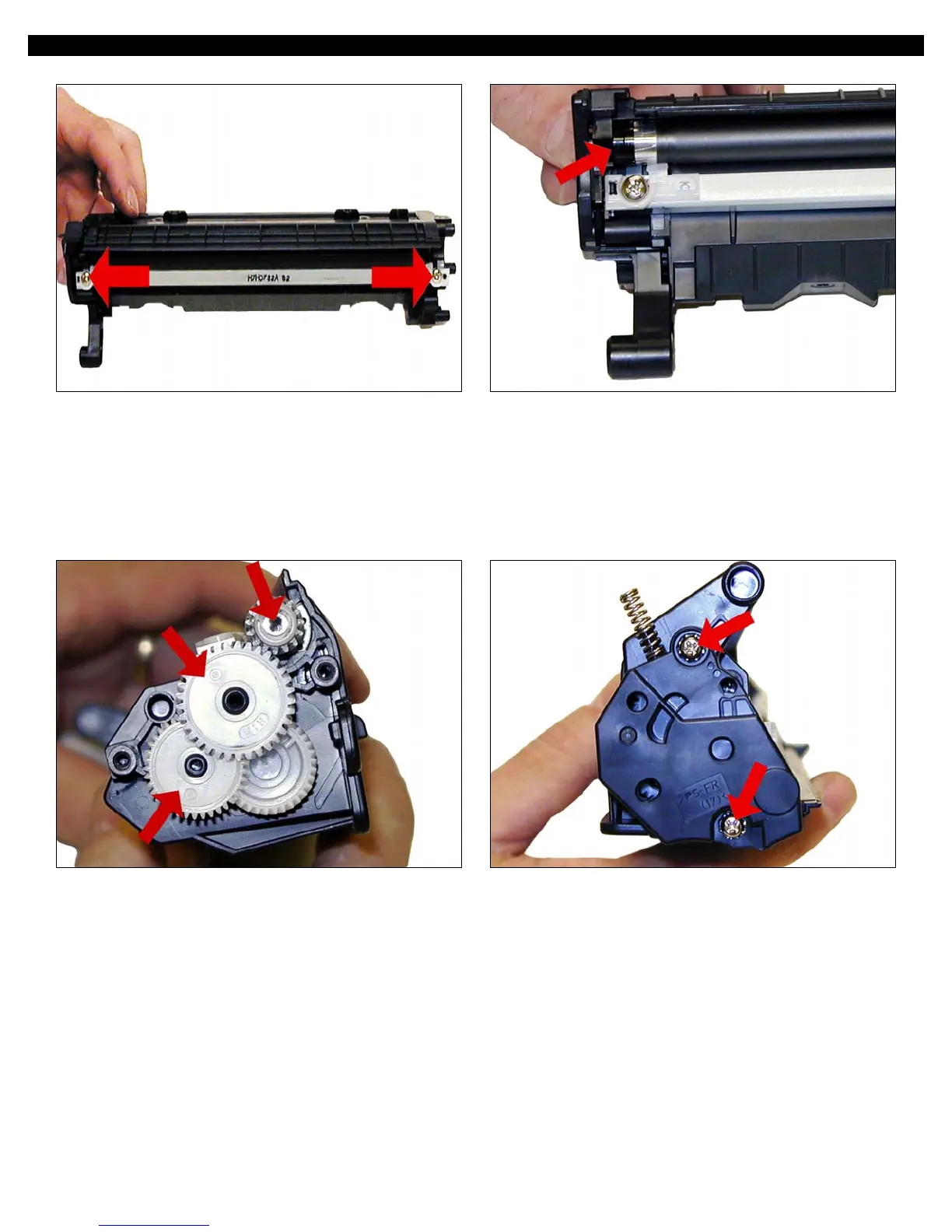

21. Install the doctor blade and two screws.
22. Install the magnetic roller black bushing side first. Turn the
roller until the keyed end locks in place.
23. Install the gears as shown. 24. Install the end cap and screws.
