5.

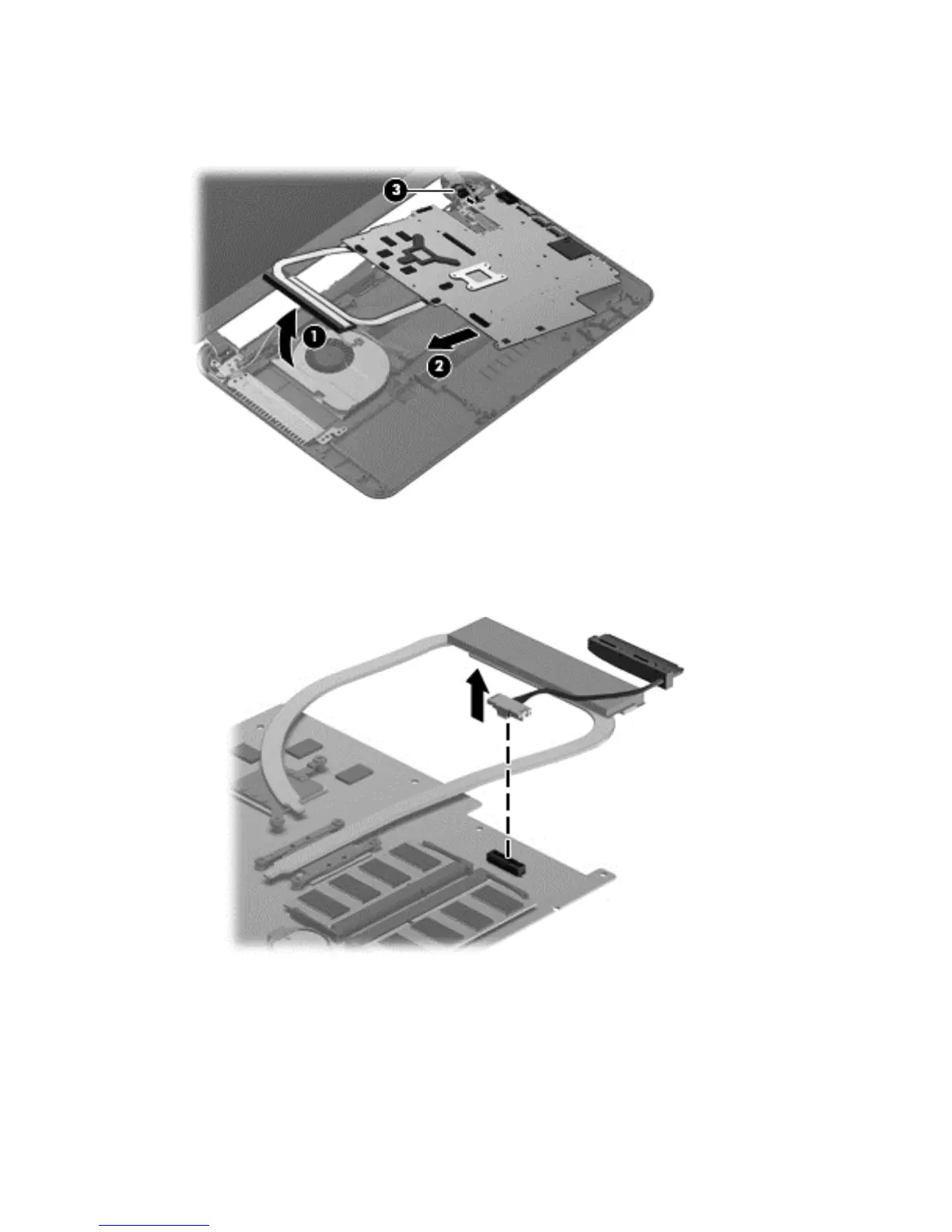

Remove the system board by sliding it up and to the left at an angle (2).
6.
Disconnect the power connector cable (3).
7.
Remove the hard drive cable:
a.
Turn the system board upside down, with the front toward you.
b.
Disconnect the hard drive cable from the system board.
Reverse this procedure to install the system board.
68 Chapter 4 Removal and replacement procedures
