26 Getting Started Guide
This feature lets you install a special bay cover (optional) on the PC chassis for using
an HP camera and HP camera docking station. (Both the camera and the docking
station are sold separately.) The camera includes a camera cradle, and the docking
station includes cables.
This topic describes how to:
• Install the special bay cover on your PC chassis.
• Assemble the camera cradle (included with the camera), and position it on the
docking station.
• Place the docking station into the chassis bay, and thread the cables.
• Insert the camera.
1 Open the bay cover (A in figure 1). Hold the cover on each side near the
hinges, then lift the cover and slide it toward the back of the chassis (C in
figure 1). Gently lift it off.
To make it easy to insert the cables during step 3, grasp the tab (T in figure 5)
and pull it out toward the front of the chassis (E in figure 3). Replace the tab
after threading the cables.

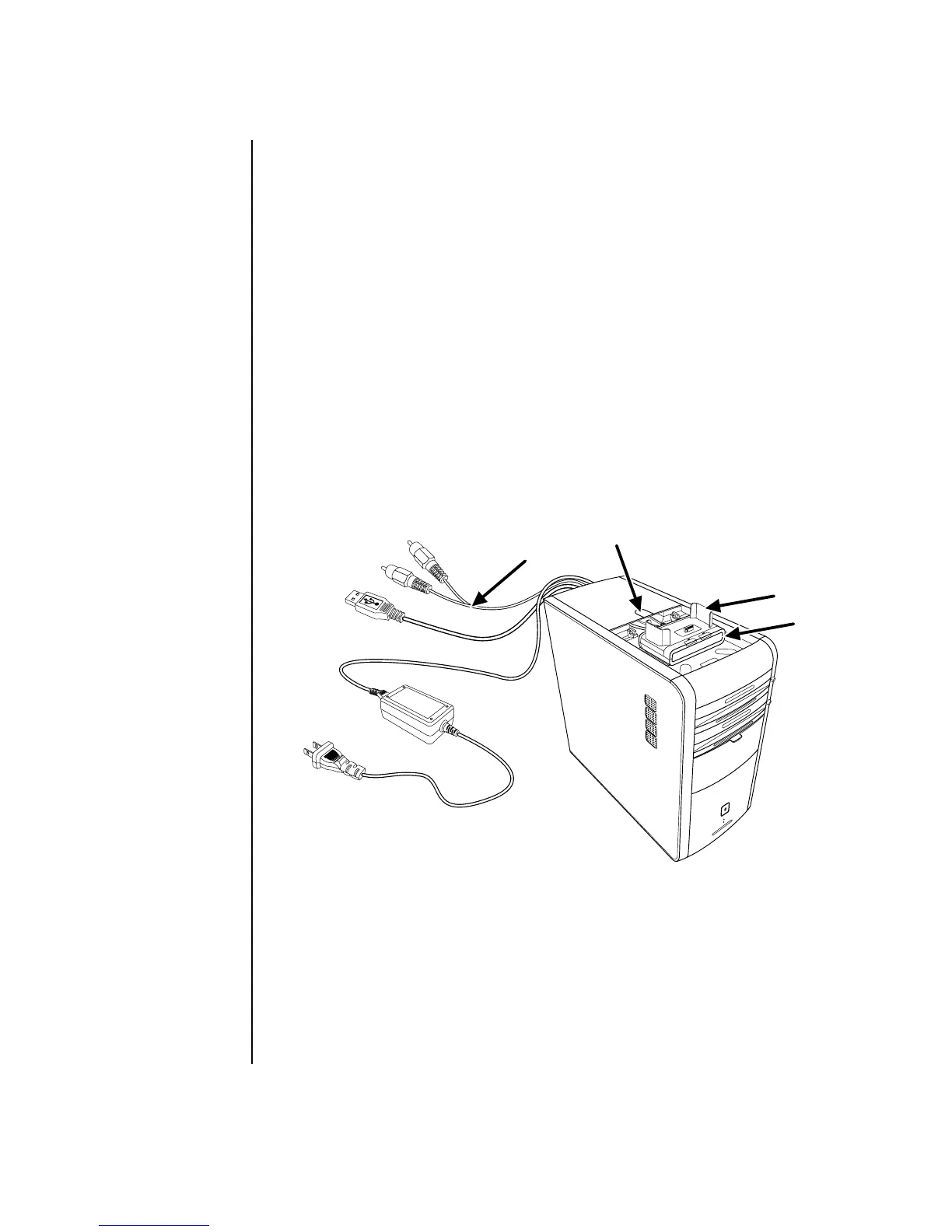

Multistorage bay chassis figure 5
2 Place the camera cradle (H in figure 5) (included with the camera) onto the
docking station (J in figure 5).
3 Place the docking station into the bay. Thread the data cables (K and L in
figure 5) and power cable (M in figure 5) through the cable tunnel opening at
the back of the bay and connect them to the docking station.
4 Put the new cover on the cover hinges (P in figure 6). Close the cover over the
docking station.
h
p
d
vd
w
rite
r &
c
d
-w
rite
r
e
xp
a
nsio
n /
b
ay
h
p
p
a
vilio
n
00
0
0x
x
x
J
T
M
K
L
H
