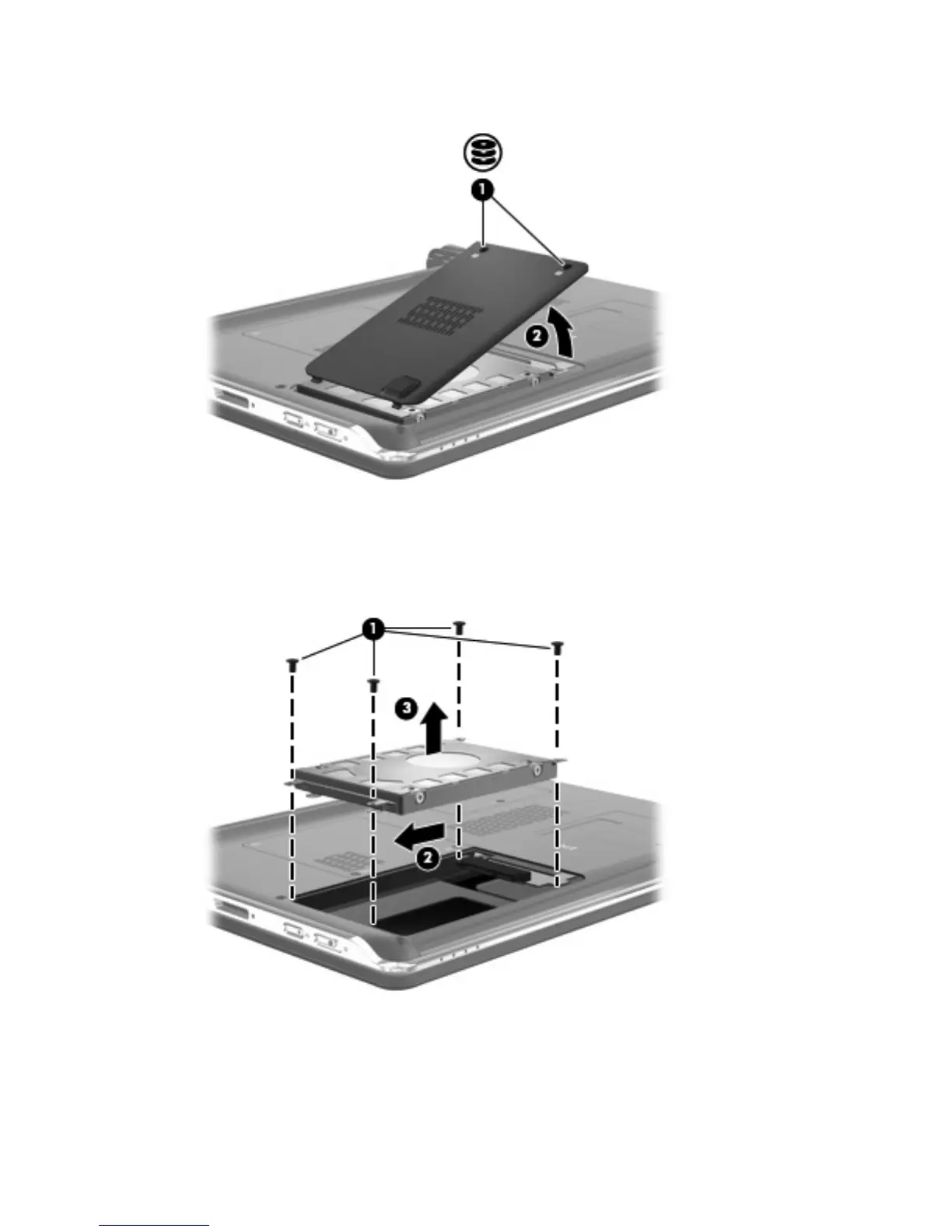

8. Lift the hard drive cover away from the computer (2).
9. Loosen the 4 screws that secure the hard drive to the computer (1).
10. Pull the hard drive to the left (2) to disconnect the hard drive.
11. Lift the hard drive (3) out of the hard drive bay.
To install a hard drive:
1. Insert the hard drive into the hard drive bay (1).
2. Pull the hard drive (2) to the right until the hard drive snaps into place.
21
