5.

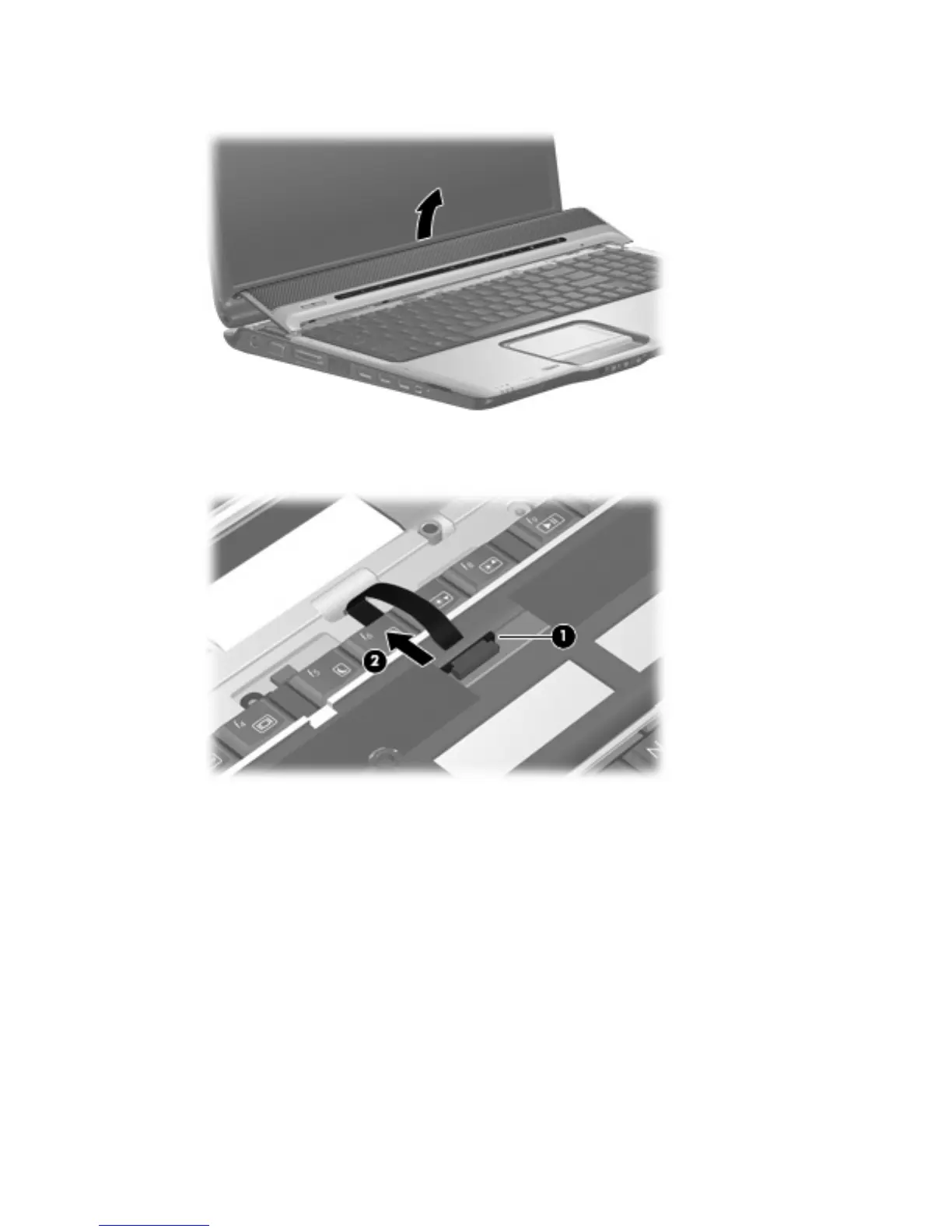

Lift the rear edge of the switch cover and swing it forward until it rests on the keyboard.
6. Release the zero insertion force (ZIF) connector (1) to which the LED board cable is connected and
disconnect the cable (2) from the LED board.
7.
Remove the switch cover.
Reverse this procedure to install the switch cover.
Component replacement procedures 63
