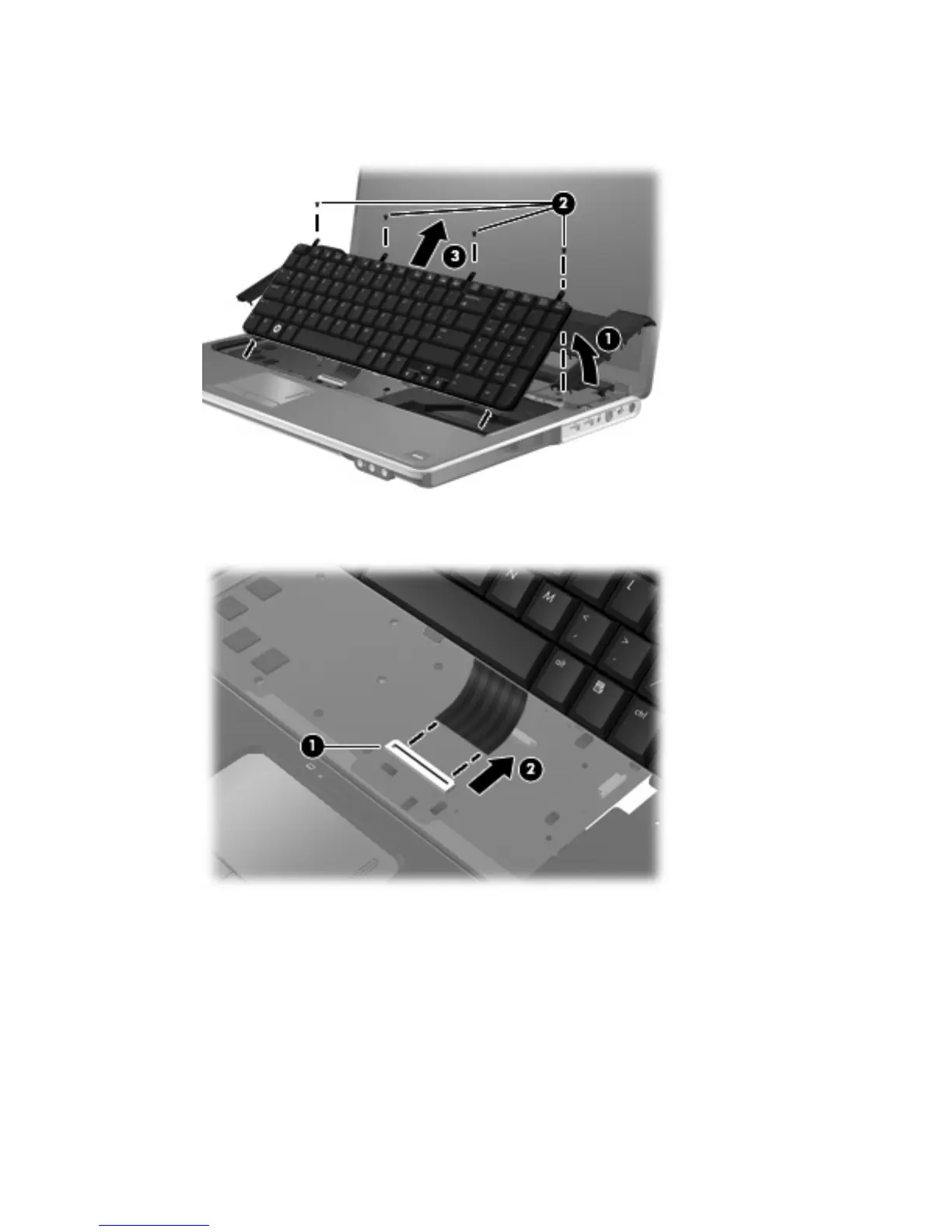

6. Remove the four Phillips PM2.0×4.0 screws (2) that secure the keyboard to the computer.
7. Lift the keyboard (3) until the keyboard connector on the system board is accessible.
8. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is connected and
disconnect the cable (2) from the system board.
9. Remove the keyboard.
10. Disconnect the power button board cable (1) from the low insertion force (LIF) connector on the
system board.
Component replacement procedures 59
