19. If it is necessary to replace the display bezel or any of the display assembly internal components,
remove the following screw covers and screws:
(1) Two rubber screw covers on the display bezel bottom edge. The display rubber screw covers
are included in the Display Rubber Kit, spare part number 516308-001.
(2) Two Phillips PM2.5×6.5 screws

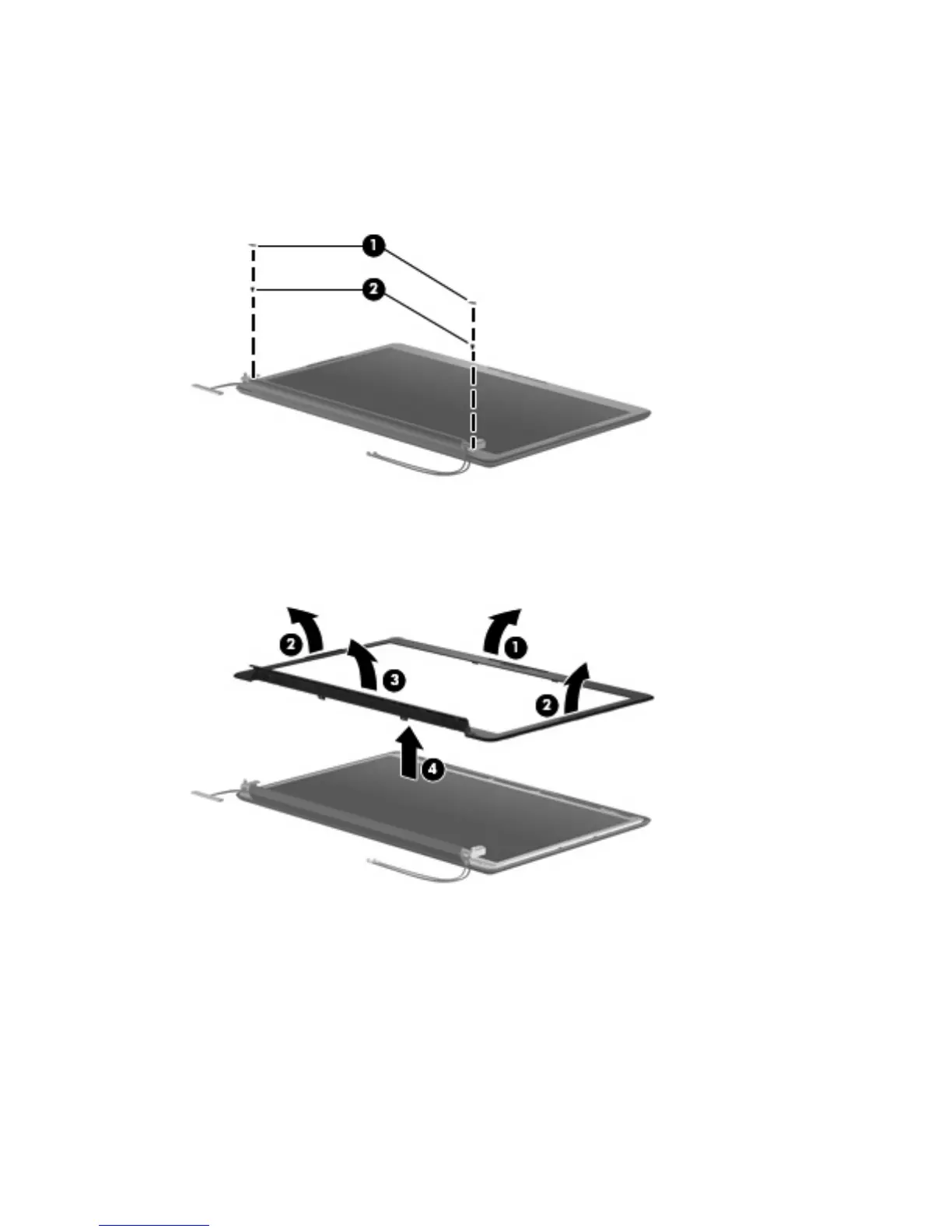

20. Flex the inside edges of the top edge (1), the left and right sides (2), and the bottom edge of the
display bezel (3) until the bezel disengages from the display enclosure.
21. Remove the display bezel (4). The display bezel is available using the spare part number
516305-001.
22. If it is necessary to replace webcam/microphone module, release the module from the display
bezel (1) as far as the webcam/microphone module cable allows.
70 Chapter 4 Removal and replacement procedures
