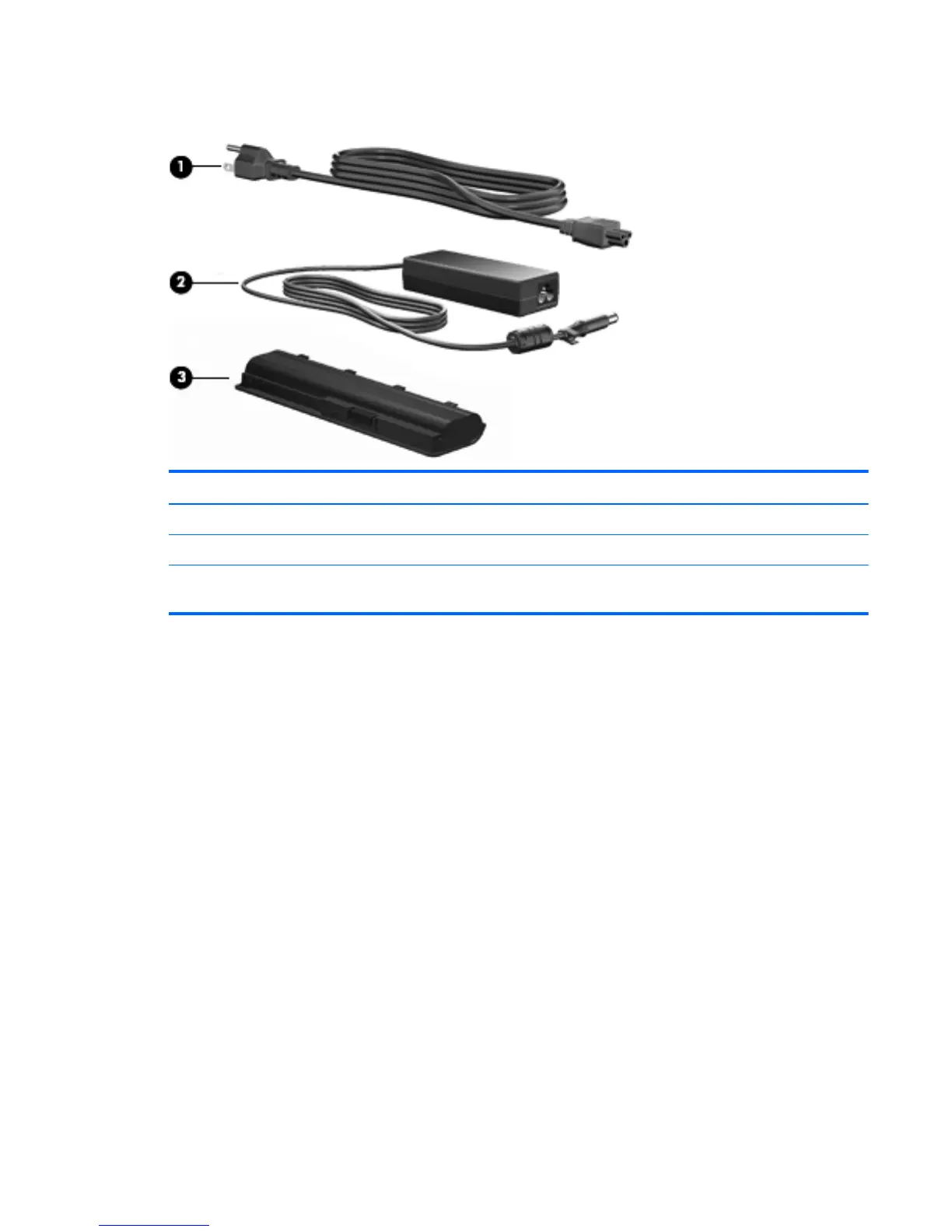

Additional hardware components
Item
Description
Function
1
Power cord*
Connects an AC adapter to an AC outlet.
2
AC adapter
Converts AC power to DC power.
3
Battery*
Provides power when the comput
er is not connected to an external
power source.
* Batteries and po
wer cords vary
in
appearance by region and country.
Additional
hardware compone
nts
17
24
26
Table of Contents
Default Chapter
5
Table of Contents
5
1 Product Description
9
2 Components
14
Top Components
14
Touchpad
14
Touchpad Buttons
15
Lights
16
Buttons and Fingerprint Reader (Select Models Only)
17
Keys
18
Front Components
19
Right-Side Components
20
Left-Side Components
21
Bottom Components
22
Display Components
23
Wireless Antennas (Select Models Only)
24
Additional Hardware Components
25
3 Illustrated Parts Catalog
26
Service Tag
26
Computer Major Components
28
Display Assembly Components
34
Flush Glass Display Assembly Spare Parts
34
Brightview Panel
35
Mass Storage Devices
37
Miscellaneous Parts
38
Sequential Part Number Listing
40
4 Removal and Replacement Procedures
47
Preliminary Replacement Requirements
47
Tools Required
47
Service Considerations
47
Plastic Parts
47
Cables and Connectors
48
Drive Handling
48
Grounding Guidelines
49
Electrostatic Discharge Damage
49
Packaging and Transporting Guidelines
50
Workstation Guidelines
50
Equipment Guidelines
51
Component Replacement Procedures
52
Service Tag
52
Computer Feet
53
Battery
54
Primary Hard Drive Cover
55
Hard Drive
56
Secondary Hard Drive
58
WLAN Module
60
RTC Battery
63
Memory Module
64
Optical Drive
65
Keyboard
66
Top Cover
69
Power Button Board
73
Display Assembly
75
System Board
85
USB Board
87
Bluetooth Module
88
Speaker Assembly
90
Optical Drive Connector
91
Subwoofer
92
Power Connector Cable
93
Fan/Heat Sink Assembly
95
Processor
99
5 Setup Utility (BIOS)
101
Starting Setup Utility
101
Using Setup Utility
102
Changing the Language of Setup Utility
102
Navigating and Selecting in Setup Utility
102
Displaying System Information
102
Restoring Default Settings in Setup Utility
103
Exiting Setup Utility
104
Setup Utility Menus
104
Main Menu
104
Security Menu
104
System Configuration Menu
105
Diagnostics Menu
105
6 Specifications
106
Computer Specifications
106
Inch, HD+ Flush Glass Antiglare Display Specifications
107
Inch, HD+ Brightview Display Specifications
108
Hard Drive Specifications
109
Blu-Ray ROM with Lightscribe DVD±R/RW Supermulti DL Drive
110
DVD±RW and CD-RW Supermulti Double-Layer Combo Drive with Lightscribe Specifications
111
System DMA Specifications
111
System Interrupt Specifications UMA
113
System Interrupt Specifications (Discrete)
114
System Interrupt Specifications (Switchable Graphics)
115
System I/O Address Specifications
116
System Memory Map Specifications
118
7 Backup and Recovery
119
Creating Recovery Discs
120
Backing up Your Information
121
Using Windows Backup and Restore
122
Using System Restore Points
122
When to Create Restore Points
122
Create a System Restore Point
122
Restore to a Previous Date and Time
123
Performing a Recovery
123
Recovering from the Recovery Discs
123
Recovering from the Dedicated Recovery Partition (Select Models Only)
123
8 Connector Pin Assignments
125
Audio-In (Microphone)
125
Audio-Out (Headphone)
125
External Monitor
126
Hdmi
127
Network)
128
Universal Serial Bus
128
9 Power Cord Set Requirements
129
Requirements for All Countries or Regions
129
Requirements for Specific Countries or Regions
130
10 Recycling
131
Battery
131
4
