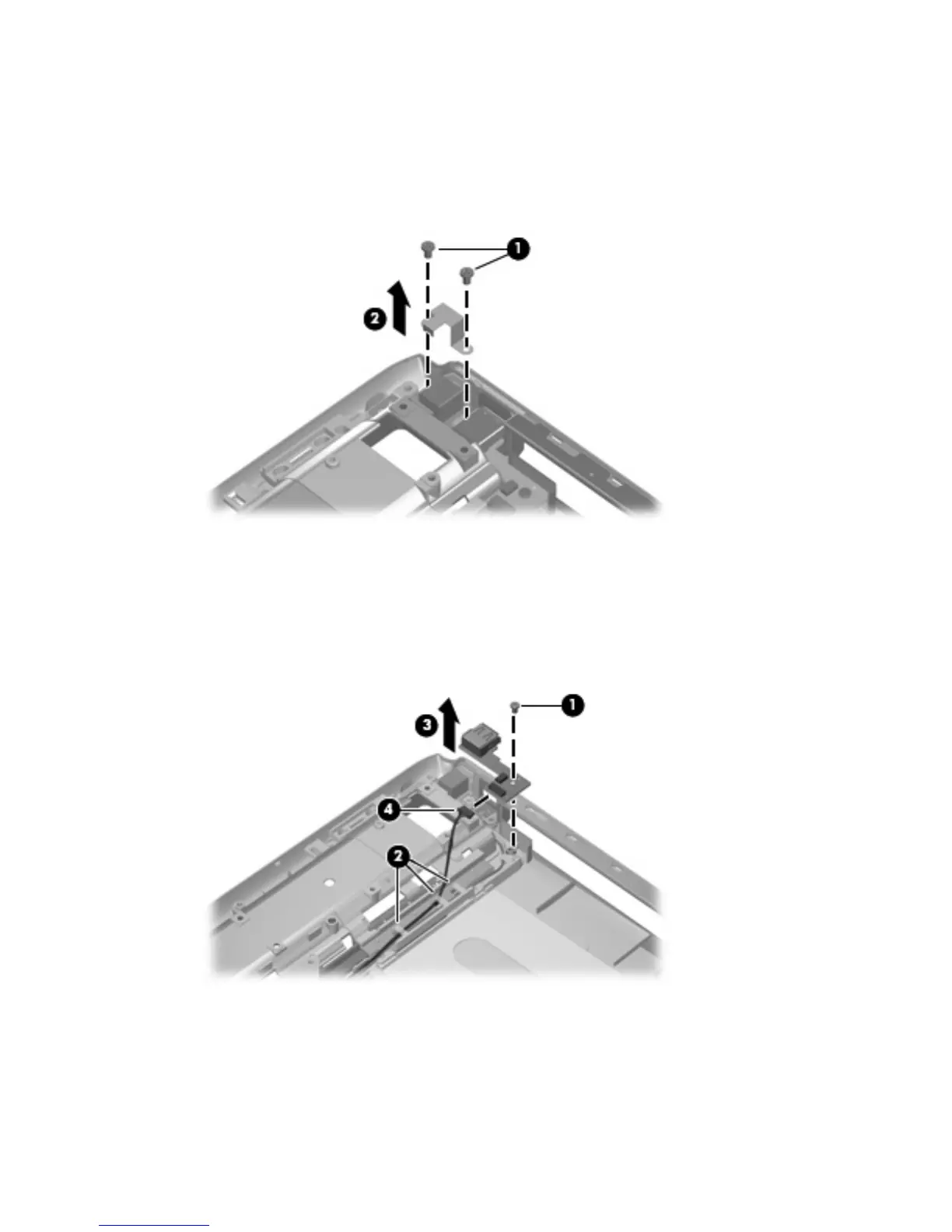

Remove the rear USB board:

1. Remove the two silver Phillips PM2.5×5.0 screws (1) that secure the power connector bracket to the

computer.

2. Remove the power connector bracket (2). The power connector bracket is available using spare part

number 432985-001.

3. Remove the silver Phillips PM2.5×5.0 screw (1) that secures the rear USB board to the base

enclosure.

4. Remove the rear USB board cable from the clips (2) built into the base enclosure.

5. Release the rear USB board (3) from the base enclosure as far as the rear USB board cable allows.

6. Disconnect the rear USB board cable (4) from the rear USB board.

Remove the rear USB board.

Reverse this procedure to install the rear USB board.

Component replacement procedures 91
