c.

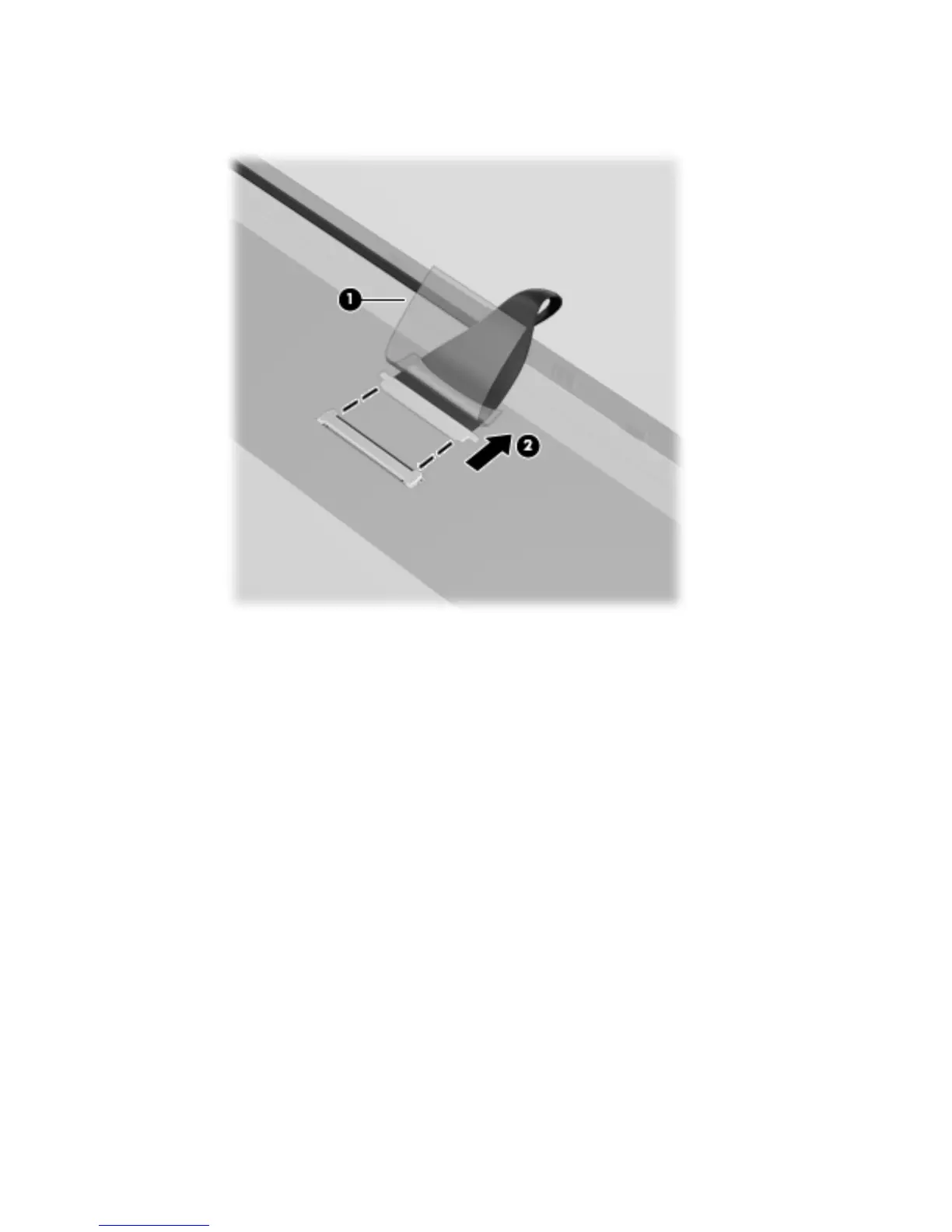

Release the adhesive strip (1) that secures the display panel cable to the display panel, and
then disconnect the display panel cable (2) from the display panel.
d. Remove the display panel. The display panel is available using spare part number
641395-001.
9. If it is necessary to replace the display hinges:
a. Remove the four Phillips PM2.0×3.0 screws (1) that secure the display hinges to
the display panel.
98 Chapter 4 Removal and replacement procedures
